2026 Kawasaki KLX®110R L Crankshaft Diagram

← All diagrams

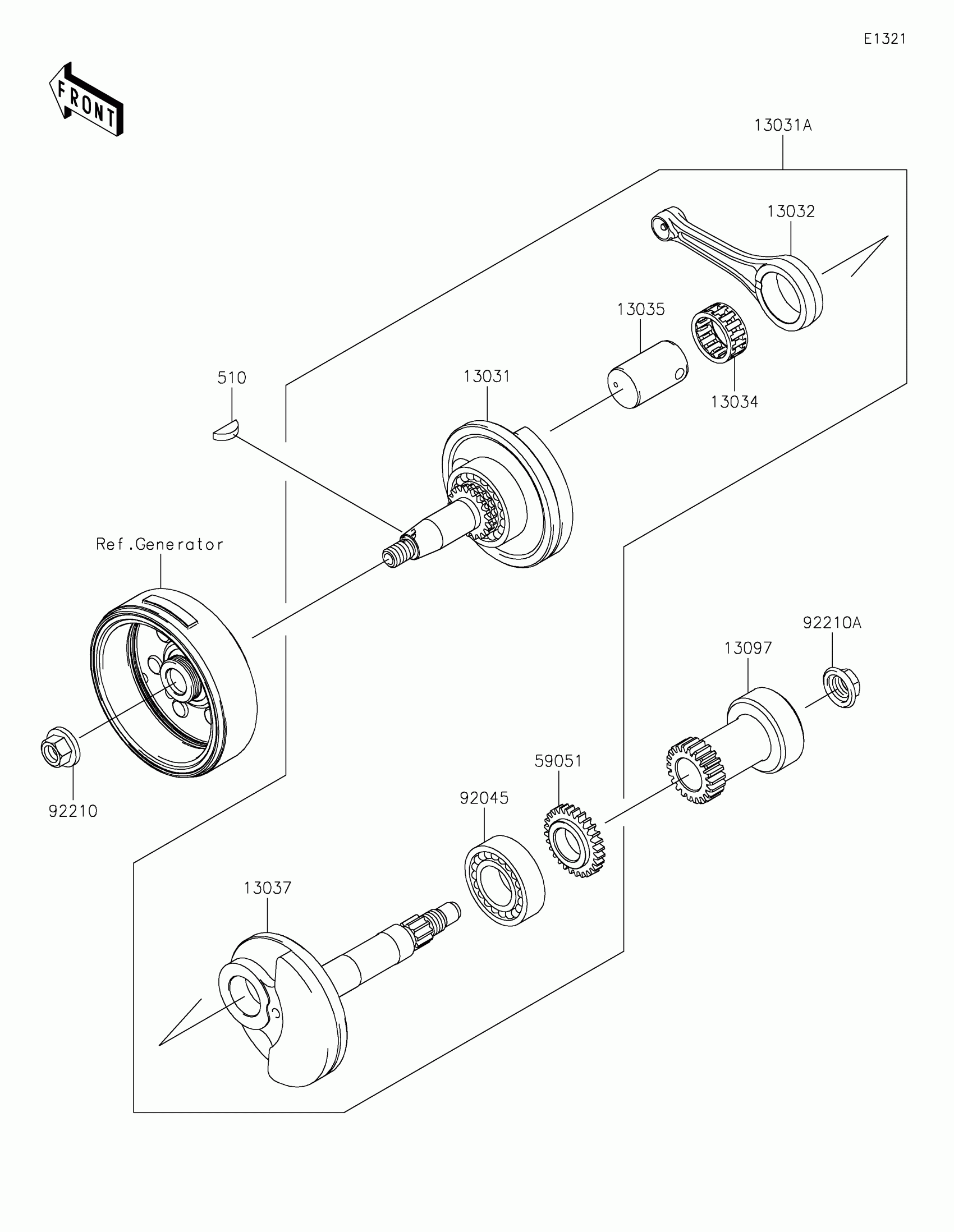

Find the part on the Crankshaft diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP,LH

13031-0860

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-0862

1
Out of stock

13032

ROD-CONNECTING

13032-0749

1
Out of stock

13034

BEARING-BIG END,KT 263314EGC06

13034-0010

1
Out of stock

13035

PIN-CRANK

13035-0030

1
Out of stock

13037

CRANKSHAFT,RH

13037-0128

1
Out of stock

13097

GEAR-PRIMARY SPUR

13097-0120

1
Out of stock

59051

GEAR-SPUR

59051-1402

1
Out of stock

92045

BEARING-BALL,TMB205CJR2C2

92045-0771

1
Out of stock

92210

NUT,12MM

92210-0176

1
Out of stock

92210A

NUT,14MM

92210-1374

1
Out of stock

510

KEY-WOODRUFF

510A3200

1
Out of stock
