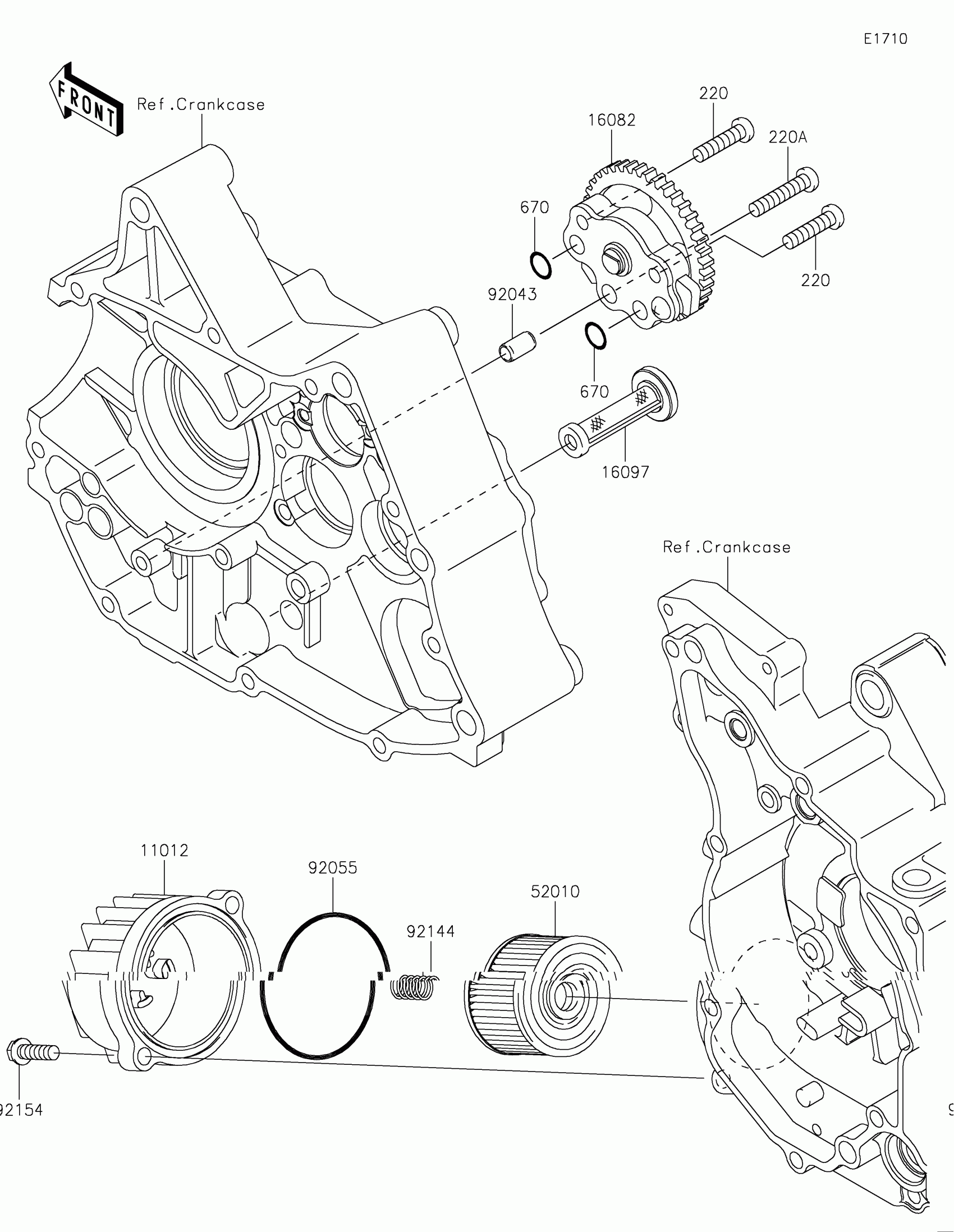

Find the part on the Oil Pump diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1980

1
Out of stock

16082

PUMP-ASSY-OIL

16082-0010

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1071

1
Out of stock

52010

ELEMENT-OIL FILTER

52010-0552

1
Out of stock

92043

PIN,6.2X8X14

92043-1741

1
Out of stock

92055

RING-O,59.6X2.4

92055-3018

1
Out of stock

92144

SPRING

92144-1892

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-7209

1
Out of stock

220

SCREW-PAN-CROS,6X25

220AA0625

1
Out of stock

220A

SCREW-PAN-CROS,6X30

220AA0630

1
Out of stock

670

O RING,9.8X1.9

670B1510

1
Out of stock
