2026 Kawasaki KLX®110R L Crankcase Diagram

← All diagrams

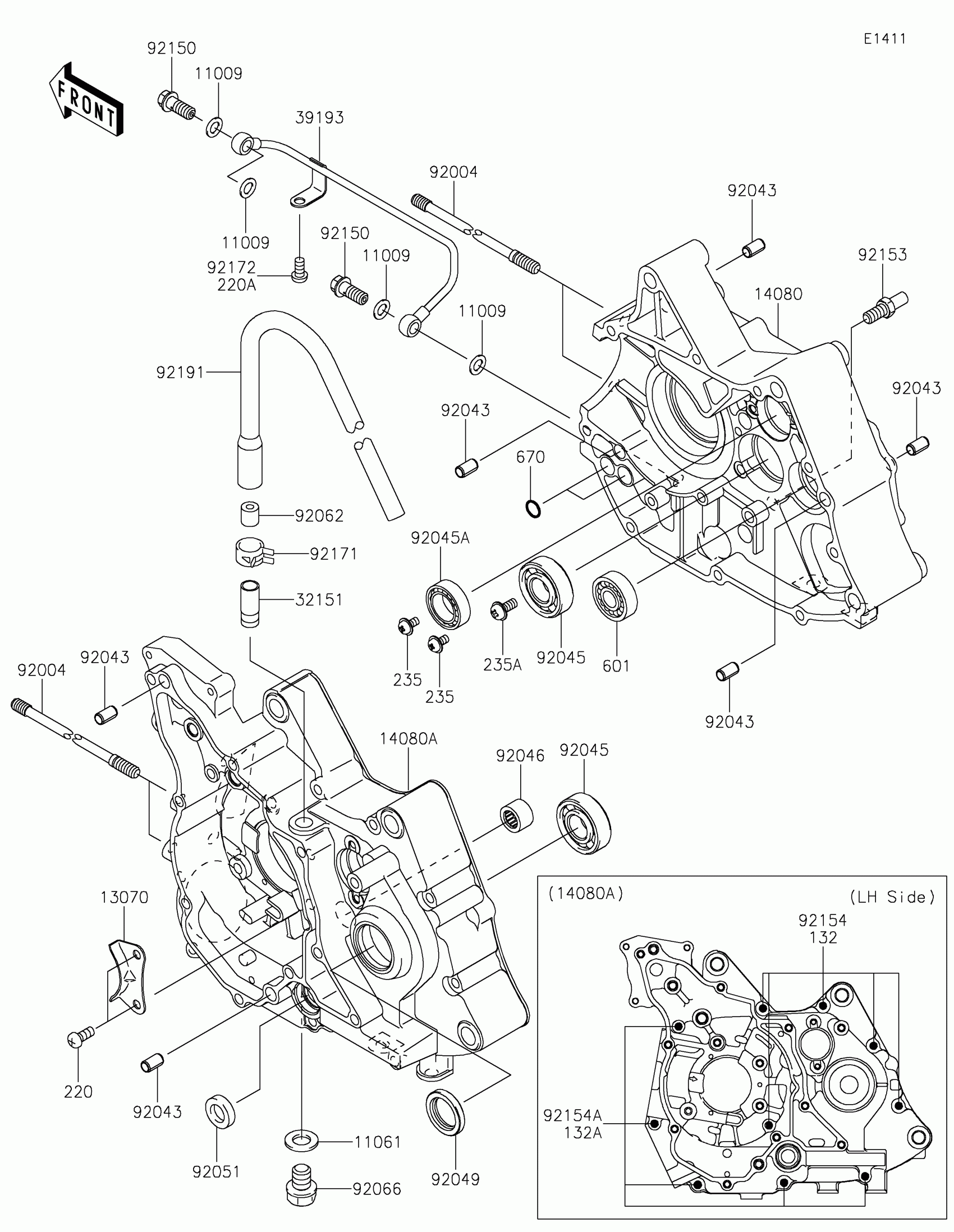

Find the part on the Crankcase diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11061

GASKET,DRAIN PLUG

11061-0421

1

$4.66

In stock

13070

GUIDE

13070-1319

1

$0.95

In stock

14080

CRANKCASE,RH

14080-0080

1

$119.84

In stock

14080A

CRANKCASE,LH

14080-0705

1

$107.38

In stock

32151

PIPE

32151-1961

1

$5.58

In stock

39193

PIPE-OIL

39193-1042

1

$51.43

In stock

92004

STUD,8X192

92004-0030

1
Out of stock

92043

PIN,6.2X8X14

92043-1741

1

$2.95

In stock

92045

1

$11.12

In stock

92045A

BEARING-BALL,6804

92045-1171

1

$30.44

In stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL

92049-1429

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92062

NOZZLE,5X11.5X12

92062-1090

1

$1.59

In stock

92066

1

$4.42

In stock

92150

BOLT,BANJO,8X20

92150-1556

1

$4.55

In stock

92153

BOLT,8X15.5

92153-1823

1

$5.31

In stock

92154

BOLT,FLANGED,6X50

92154-7213

1

$4.24

In stock

92154A

BOLT,FLANGED,6X75

92154-7214

1

$5.22

In stock

92171

CLAMP

92171-1055

1

$3.85

In stock

92172

SCREW,6X12

92172-1500

1

$2.15

In stock

92191

TUBE,BREATHER

92191-1724

1
Out of stock

220

1

$1.32

In stock

235

1

$2.92

In stock

235A

1

$3.75

In stock

601

BEARING-BALL

601A6201

1

$8.46

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock
