2026 Kawasaki KLX®110R L Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

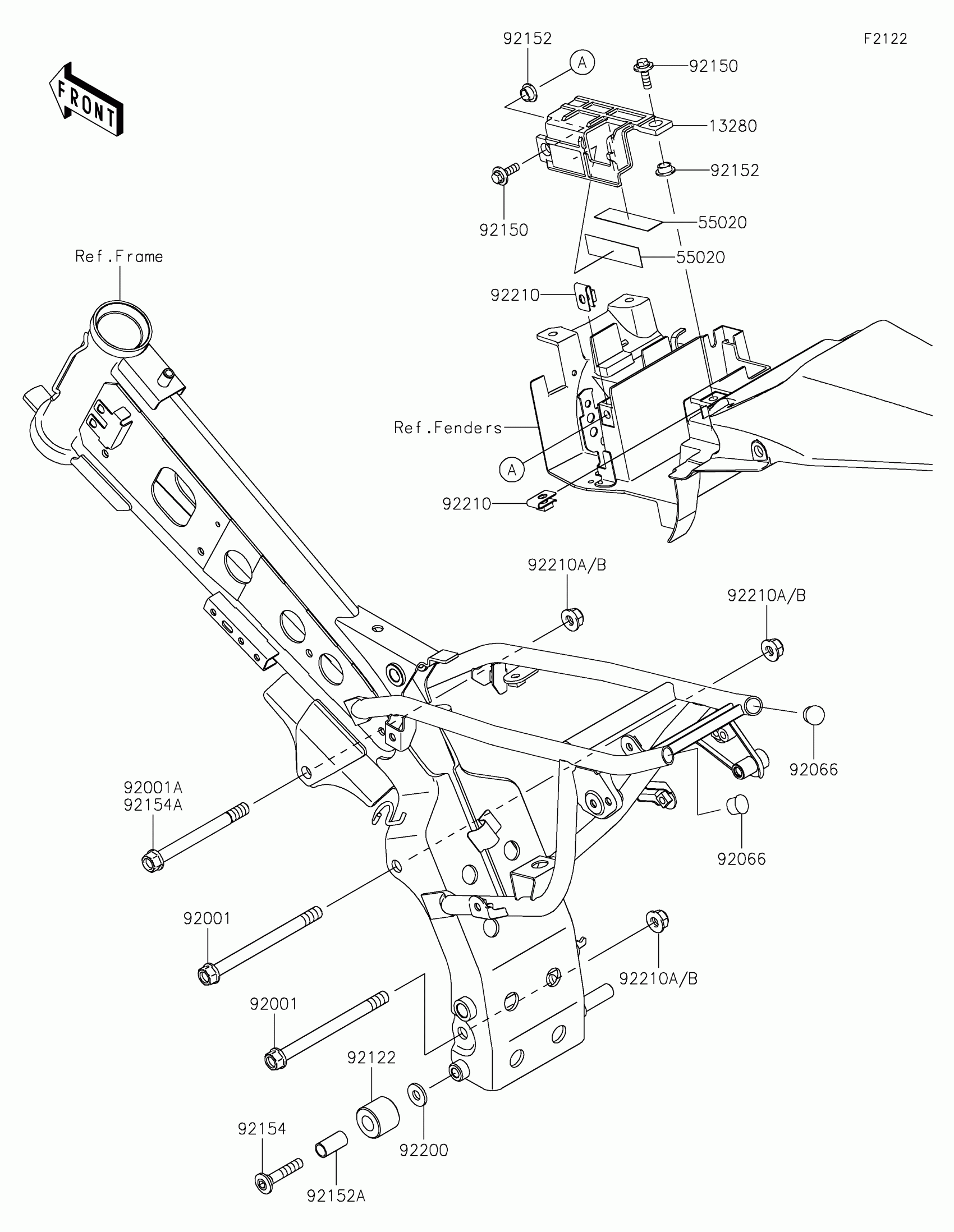

2026 Kawasaki KLX®110R L Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,BATTERY

13280-0384

1

$9.34

In stock

55020

GUARD

55020-0527

1

$7.86

In stock

92001

BOLT,FLANGED,10X125

92001-1720

1

$9.03

In stock

92066

PLUG

92066-1081

1

$6.83

In stock

92122

ROLLER,CHAIN GUIDE

92122-0023

1

$9.96

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-0789

1

$3.39

In stock

92152A

COLLAR,10.3X12.7X25

92152-0831

1

$3.12

In stock

92154

BOLT,SOCKET,8X42

92154-0309

1

$3.39

In stock

92154A

BOLT,FLANGED,10X105

92154-4187

1

$8.37

In stock

92200

WASHER,8.5X20X2.3

92200-1055

1
Out of stock

92210

NUT,6MM

92210-0218

1
Out of stock

92210B

1

$11.81

In stock
