2014 Kawasaki KLX®110L Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

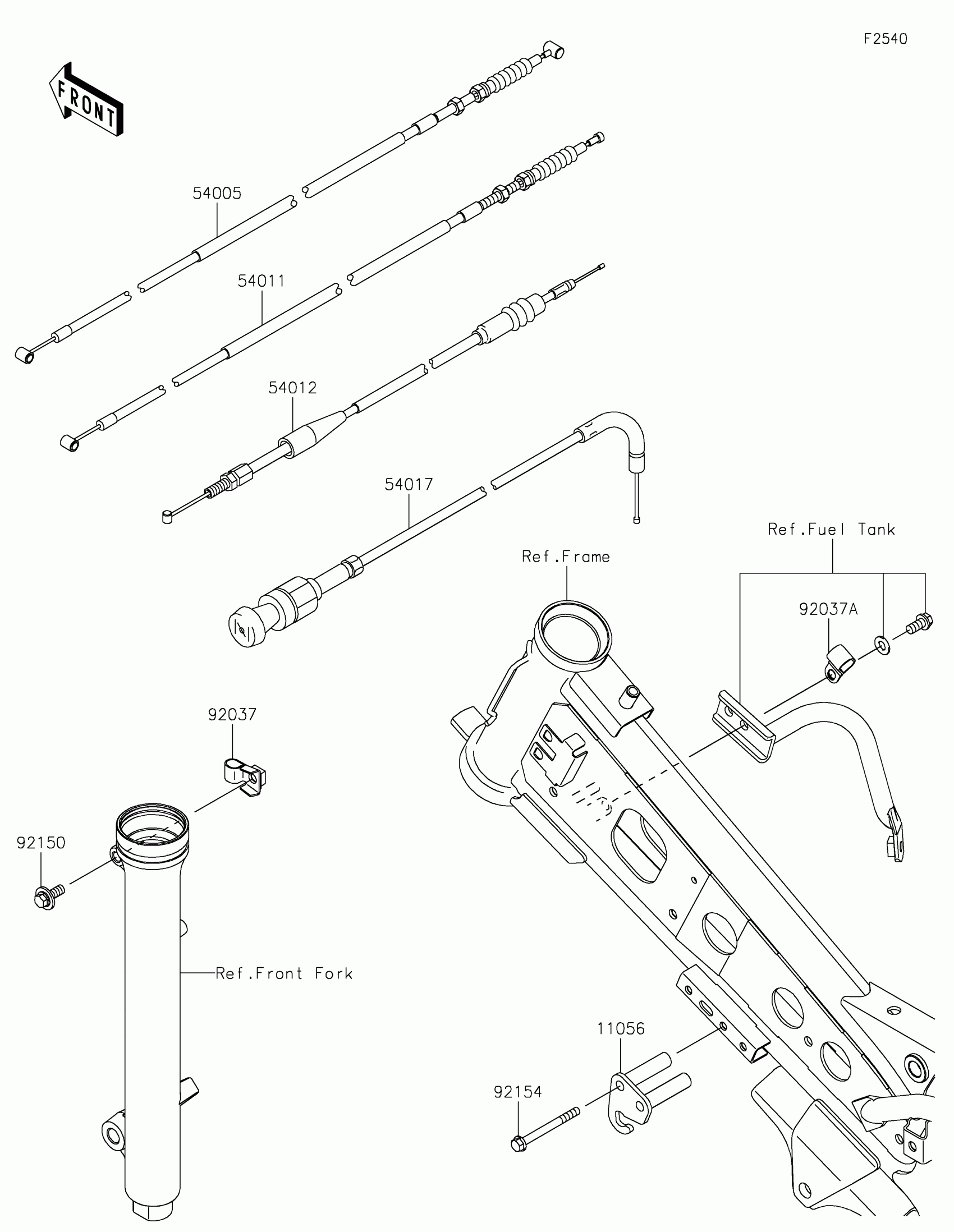

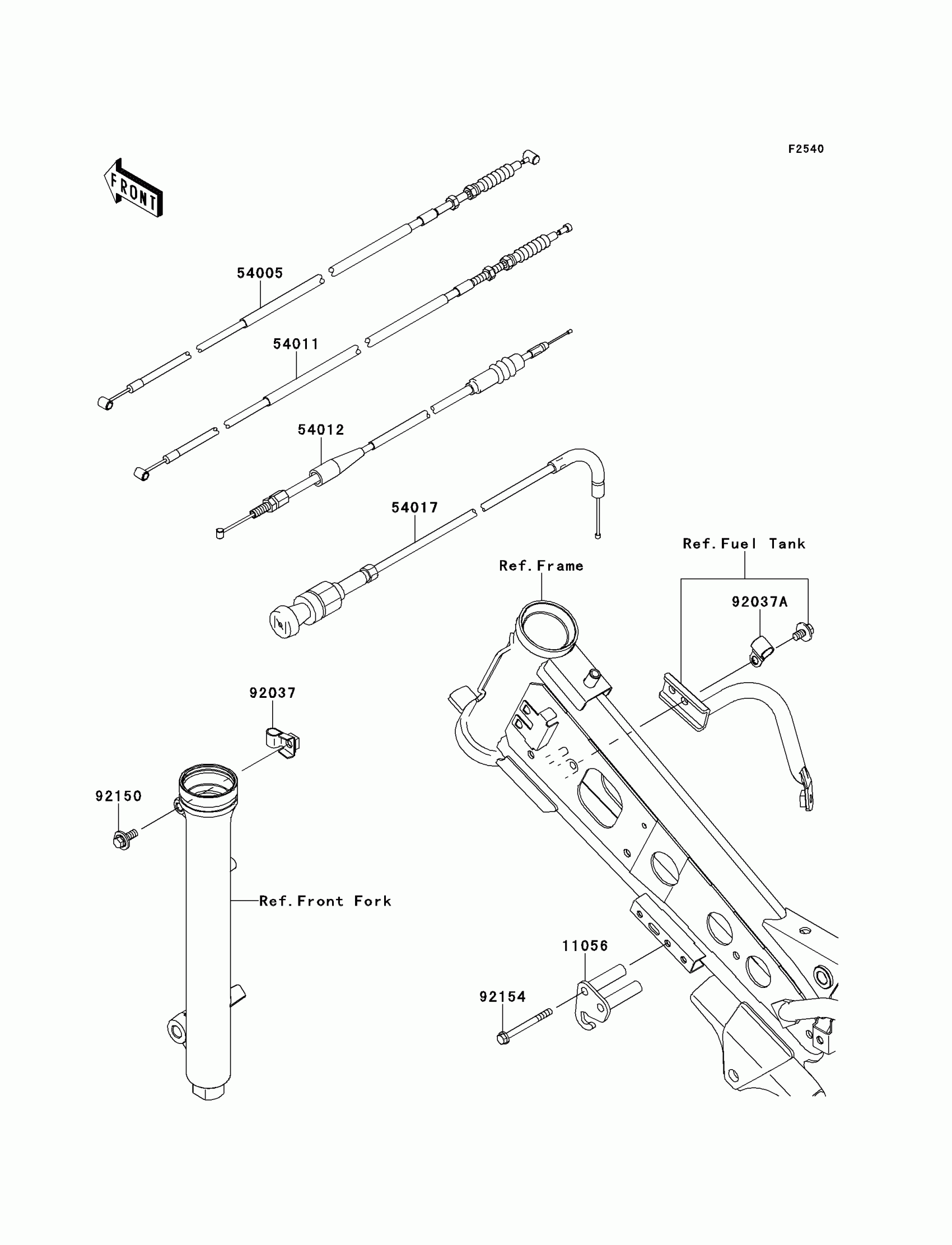

2014 Kawasaki KLX®110L Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CHOKE

11056-0151

1

$16.46

In stock

54005

CABLE-BRAKE

54005-0027

1

$23.31

In stock

54011

CABLE-CLUTCH

54011-0103

1

$30.26

In stock

54012

CABLE-THROTTLE

54012-0287

1

$21.45

In stock

54017

CABLE-STARTER

54017-1218

1

$20.55

In stock

92037

CLAMP,BRAKE CABLE

92037-1353

1

$11.22

In stock

92037A

CLAMP

92037-1608

1

$6.44

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92154

BOLT,FLANGED,5X53

92154-0374

1

$3.12

In stock
