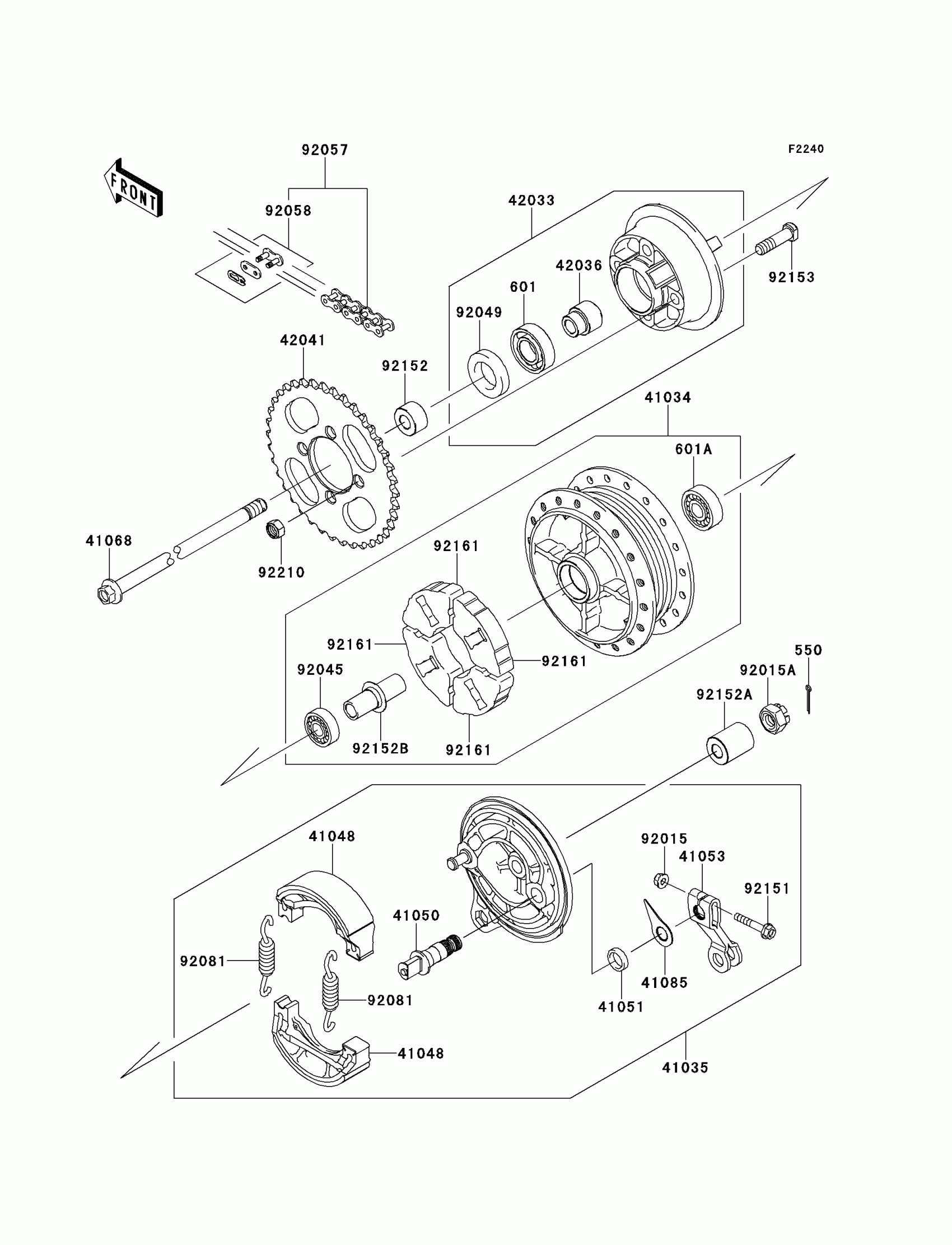

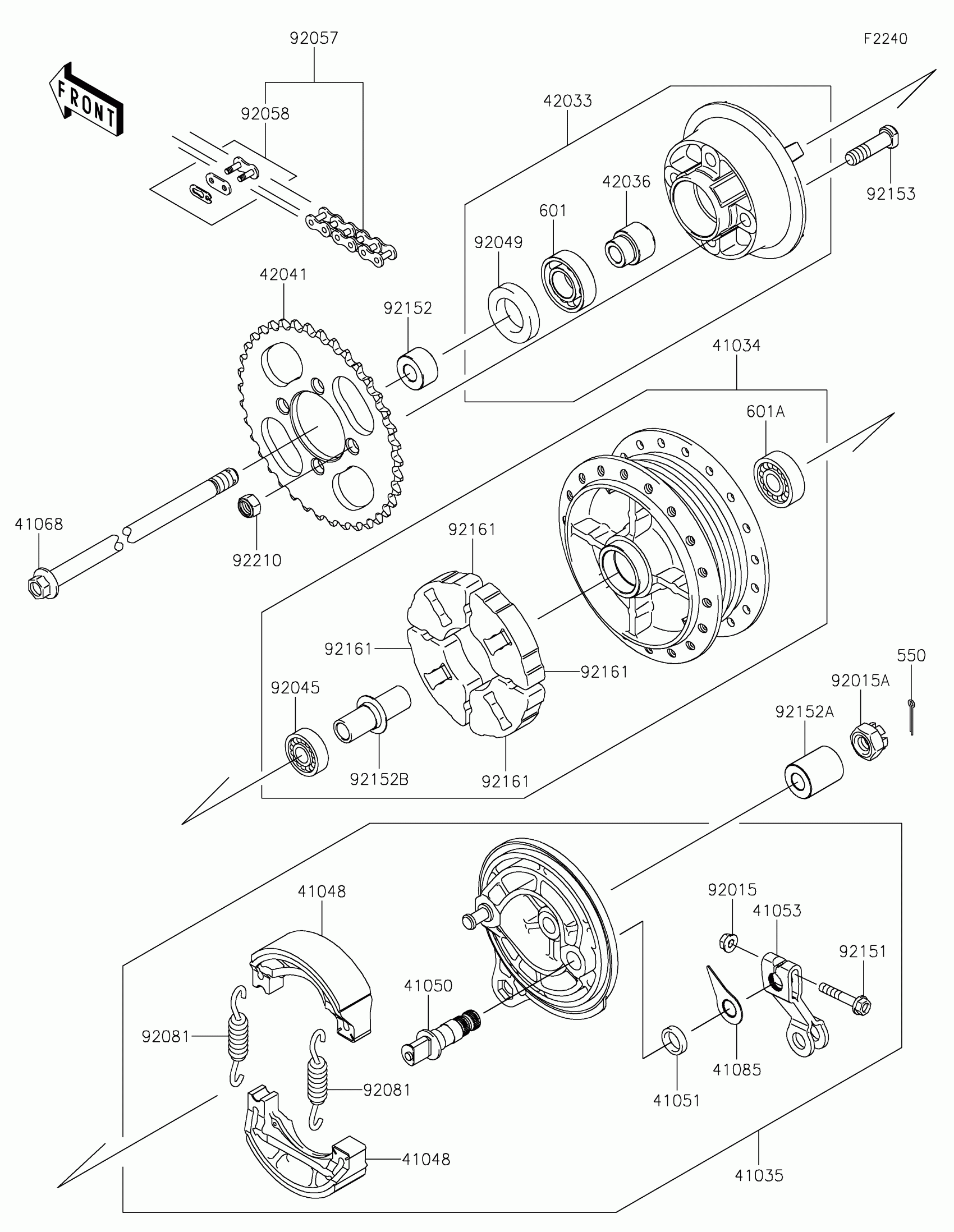

2014 Kawasaki KLX®110L Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

1

$2.15

In stock

601

1

$33.92

In stock

601A

1

$30.00

In stock

41034

1

$71.92

In stock

41035

PANEL-ASSY-BRAKE,RR

41035-0084

1

$153.73

In stock

41048

SHOE-BRAKE

41048-1141

1

$20.10

In stock

41050

CAM-BRAKE

41050-1082

1

$6.39

In stock

41051

SEAL,BRAKE CAM

41051-001

1

$3.39

In stock

41053

LEVER-BRAKE CAM

41053-0021

1

$11.07

In stock

41068

AXLE,RR

41068-0016

1

$24.12

In stock

41085

INDICATOR

41085-1085

1

$20.42

In stock

42033

1

$61.70

In stock

42036

1

$7.14

In stock

42041

SPROCKET-HUB,38T

42041-0082

1

$35.53

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,CASTLE,12MM

92015-1870

1

$5.04

In stock

92045

1

$11.08

In stock

92049

SEAL-OIL,SC26X42X8

92049-1490

1
Out of stock

92057

1

$29.97

In stock

92058

JOINT-CHAIN,DRIVE

92058-0006

1

$9.93

In stock

92081

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

92151

BOLT,FLANGED,6X34

92151-1209

1

$2.95

In stock

92152

1

$7.48

In stock

92152A

1

$9.36

In stock

92152B

1

$9.36

In stock

92153

BOLT,10X36

92153-1120

1
Out of stock

92161

DAMPER,RR HUB SHOCK

92161-0084

1

$7.45

In stock

92210

NUT,LOCK,10MM

92210-1351

1
Out of stock
