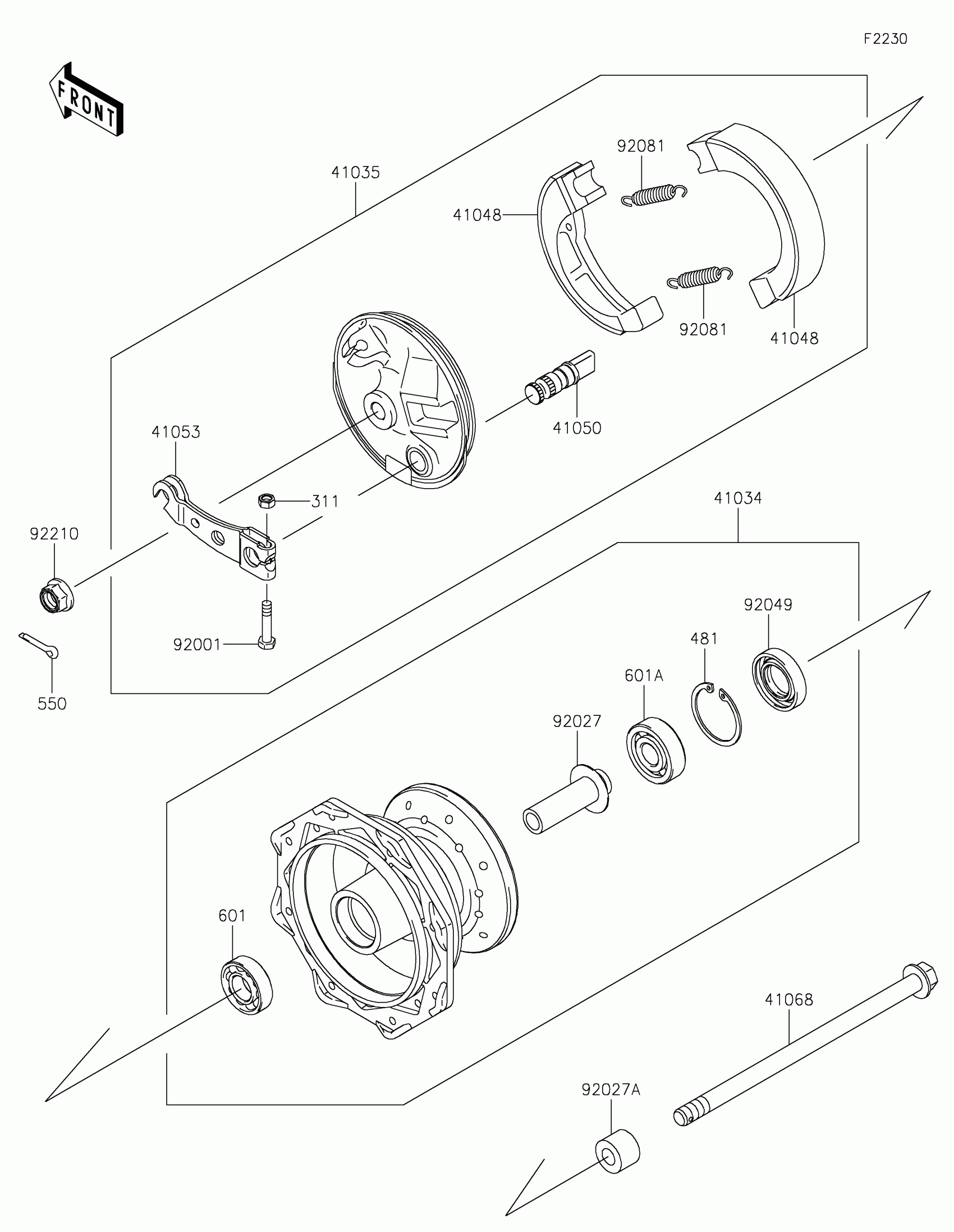

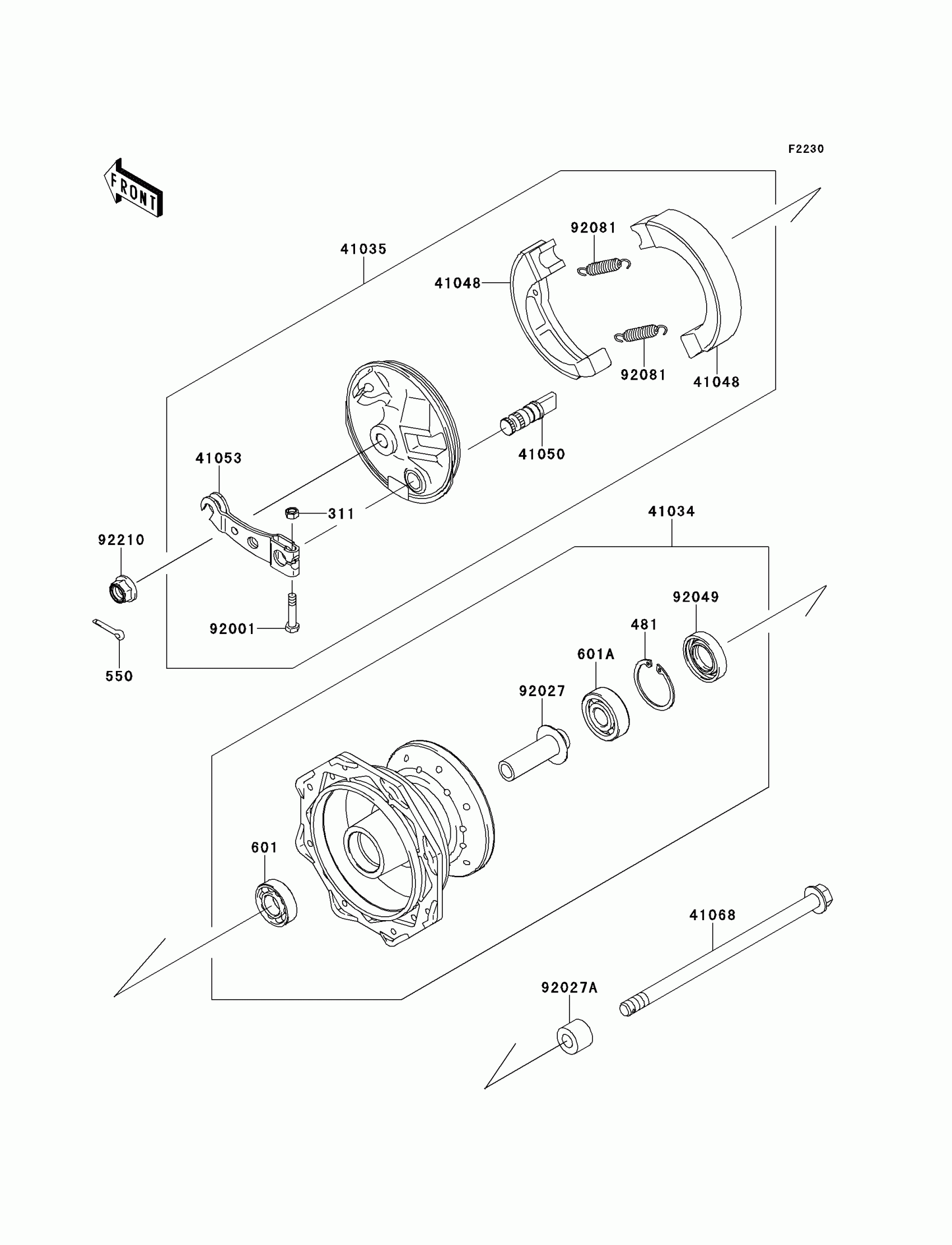

2014 Kawasaki KLX®110L Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,5MM

311BA0500

1

$3.85

In stock

481

1

$1.64

In stock

550

1

$2.15

In stock

601

1

$17.83

In stock

601A

1

$23.41

In stock

41034

1

$253.71

In stock

41035

PANEL-ASSY-BRAKE,FR

41035-1543

1

$191.50

In stock

41048

SHOE-BRAKE

41048-1083

1

$20.41

In stock

41050

CAM-BRAKE

41050-1031

1

$24.15

In stock

41053

LEVER-BRAKE CAM,FR

41053-1027

1

$48.41

In stock

41068

AXLE,FR

41068-0015

1

$20.41

In stock

92001

BOLT,5X25

92001-1695

1

$4.17

In stock

92027

1

$13.51

In stock

92027A

1

$11.26

In stock

92049

SEAL-OIL,DD20X35X7

92049-0052

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1564

1

$4.34

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
