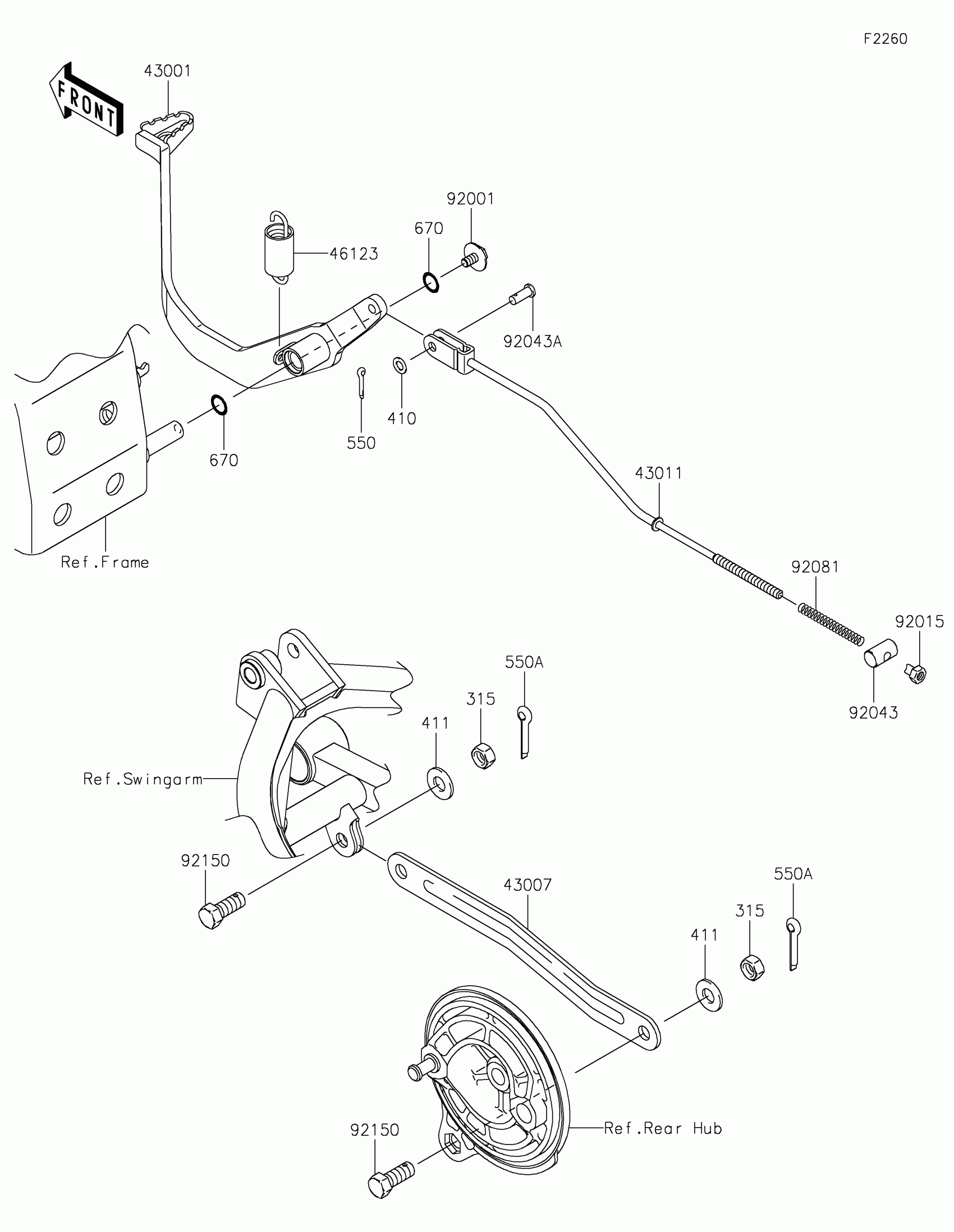

Find the part on the Brake Pedal diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315BA1000

1

$1.44

In stock

410

WASHER-PLAIN-SMALL

410AA0600

1

$1.19

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock

550A

PIN-COTTER,2.0X20

550AA2020

1

$0.98

In stock

670

O RING,12MM

670B2012

1

$2.58

In stock

43001

LEVER-BRAKE,PEDAL

43001-0122

1

$44.61

In stock

43007

ROD-TORQUE

43007-0015

1

$49.85

In stock

43011

ROD-BRAKE

43011-0010

1

$12.47

In stock

46123

1

$6.03

In stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92043

PIN,BRAKE ROD

92043-0147

1

$5.06

In stock

92043A

PIN,6X12.8

92043-1542

1

$0.76

In stock

92081

SPRING,BRAKE ROD

92081-1688

1

$3.69

In stock

92150

BOLT,10X25

92150-1873

1

$4.20

In stock
