2014 Kawasaki KLX®110L Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

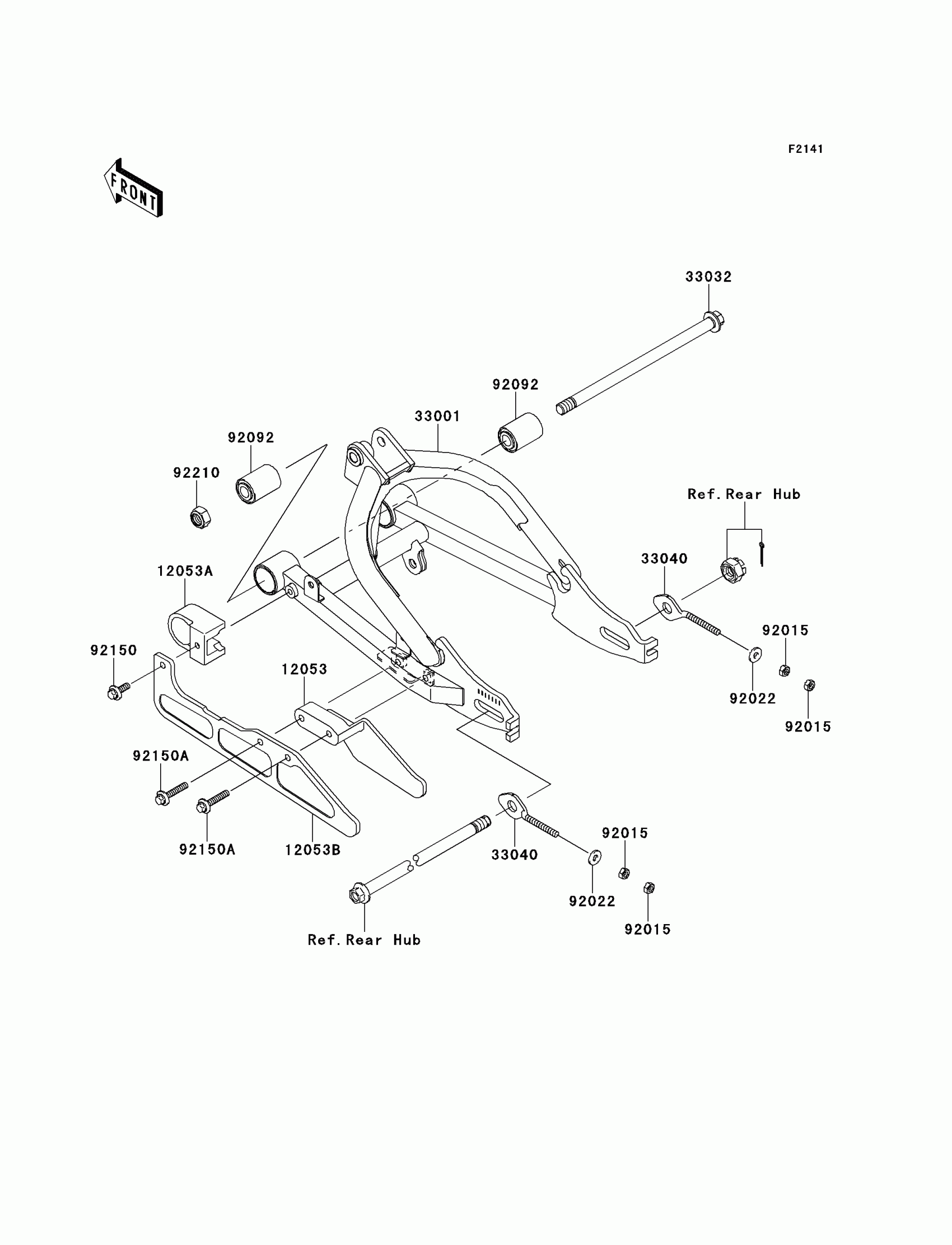

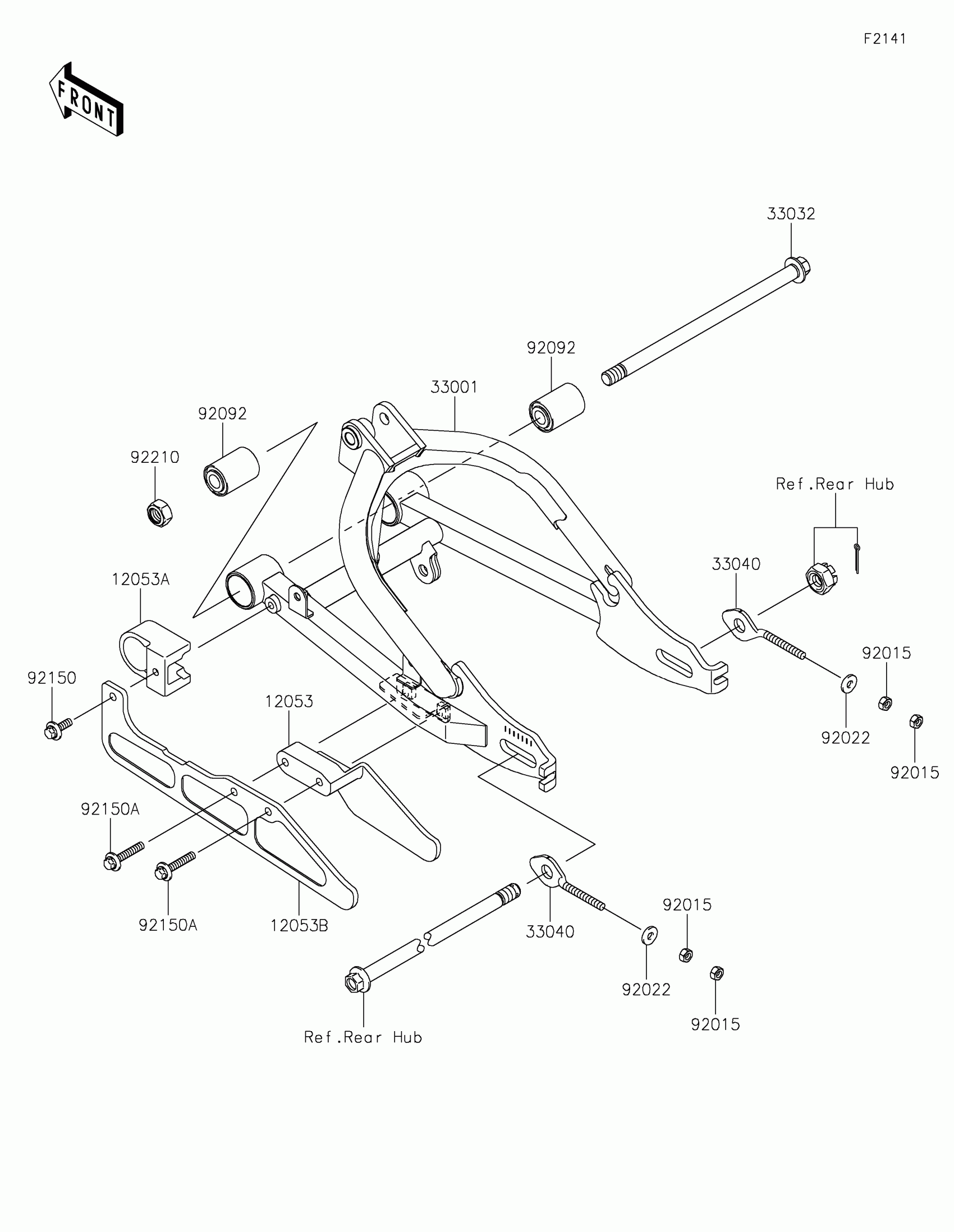

2014 Kawasaki KLX®110L Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

1

$11.08

In stock

12053A

GUIDE-CHAIN,FR

12053-1459

1

$11.53

In stock

12053B

1

$12.86

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-0200-458

1

$271.18

In stock

33032

SHAFT-SWING ARM

33032-0035

1

$28.82

In stock

33040

ADJUSTER-CHAIN

33040-1006

1

$7.32

In stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92022

WASHER,6.5X16X2

92022-1565

1

$3.12

In stock

92092

BUSHING-RUBBER

92092-1088

1

$6.12

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,FLANGED,6X35

92150-1527

1

$3.43

In stock

92210

NUT,LOCK,12MM

92210-1373

1
Out of stock
← Suspension/shock Absorber Wheels/tires →

More Suspension & Wheels diagrams
