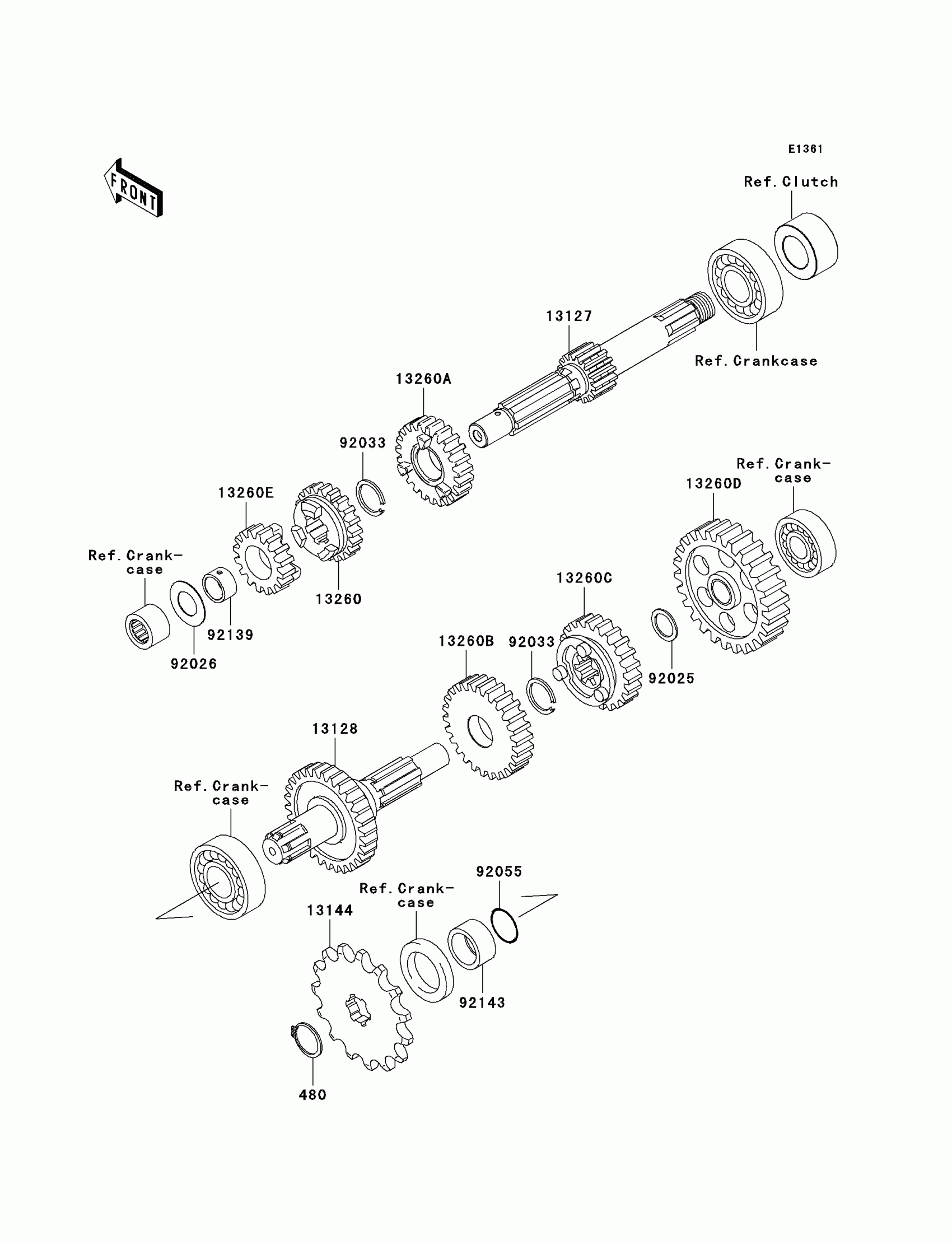

Find the part on the Transmission diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

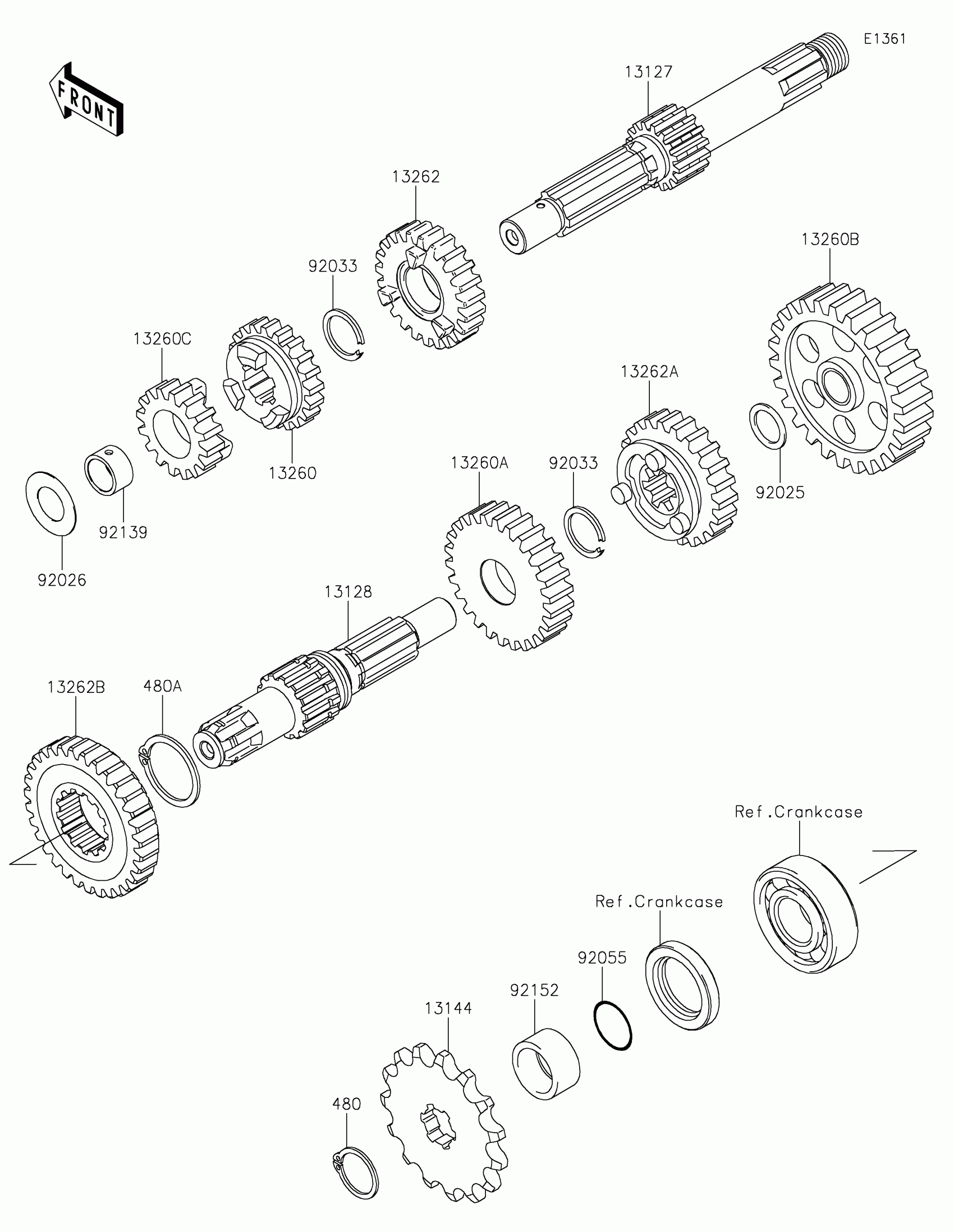

2009 Kawasaki KLX®110 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

1

$0.64

In stock

13127

1

$131.72

In stock

13128

1

$140.24

In stock

13144

SPROCKET-OUTPUT,14T

13144-1044

1

$13.93

In stock

13260

GEAR,INPUT 3RD,20T

13260-1839

1
Out of stock

13260A

GEAR,INPUT TOP,23T

13260-1840

1
Out of stock

13260B

GEAR,OUTPUT 3RD,27T

13260-1842

1
Out of stock

13260C

GEAR,OUTPUT TOP,25T

13260-1843

1
Out of stock

13260D

GEAR,OUTPUT LOW,36T

13260-1862

1
Out of stock

13260E

GEAR,INPUT 2ND,16T

13260-1986

1
Out of stock

92025

SHIM

92025-1280

1
Out of stock

92026

SPACER

92026-1091

1

$3.85

In stock

92033

RING-SNAP,17MM

92033-1060

1

$3.39

In stock

92055

RING-O,16.8MM

92055-1235

1

$4.37

In stock

92139

BUSHING

92139-1102

1

$12.22

In stock

92143

COLLAR,SPROCKET

92143-1680

1

$10.24

In stock
