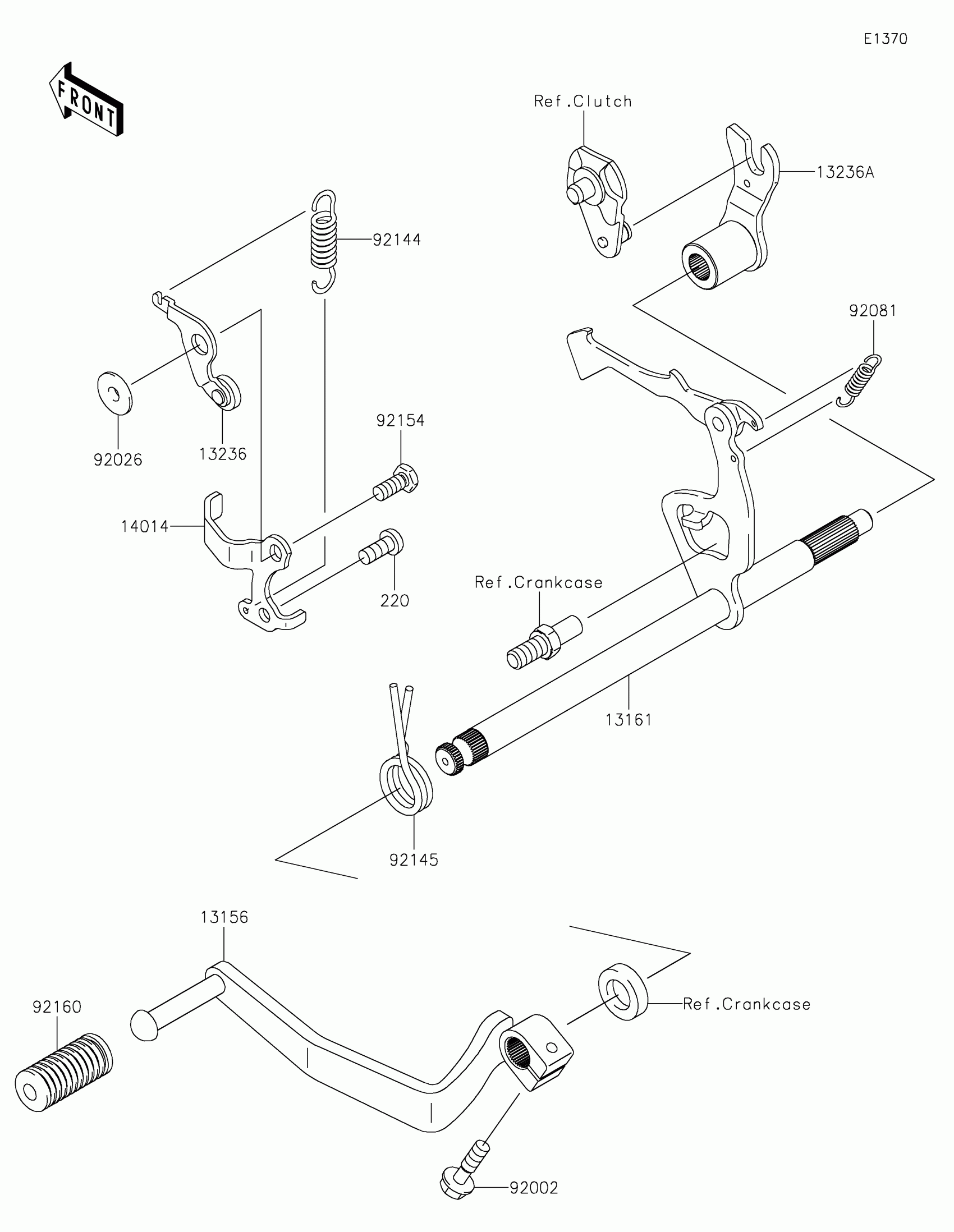

Kawasaki KLX®110 Gear Change Mechanism Diagram

Description

Price

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

13156

LEVER-CHANGE,PEDAL

13156-0039

$58.87

13161

LEVER-COMP-CHANGE SHAFT

13161-0019

$79.71

13236

LEVER-COMP,POSITION

13236-1256

$7.02

13236A

LEVER-COMP

13236-1288

$6.52

14014

PLATE-POSITION

14014-1118

Unavailable

92002

BOLT,6X20

92002-1237

$3.29

92026

SPACER

92026-1217

$4.18

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92144

SPRING,CHANGE SHAFT RETURN

92144-1107

$8.56

92144A

SPRING

92144-1590

$3.68

92153

BOLT,6X14

92153-0571

$1.02

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
