2009 Kawasaki KLX®110 Brake Pedal Diagram

← All diagrams

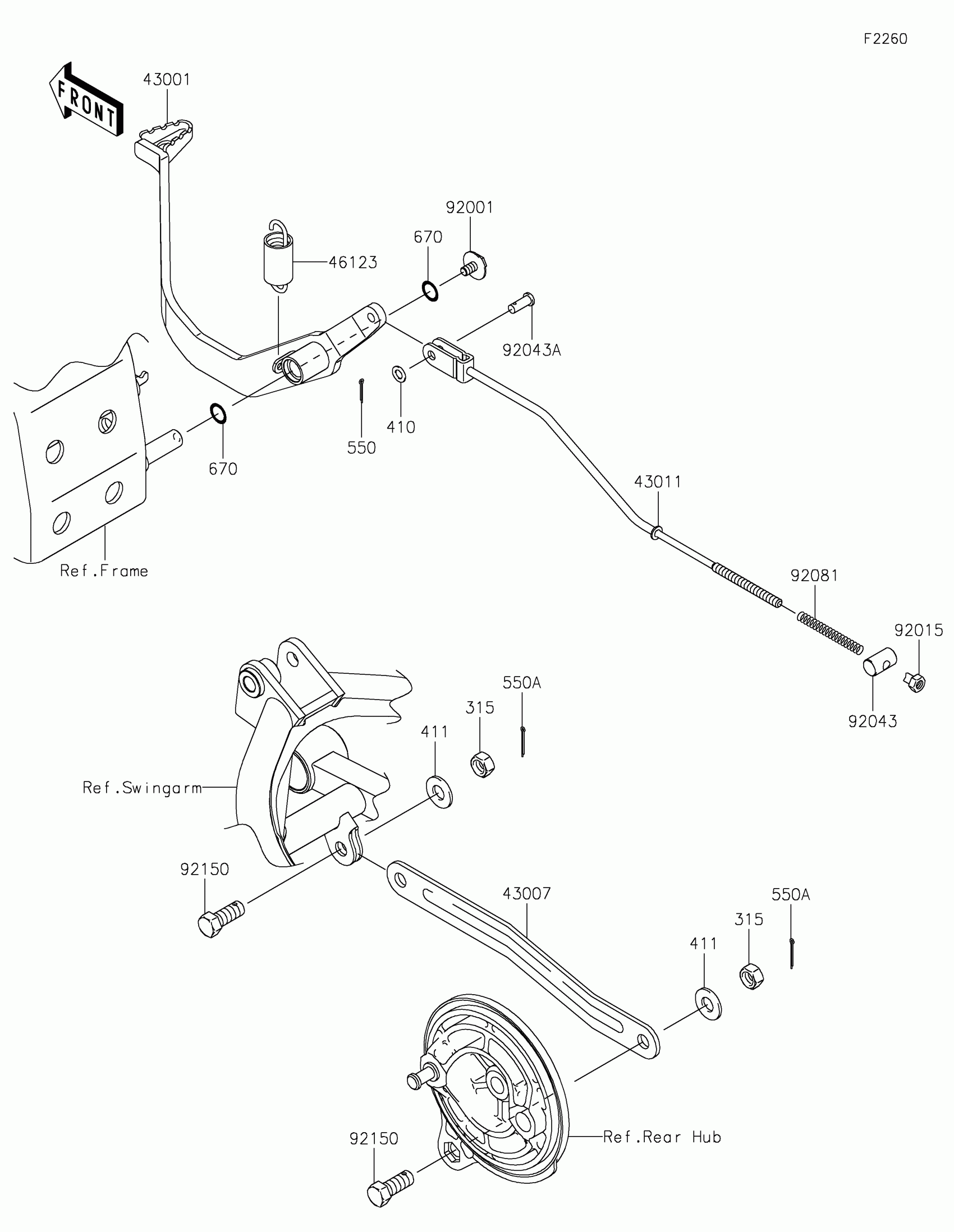

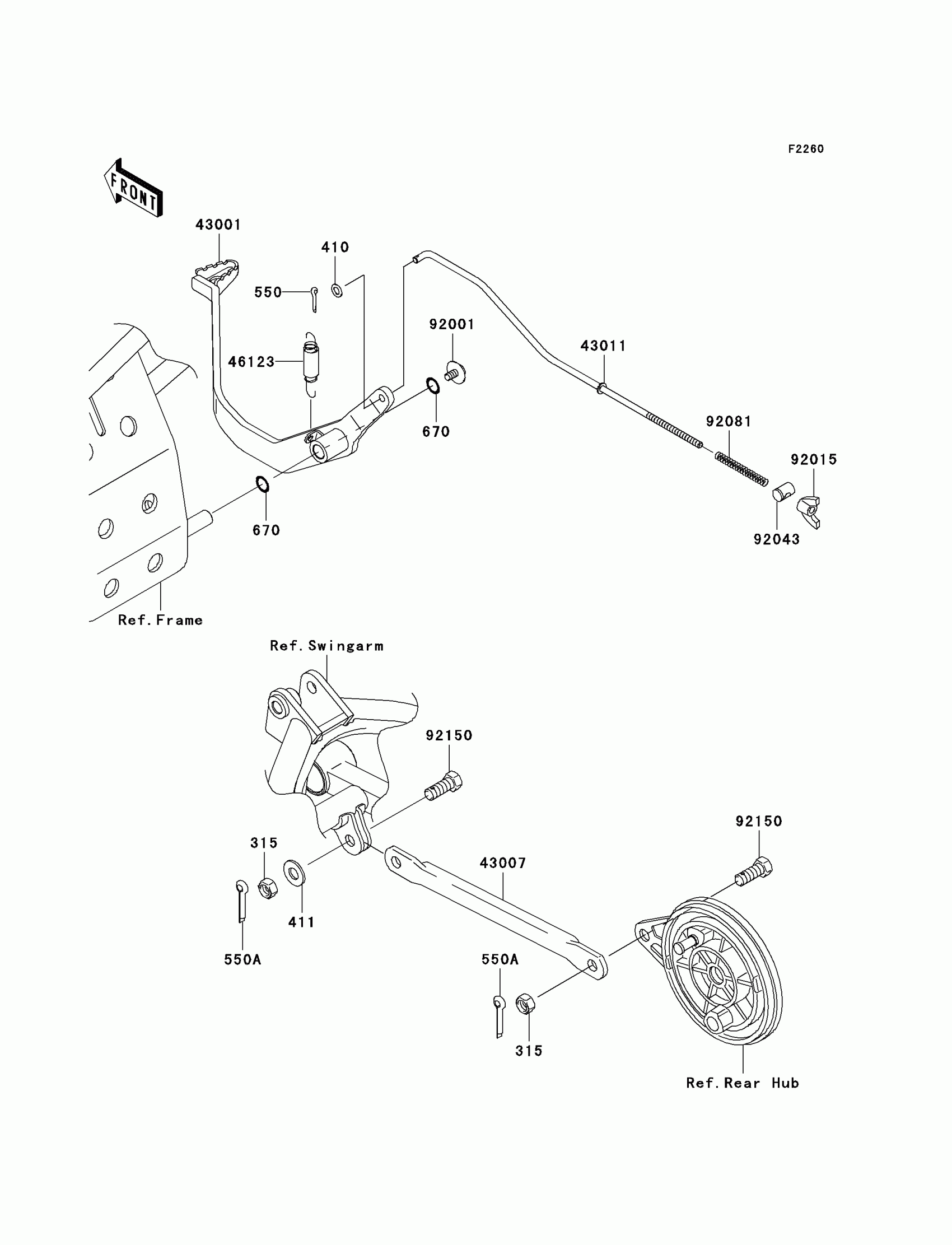

Find the part on the Brake Pedal diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315BA1000

1

$1.44

In stock

410

WASHER-PLAIN-SMALL

410AA0600

1

$1.19

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock

550A

PIN-COTTER,2.0X20

550AA2020

1

$0.98

In stock

670

O RING,12MM

670B2012

1

$2.58

In stock

43001

LEVER-BRAKE,PEDAL

43001-1445

1

$59.14

In stock

43007

ROD-TORQUE

43007-1203

1

$54.06

In stock

43011

ROD-BRAKE

43011-1186

1

$23.46

In stock

46123

1

$6.03

In stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92015

NUT,WING,6MM

92015-4004

1

$5.81

In stock

92043

PIN,BRAKE ROD

92043-0147

1

$5.06

In stock

92081

SPRING,BRAKE ROD

92081-1688

1

$3.69

In stock

92150

BOLT,10X25

92150-1873

1

$4.20

In stock
