2009 Kawasaki KLX®110 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

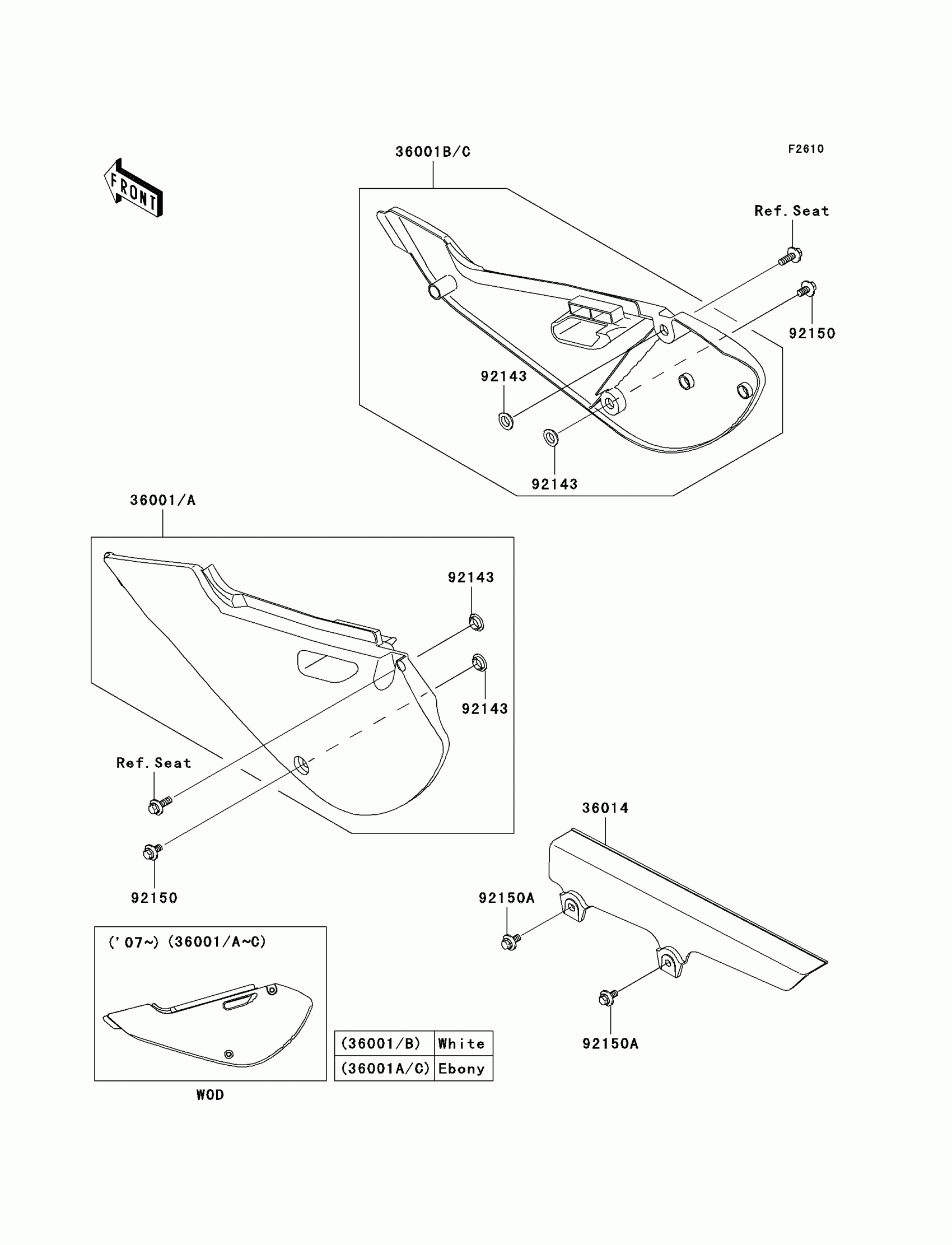

2009 Kawasaki KLX®110 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-1639-266

1

$92.68

In stock

36001B

COVER-SIDE,RH,B.WHITE

36001-1667-266

1

$92.68

In stock

36014

CASE-CHAIN

36014-1258

1

$60.35

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92150A

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock
