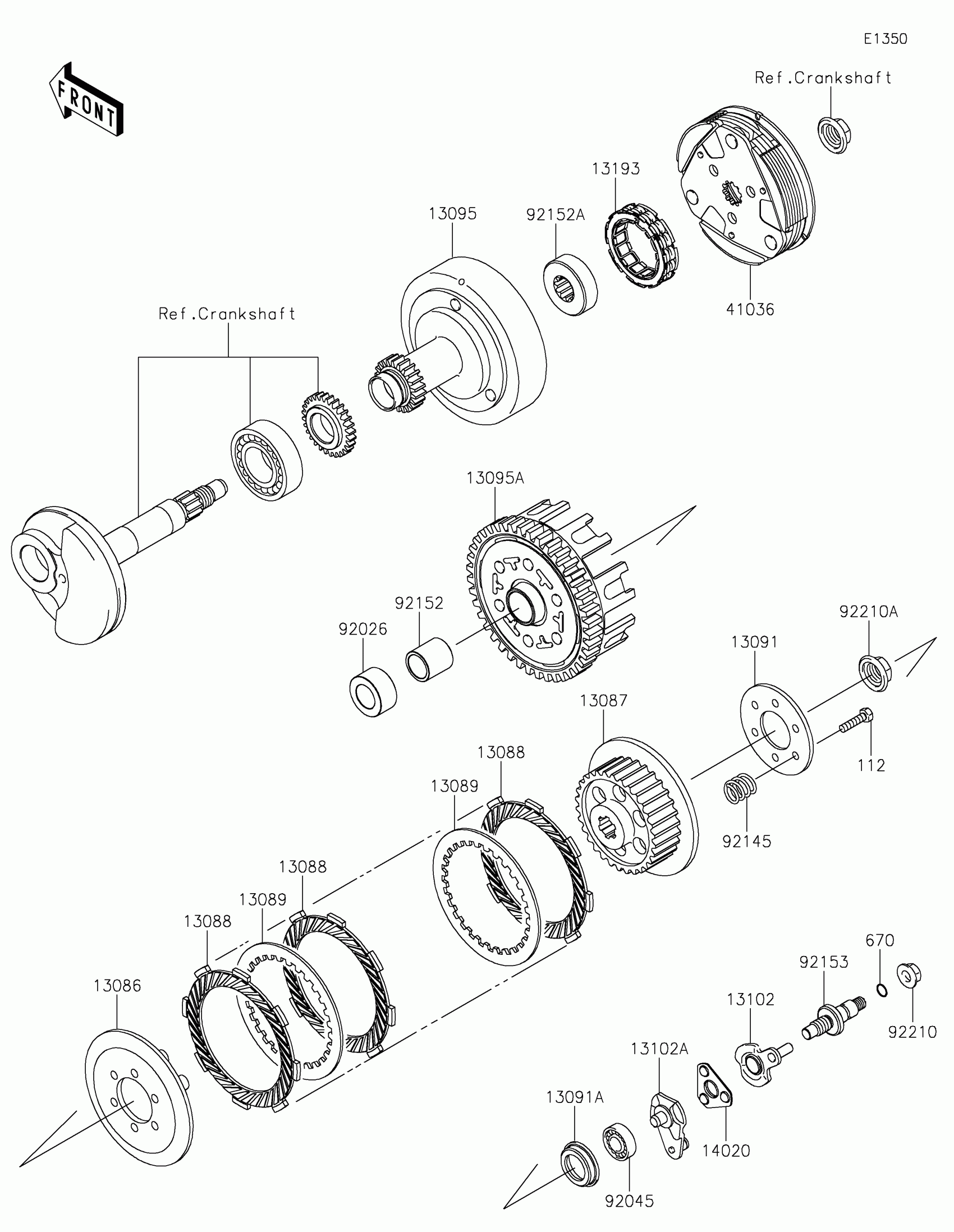

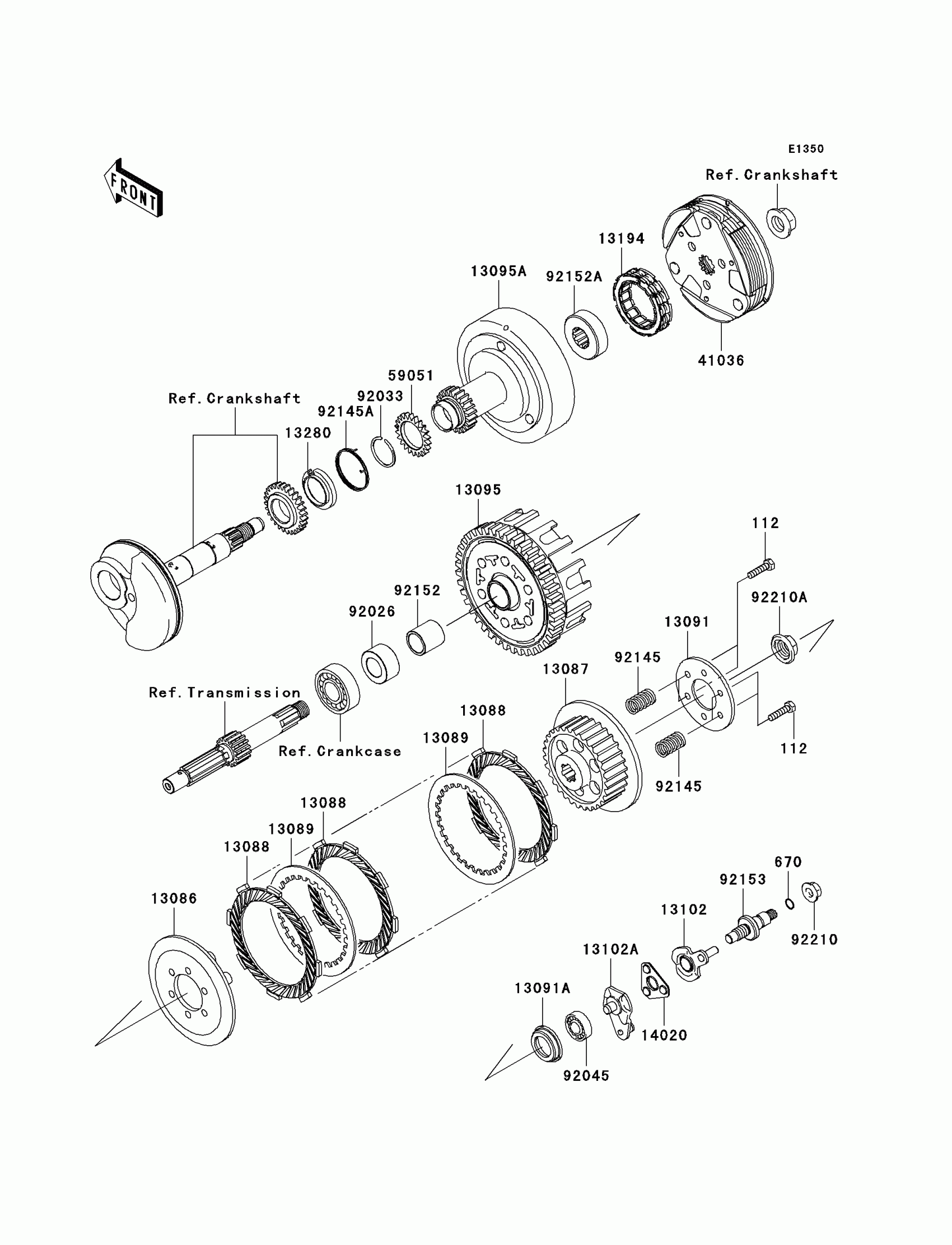

Find the part on the Clutch diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,5X20

112BA0520

1

$4.37

In stock

670

O RING,8MM

670B1508

1

$1.17

In stock

13086

WHEEL-CLUTCH

13086-1065

1

$26.70

In stock

13087

HUB-CLUTCH

13087-1151

1

$41.45

In stock

13088

PLATE-FRICTION

13088-1142

1

$9.93

In stock

13089

PLATE-CLUTCH

13089-1087

1

$10.14

In stock

13091

HOLDER,CLUTCH

13091-1782

1

$7.76

In stock

13091A

HOLDER

13091-1787

1

$10.24

In stock

13095

HOUSING-COMP-CLUTCH

13095-1403

1

$97.35

In stock

13095A

HOUSING-COMP-CLUTCH

13095-1422

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1135

1

$56.07

In stock

13102A

RELEASE-COMP-CLUTCH

13102-1136

1

$49.67

In stock

13194

CLUTCH-ONEWAY

13194-1103

1
Out of stock

13280

HOLDER,CLUTCH

13280-1250

1

$0.86

In stock

14020

RETAINER

14020-1100

1
Out of stock

41036

HUB-ASSY,CLUTCH

41036-1364

1

$131.43

In stock

59051

1

$5.24

In stock

92026

SPACER

92026-1605

1

$3.76

In stock

92033

RING-SNAP,23.5MM

92033-1065

1

$3.81

In stock

92045

BEARING-BALL,#628

92045-1123

1

$21.64

In stock

92145

SPRING,CLUTCH HUB

92145-1456

1

$1.34

In stock

92145A

1

$0.95

In stock

92152

COLLAR,17X22X22.7

92152-0393

1

$15.93

In stock

92152A

COLLAR,19X39.9X13

92152-1370

1

$9.07

In stock

92153

BOLT,CLUTCH RELEASE

92153-0525

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0004

1
Out of stock

92210A

NUT,14MM

92210-1374

1
Out of stock
