1986 Kawasaki KLT110 OIL Pump/oil Filter Diagram

← All diagrams

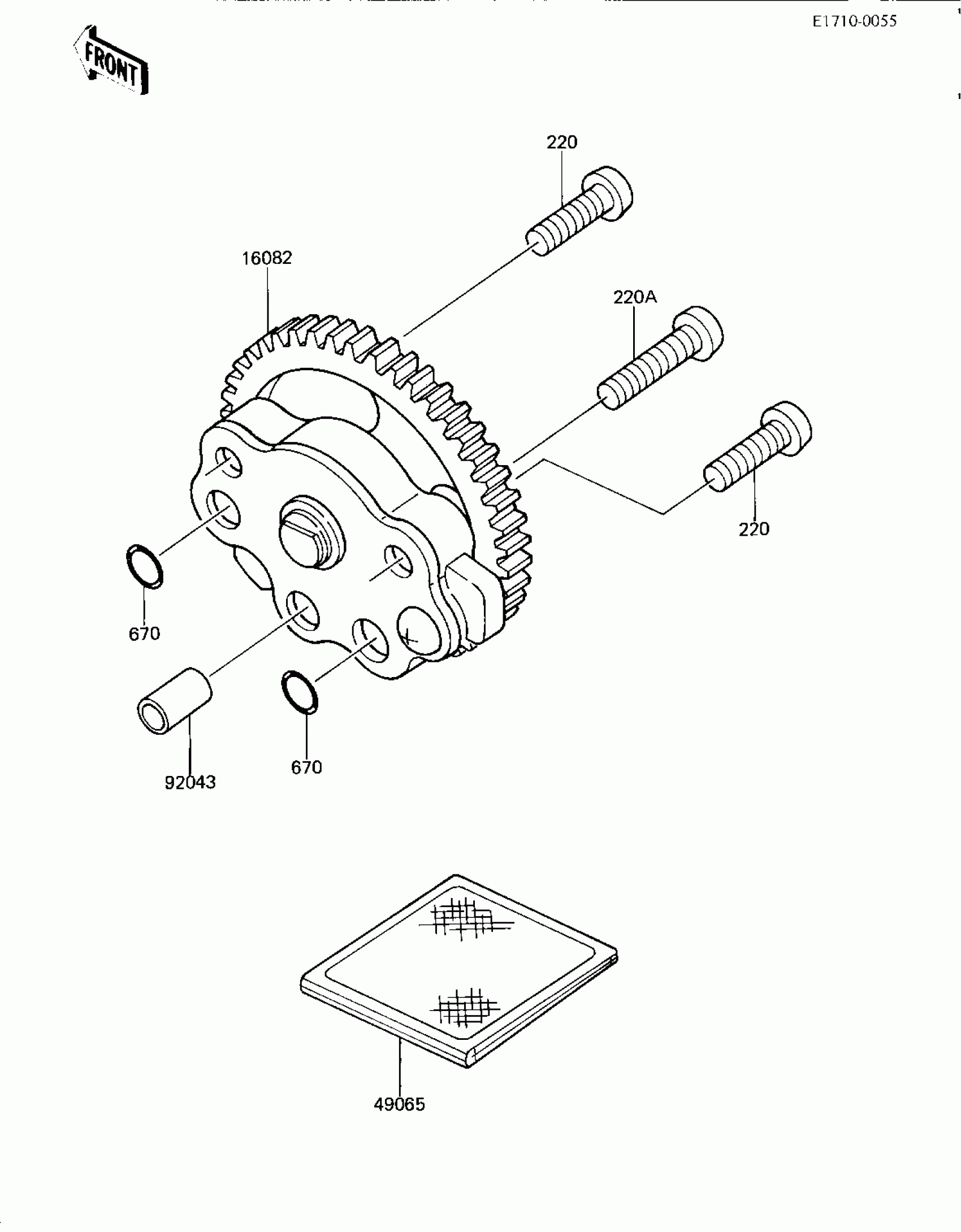

Find the part on the OIL Pump/oil Filter diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

PUMP-ASSY-OIL

16082-1030

1
Out of stock

49065

FILTER-OIL

49065-1001

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

220A

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

670

O RING,9.8X1.9

670B1510

1
Out of stock
