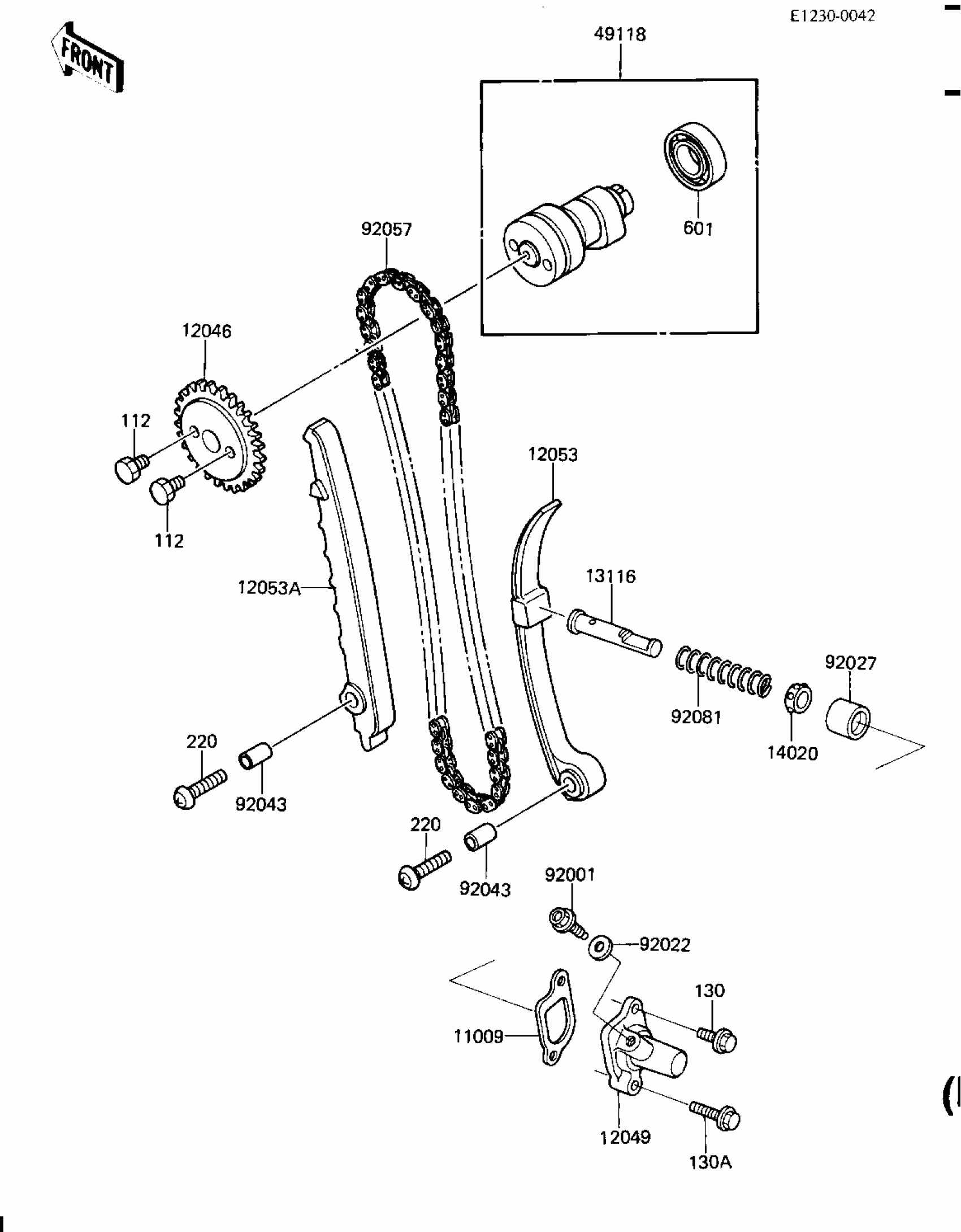

Kawasaki KLT110 CAMSHAFT/CHAIN/TENSIONER (KLT110-A1/A2) Diagram

Description

Price

11009

GASKET,CHAIN TENSIONE

11009-1225

Unavailable

12046

SPROCKET,CAM CHAIN

12046-1035

$25.76

12049

TENSIONER,CAM CHAIN

12049-1051

Unavailable

12053

GUIDE-CHAIN,RR

12053-1082

Unavailable

12053A

GUIDE-CHAIN,FR

12053-1087

$38.89

13116

ROD,PUSH,CAM CHAIN

13116-1019

$15.24

14020

RETAINER,TENSIONER

14020-1002

$16.44

49118

CAMSHAFT-COMP

49118-1005

$163.36

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92027

COLLAR,TENSIONER

92027-1733

$15.02

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92057

CHAIN,CAM,BF25H-88L

92057-1116

$32.80

92081

SPRING,TENSIONER

92081-1105

$4.07

112

BOLT,6X10

112G0610

Unavailable

130

BOLT-FLANGED,6X16

130Y0616

Unavailable

130A

BOLT-FLANGED,6X25

130Y0625

Unavailable

220

SCREW PAN HEAD 6X25

220B0625

Unavailable

601

BEARING-BALL,#6002Z

601A6002Z

Unavailable
