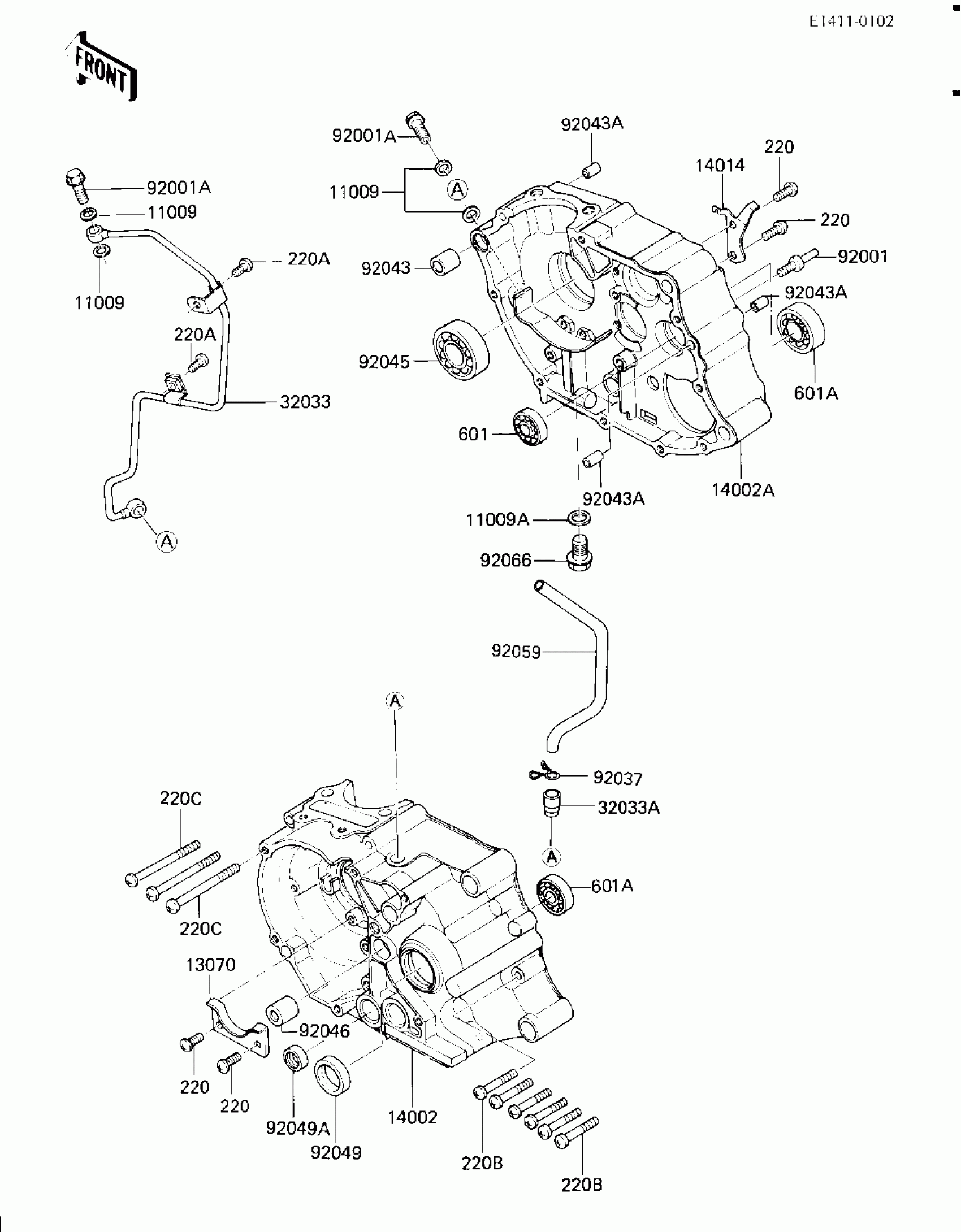

Kawasaki KLT110 CRANKCASE Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11009A

GASKET,12X22X2

92065-097

$0.66

13070

GUIDE,CAM CHAIN

13070-1046

Unavailable

14002

CRANKCASE,LH

14002-1242

Unavailable

14002A

CRANKCASE,RH

14002-1243

Unavailable

14014

PLATE-POSITION

14014-1031

Unavailable

32033

PIPE-A,OIL

32033-1089

$35.61

32033A

PIPE,BREATHER

32033-1518

$3.49

92001

BOLT,RETURN SPRING

92001-1401

$4.17

92001A

BOLT,BANJO,8X22

92002-1871

$4.33

92037

CLAMP,BREATHER TUBE

92037-192

$5.66

92043

PIN,DOWEL,14X14

92042-032

Unavailable

92043A

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,#6304

92045-1107

$25.92

92046

BEARING-NEEDLE,BK1312 NTN

92046-1034

$18.19

92049

SEAL-OIL,SC22325

92049-1048

$6.75

92049A

SEAL-OIL,TB13225.5

92051-005

$5.91

92059

TUBE,BREATHER

92059-1510

$15.37

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

220A

SCREW-PAN-CROS

220X0612

Unavailable

220B

SCREW-PAN-CROS

220X0635

Unavailable

220C

SCREW-PAN-CROS

220X0675

Unavailable

601

BEARING-BALL

601A6201

$8.12

601A

BEARING-BALL,#6203

601A6203

$10.67
