1986 Kawasaki KLT110 Cylinder Head Diagram

← All diagrams

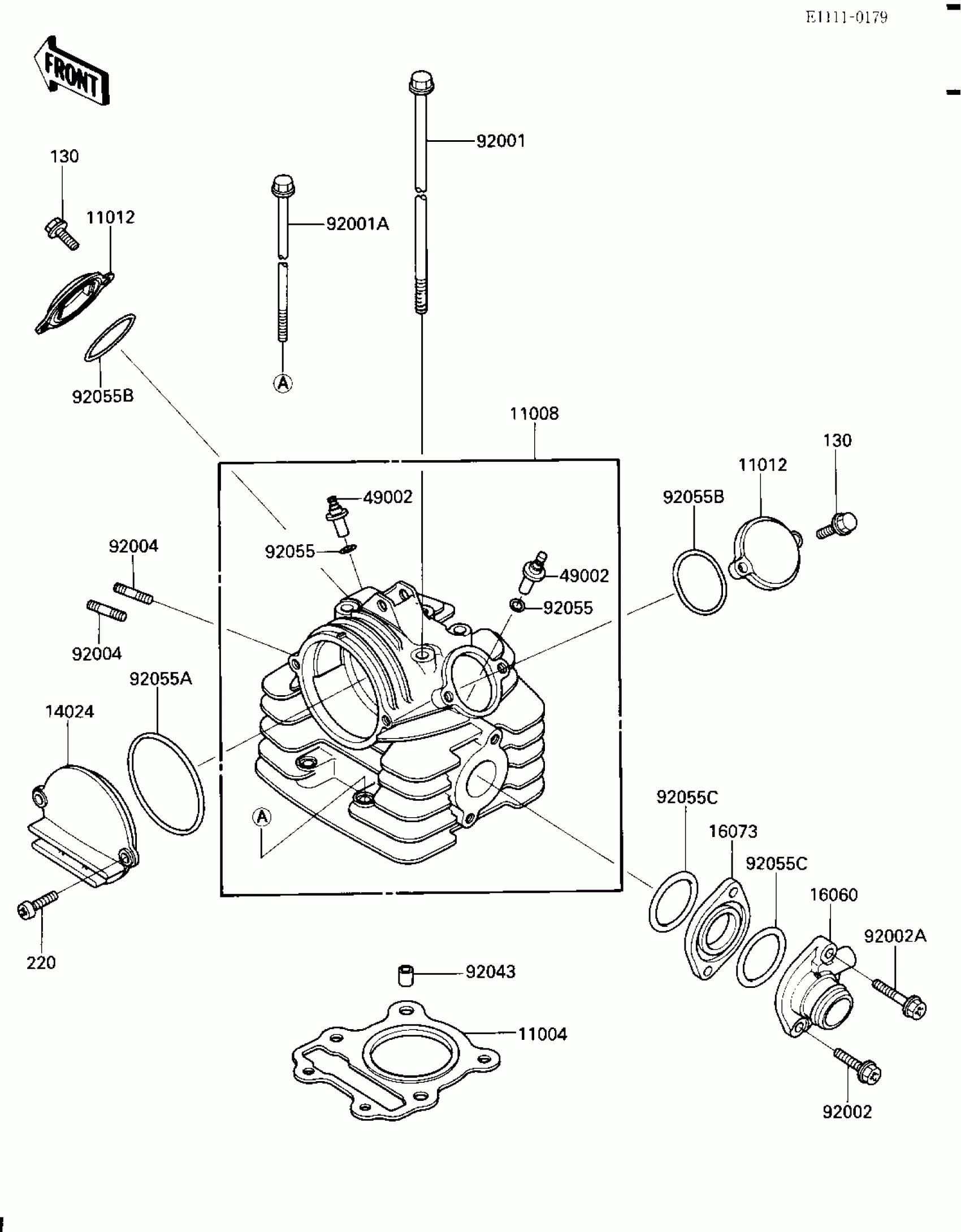

Find the part on the Cylinder Head diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1163

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1158

1
Out of stock

11012

CAP,VALVE ADJUSTING

11012-1303

1
Out of stock

14024

COVER,CAMSHAFT

14025-1696

1
Out of stock

16060

PIPE-INTAKE

16060-1009

1
Out of stock

16073

INSULATOR,INTAKE PIPE

16073-1016

1
Out of stock

49002

GUIDE-VALVE

49002-1056

1
Out of stock

92001

BOLT,FLANGED,8X196

92001-1838

1
Out of stock

92001A

BOLT,FLANGED,6X106

92001-1839

1
Out of stock

92002

BOLT,6X25

92002-1235

1
Out of stock

92002A

BOLT,6X30

92002-1295

1
Out of stock

92004

STUD,6X18

92004-1127

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,VALVE GUIDE

92055-1177

1
Out of stock

92055A

RING-O,68.6MM

92055-1178

1
Out of stock

92055B

RING-O,ADJUST CAP

92055-1231

1
Out of stock

92055C

RING-O,30MM

92055-1232

1
Out of stock

130

BOLT-FLANGED

130Y0620

1
Out of stock

220

SCREW-PAN-CROS

220X0620

1
Out of stock
