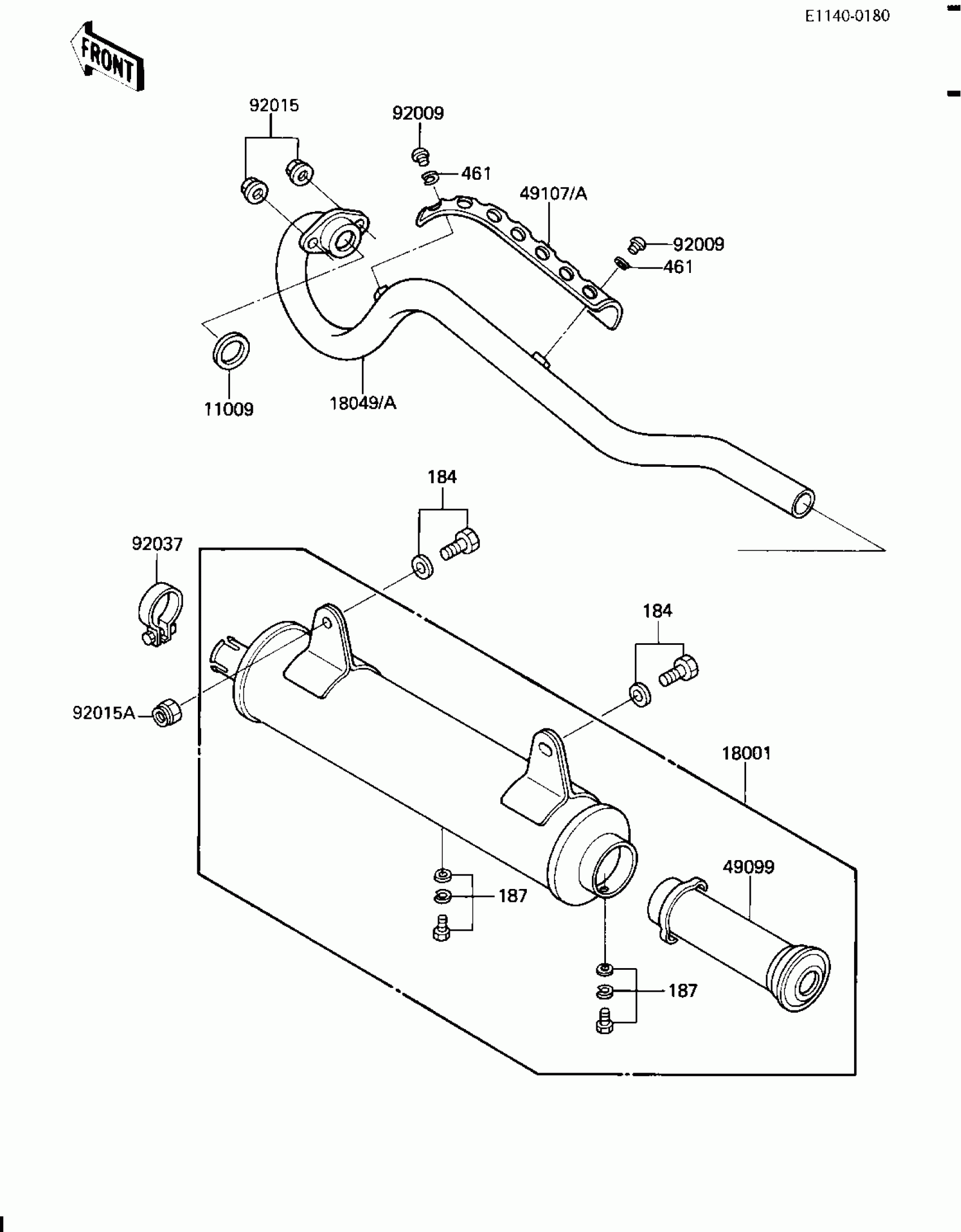

Kawasaki KLT110 MUFFLER Diagram

#

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1380

Unavailable

18001

MUFFLER,F.BLACK

18001-1480

Unavailable

18049A

PIPE-EXHAUST

18049-1391

Unavailable

49099

BAFFLE-PIPE MUFFLER

49099-1223

Unavailable

49107A

COVER-EXHAUST PIPE

49107-1059

$16.29

92009

SCREW,6X6.7,BLACK

92009-1285

$2.56

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,U,8MM,BLACK

92015-1205

Unavailable

92037

CLAMP,MUFFLER FITTING

92037-1035

Unavailable

184

BOLT-UPSET-WP-SMALL

184J0820

$4.68

187

BOLT 6X12

187B0612

Unavailable

461

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable
