1995 Kawasaki KLR650 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

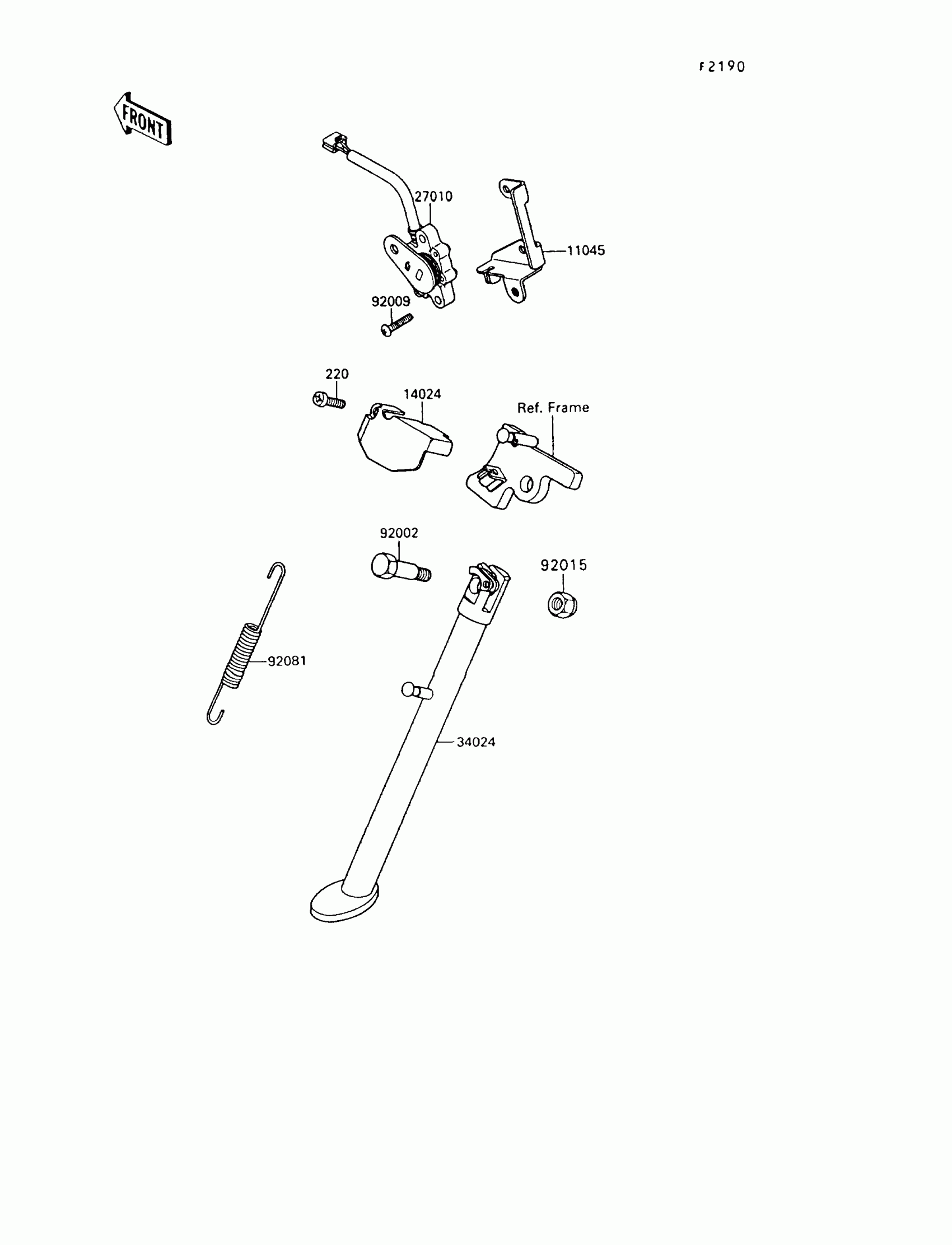

1995 Kawasaki KLR650 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$24.83

In stock

14024

COVER,SIDE STAND

14024-1474

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1257

1

$145.70

In stock

34024

STAND-SIDE

34024-1221

1
Out of stock

92002

BOLT,SIDE STAND

92002-1813

1
Out of stock

92009

SCREW,5X25

92009-1657

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92081

SPRING,SIDE STAND

92081-1376

1

$11.18

In stock

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

1
Out of stock
← Seat Optional Parts →
