1991 Kawasaki KLR650 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

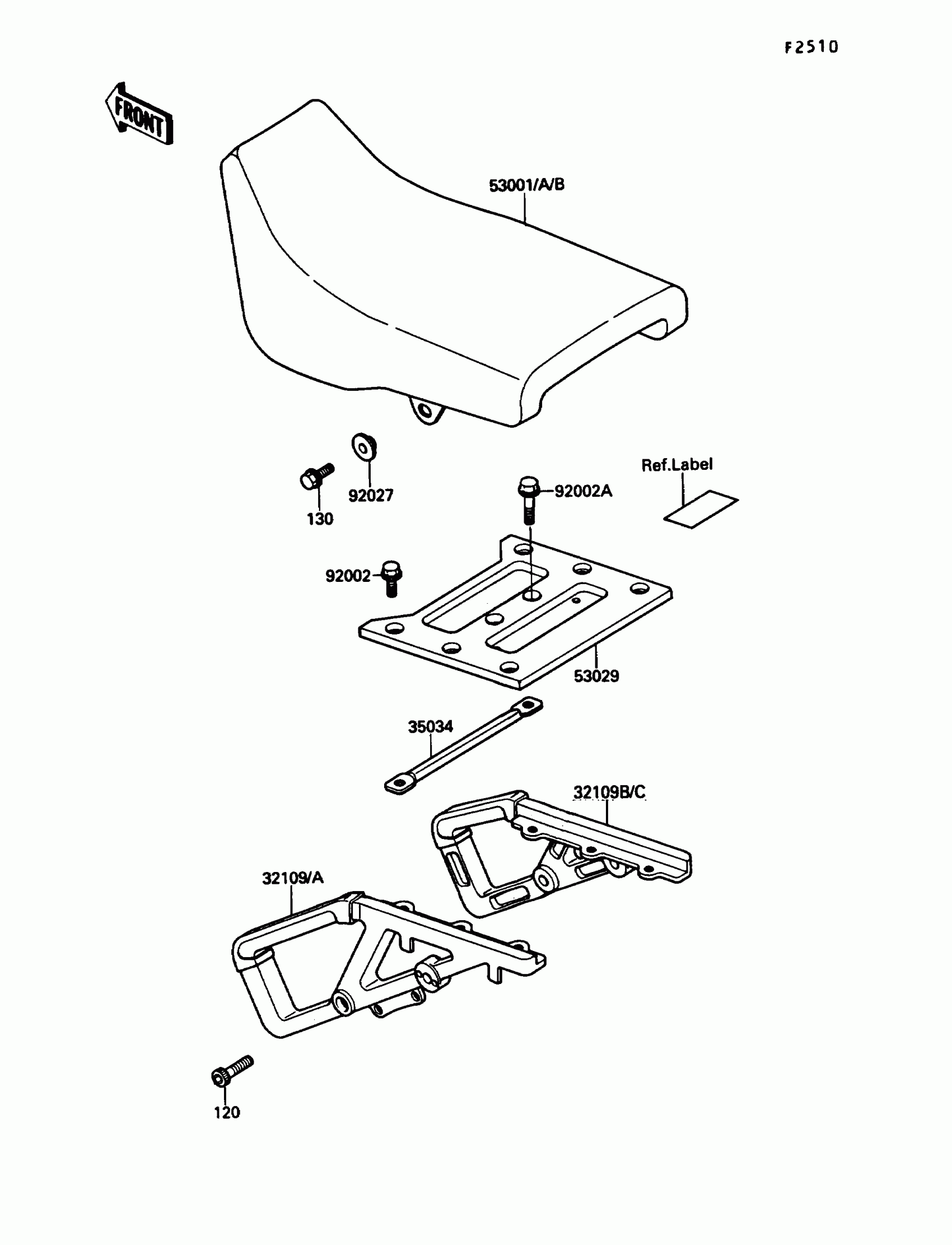

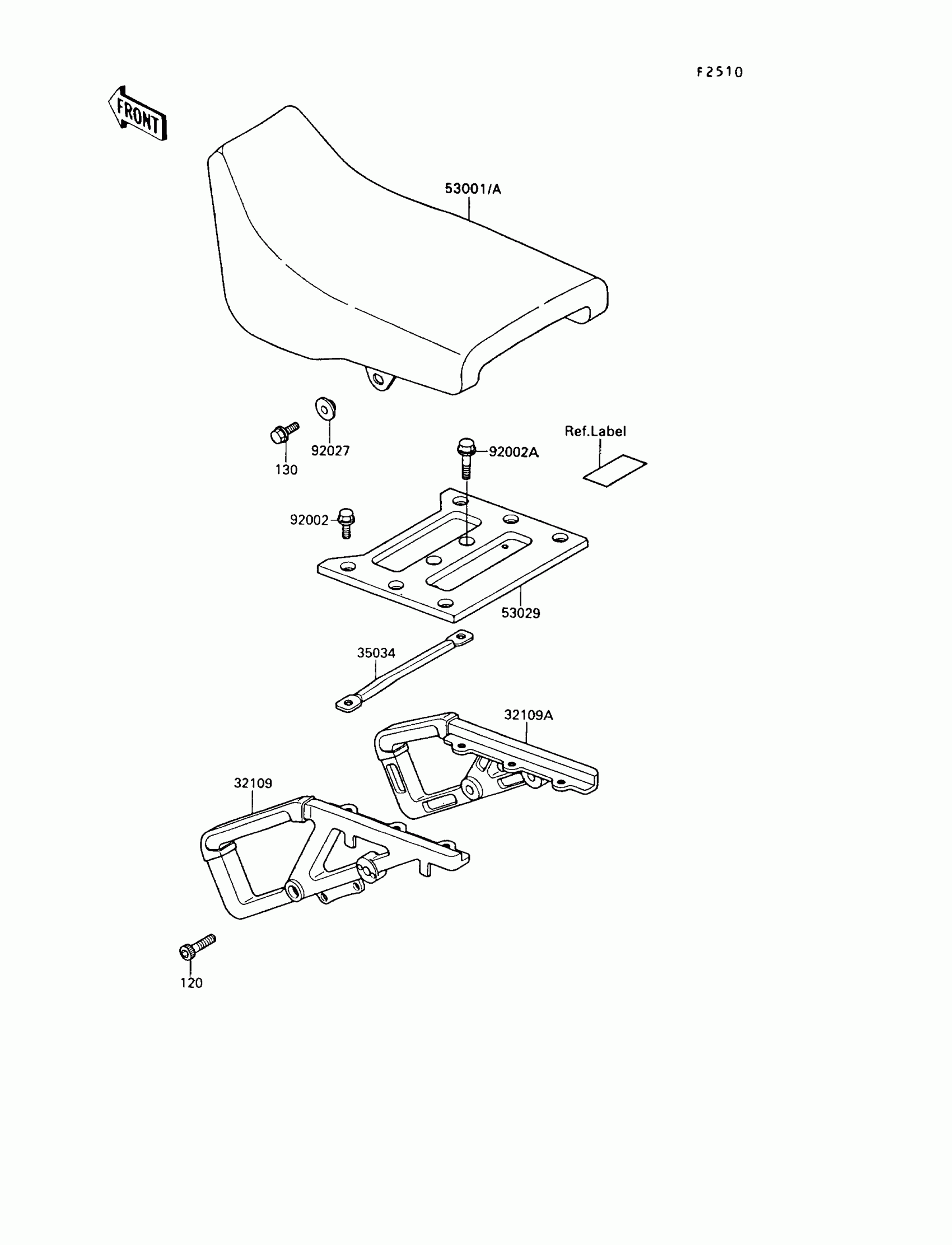

1991 Kawasaki KLR650 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32109

1

$123.00

In stock

32109B

1

$123.00

In stock

35034

REINFORCE

35034-1207

1

$21.97

In stock

53001B

SEAT-ASSY,DUAL,BLUE

53001-1634-MZ

1

$521.15

In stock

53029

CARRIER

53029-1081

1
Out of stock

92002

BOLT,6X16

92002-1933

1
Out of stock

92002A

BOLT,FLANGED,6X32

92002-1989

1
Out of stock

92027

COLLAR

92027-1794

1

$3.43

In stock

120

BOLT-SOCKET,8X35

120P0835

1
Out of stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock
