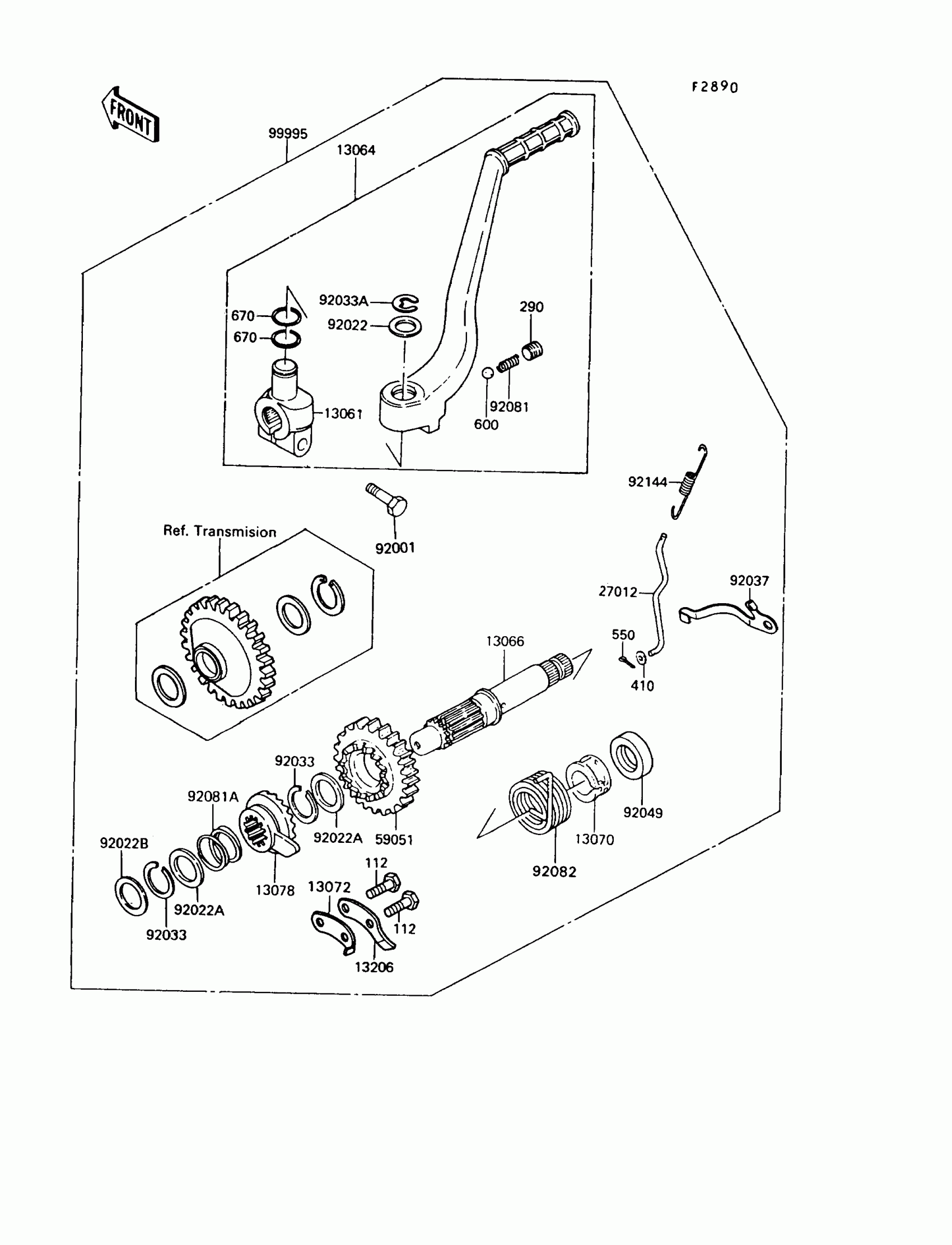

Kawasaki KLR650 Optional Parts Diagram

#

Description
Price

13061

BOSS,KICK PEDAL

13061-1106

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1133

Unavailable

13066

SHAFT-KICK

13066-1058

Unavailable

13070

GUIDE,KICK SPRING

13070-1106

Unavailable

13072

STOPPER,KICKSTARTER

13072-014

Unavailable

13078

RATCHET

13078-1051

Unavailable

13206

GUIDE-KICK

13206-1051

Unavailable

27012

HOOK

27012-1383

Unavailable

59051

GEAR-SPUR,KICK

59051-1142

$140.96

92001

BOLT,8X28

92001-1042

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,25.3X30X0.5

92022-159

$8.37

92022B

WASHER,20.5X25.5X0.5

92022-252

$4.93

92033

RING-SNAP,24MM

92033-026

$6.98

92033A

RING-SNAP,10MM

92033-1166

$3.10

92037

CLAMP

92037-1938

Unavailable

92049

SEAL-OIL,SC22325

92049-1048

$7.04

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING

92081-097

$11.29

92082

SPRING,KICKSTARTER

92082-003

$29.01

92144

SPRING,REAR BRAKE SWITCH

92144-1143

$8.73

99995

KIT.,KICKSTARTER

99995-1007

Unavailable

112

BOLT-UPSET

112G0618

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

410

WASHER PLAIN 4MM

410B0400

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.67

670

O RING,15MM

670B2015

$1.25
