1995 Kawasaki KLR650 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

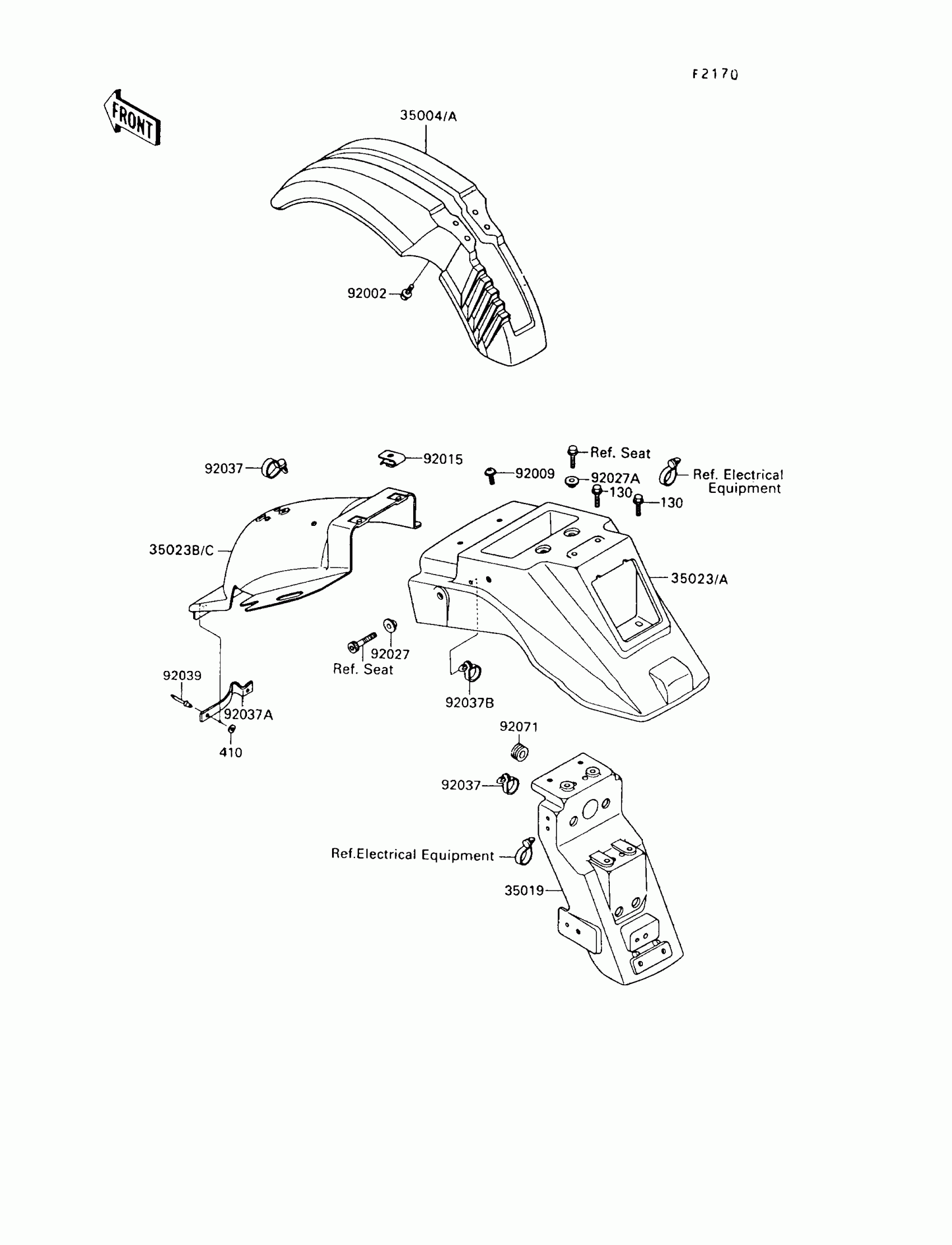

1995 Kawasaki KLR650 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,GREEN 15

35004-1199-51

1

$146.90

In stock

35019

FLAP,RR

35019-1186

1

$74.87

In stock

35023

FENDER-REAR,RR,GREEN 15

35023-1180-51

1
Out of stock

35023B

FENDER-REAR,FR

35023-1181

1

$65.24

In stock

35023C

FENDER-REAR,FR

35023-1195

1

$70.79

In stock

92002

BOLT,6X16

92002-1187

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92027

COLLAR

92027-1745

1

$6.82

In stock

92027A

COLLAR

92027-1794

1

$3.43

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP

92037-1901

1
Out of stock

92037B

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92039

RIVET

92039-1038

1
Out of stock

92071

GROMMET

92071-1027

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock
