1991 Kawasaki KLR650 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

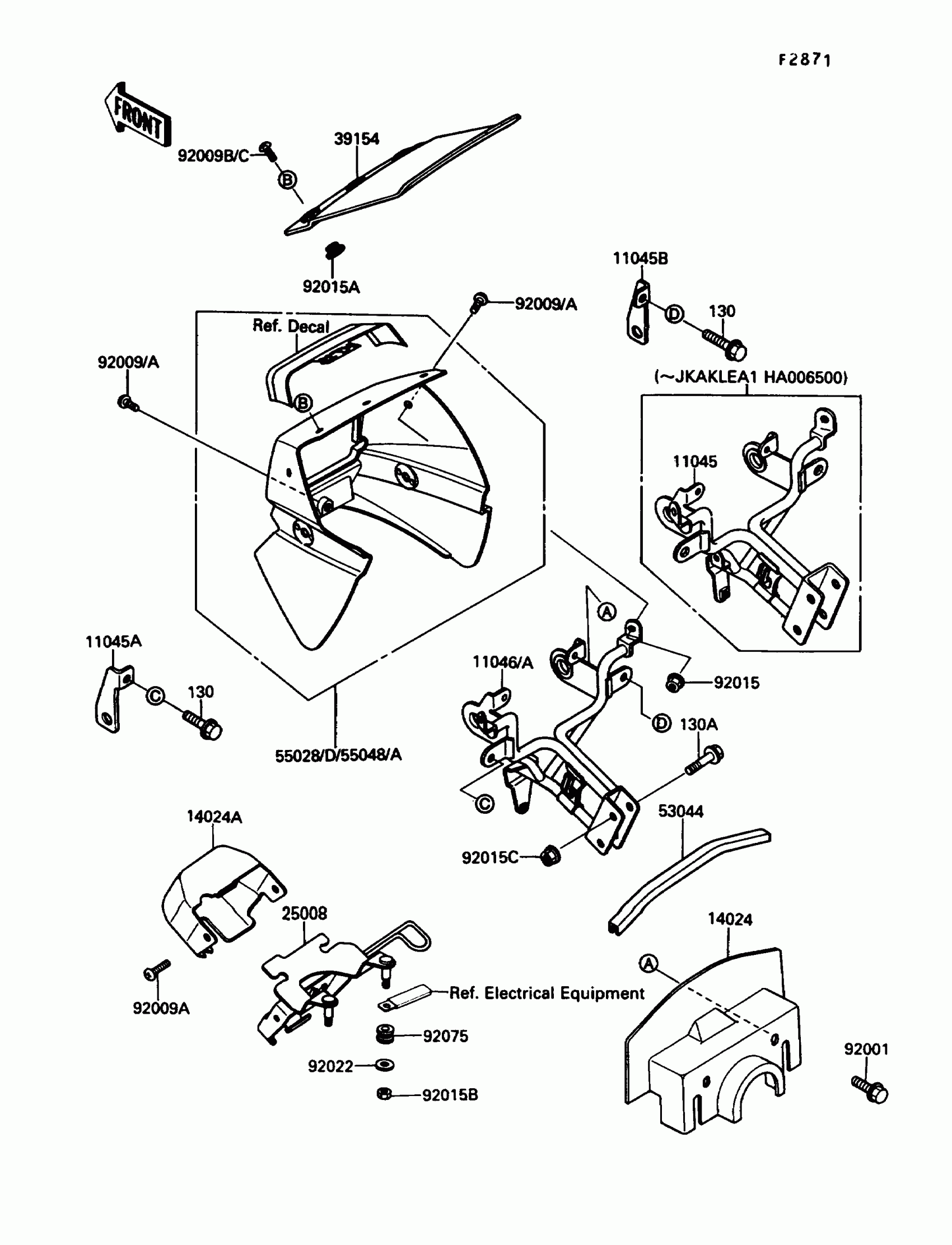

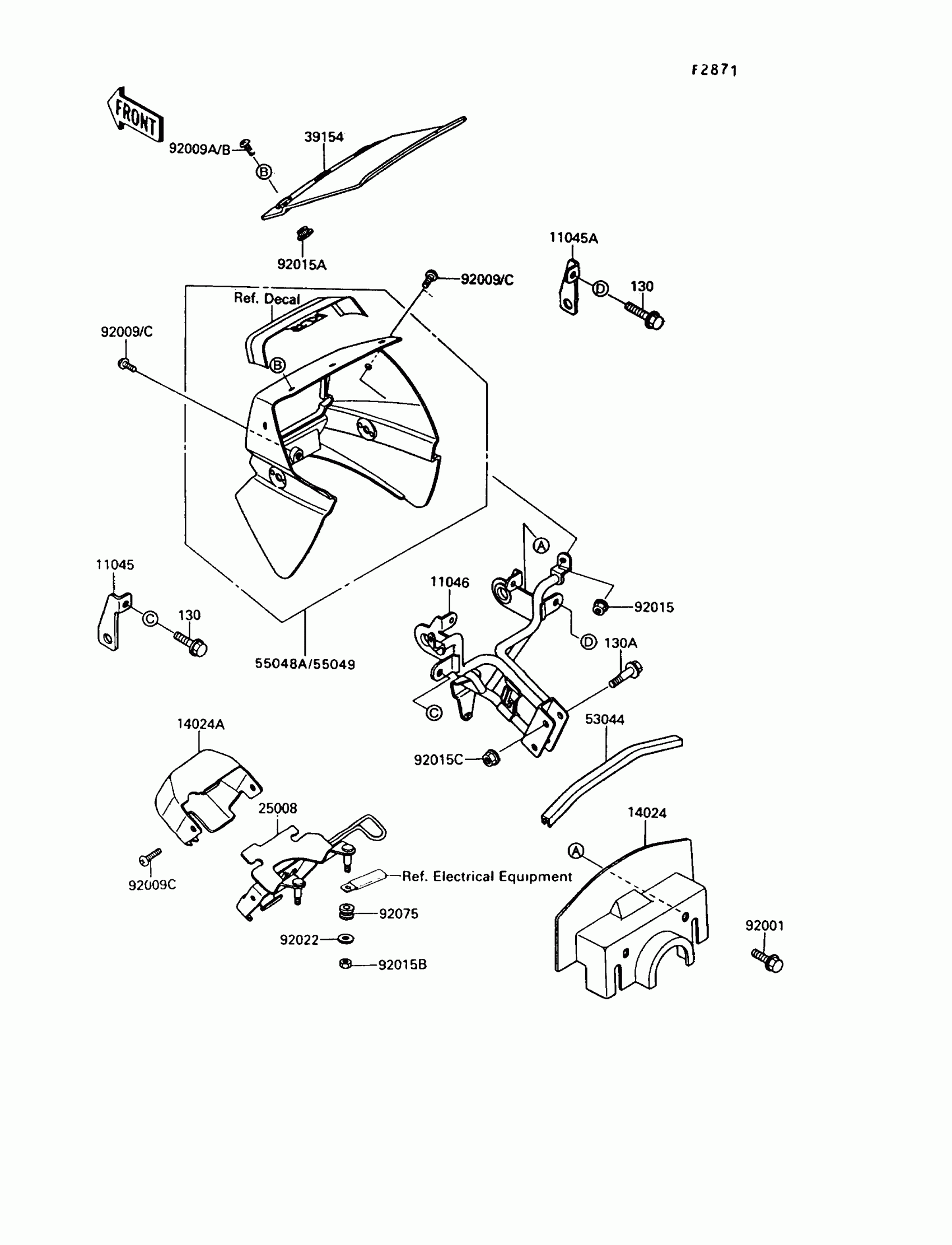

1991 Kawasaki KLR650 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045A

1

$10.24

In stock

11045B

BRACKET,SIGNAL LAMP,RH

11045-1799

1
Out of stock

11046

BRACKET,COWLING

11046-1036

1

$167.37

In stock

14024

COVER,COWLING,INNER

14024-1366

1
Out of stock

14024A

COVER,HARNESS COUPLER

14024-1471

1
Out of stock

25008

BRACKET-METER

25008-1137

1
Out of stock

39154

WINDSHIELD

39154-1065

1
Out of stock

53044

TRIM,COWLING COVER

53044-1106

1
Out of stock

55048A

COWLING.,UPP,B.BLUE

55048-5491-6K

1

$173.10

In stock

92001

BOLT,6X14,BLACK

92001-1847

1

$3.58

In stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009A

SCREW,6X14,BLACK

92009-1308

1
Out of stock

92009B

SCREW,5X14,WHITE

92009-1366

1
Out of stock

92009C

SCREW,5X14,BLACK

92009-1383

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,5MM,COWLING

92015-1343

1

$3.65

In stock

92015B

NUT,6MM

92015-1391

1

$2.05

In stock

92015C

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92075

DAMPER

92075-024

1

$3.49

In stock

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock

130A

BOLT-FLANGED,8X25

130G0825

1
Out of stock
