2025 Kawasaki KLR650 S Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

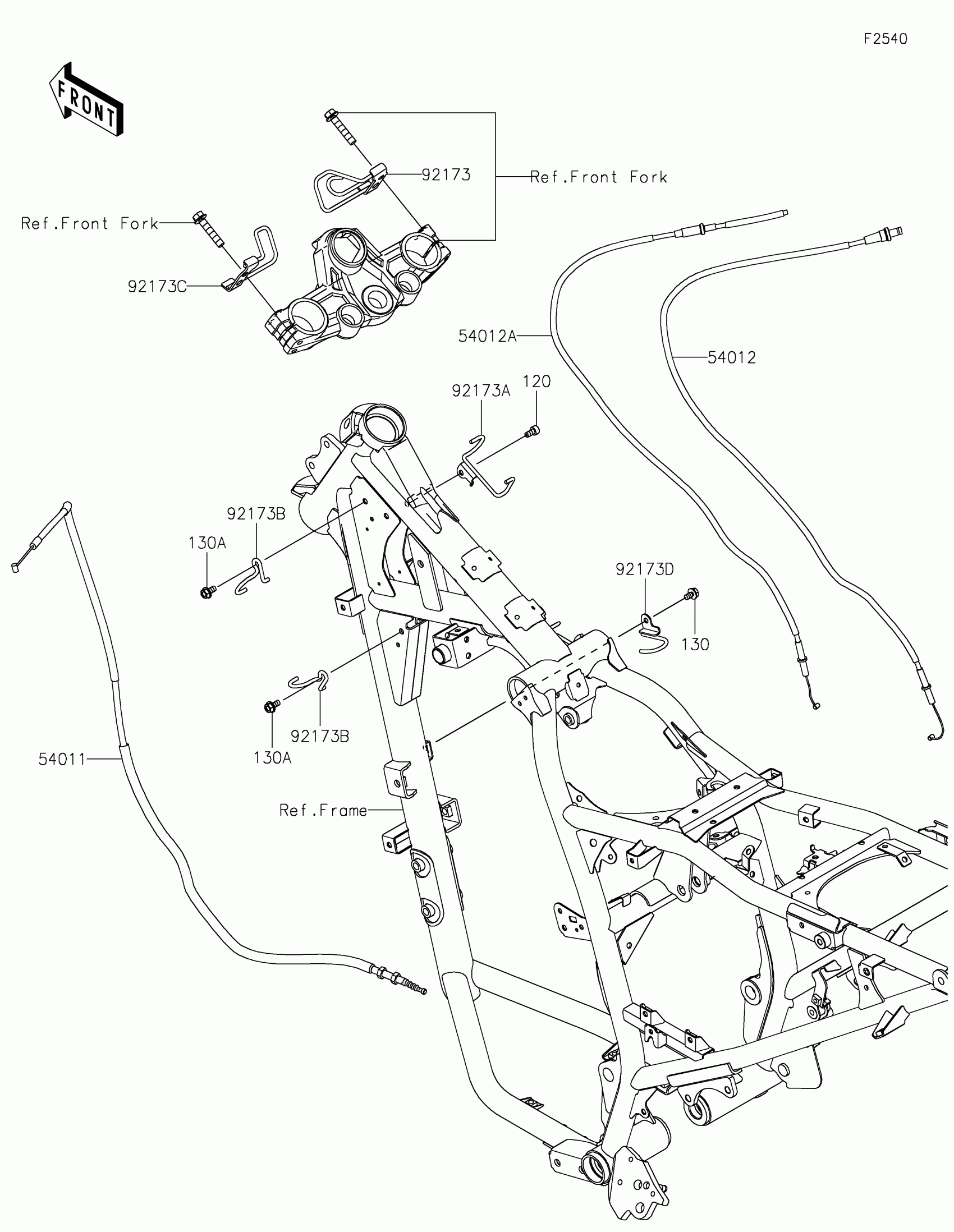

2025 Kawasaki KLR650 S Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54011

CABLE-CLUTCH

54011-0655

1

$26.35

In stock

54012

CABLE-THROTTLE,PULL

54012-0717

1

$29.05

In stock

54012A

1

$35.01

In stock

92173

1

$20.47

In stock

92173A

1

$5.47

In stock

92173B

CLAMP,CLUTCH CABLE

92173-2358

1

$2.46

In stock

92173C

1

$15.36

In stock

92173D

CLAMP,CLUTCH CABLE

92173-2398

1

$4.86

In stock

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock
