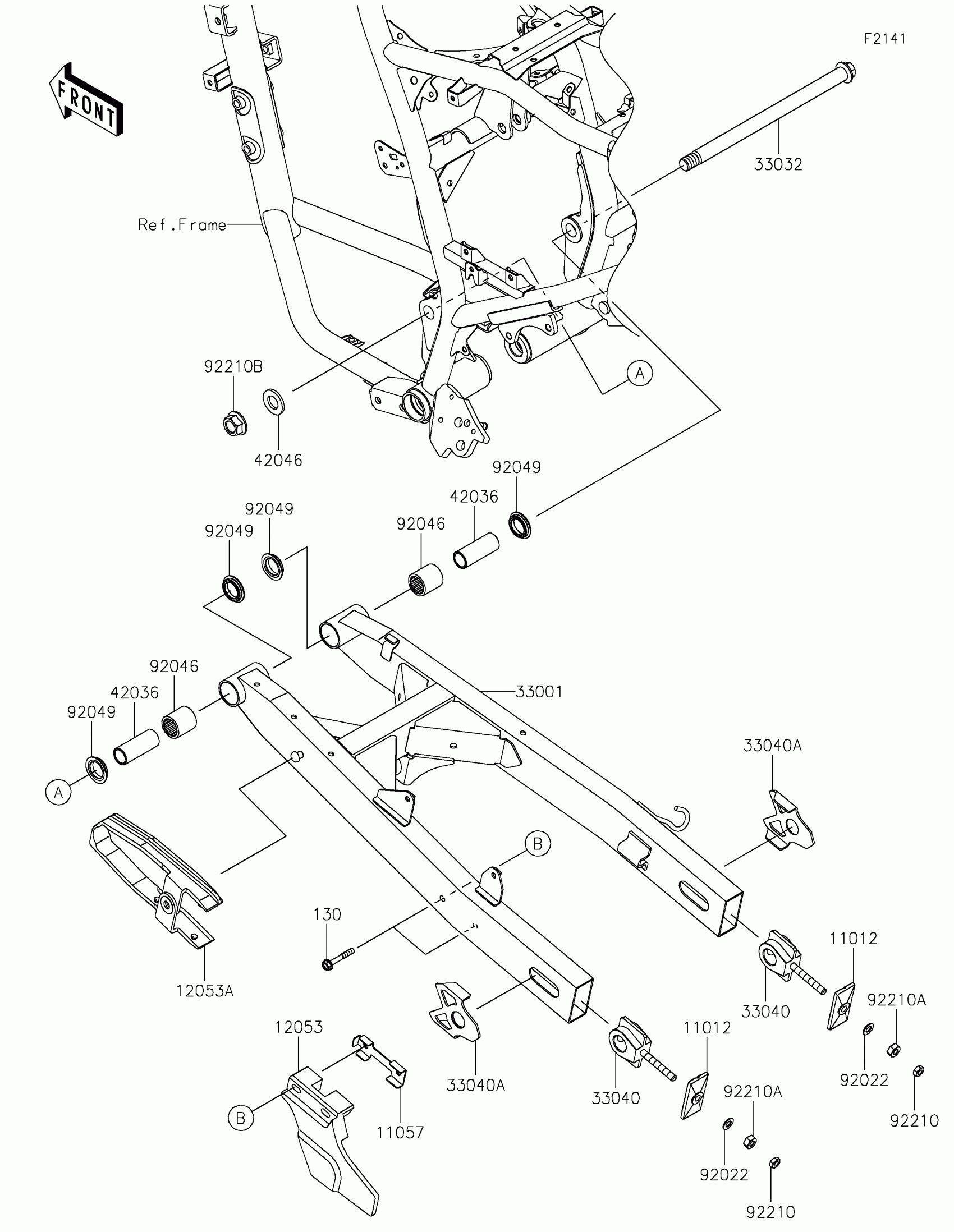

Find the part on the Swingarm diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

1

$24.26

In stock

11057

BRACKET,CHAIN GUIDE

11057-7405

1

$4.08

In stock

12053

GUIDE-CHAIN,RR

12053-0222

1

$66.65

In stock

12053A

GUIDE-CHAIN,FR

12053-0313

1

$45.41

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0733-18R

1

$962.56

In stock

33032

SHAFT-SWING ARM

33032-0066

1

$71.54

In stock

33040

ADJUSTER-CHAIN

33040-0098

1

$27.47

In stock

33040A

ADJUSTER-CHAIN,F.S.BLACK

33040-0099-18R

1

$21.41

In stock

42036

SLEEVE,17.1X22X55.5

42036-0859

1

$33.66

In stock

42046

WASHER,17.3X32X3.2

42046-009

1

$7.71

In stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock

92210

NUT,8MM,5X12

92210-1588

1

$0.88

In stock

92210A

NUT,8MM,6.5X14

92210-1589

1

$1.47

In stock

92210B

NUT,FLANGED,16MM

92210-1817

1

$21.63

In stock

130

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock
