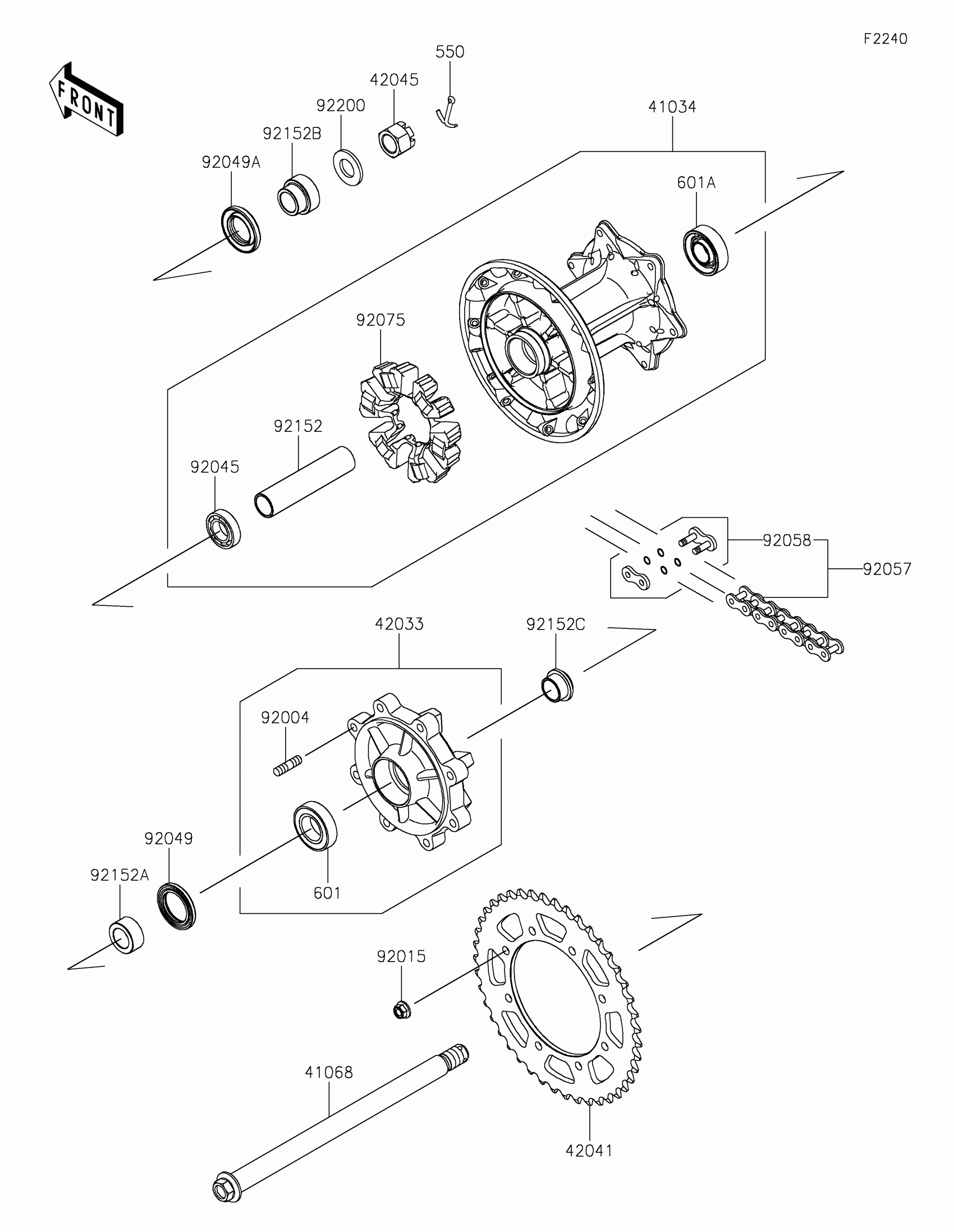

Find the part on the Rear Hub diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR

41034-0609

1

$624.73

In stock

41068

AXLE,RR

41068-0659

1

$111.51

In stock

42033

1

$227.21

In stock

42041

SPROCKET-HUB,43T

42041-0185

1

$75.39

In stock

42045

NUT,CASTLE,18MM

42045-018

1

$7.31

In stock

92004

STUD,8X16

92004-1150

1
Out of stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92045

1

$33.76

In stock

92049

SEAL-OIL,32X47X5

92049-0795

1
Out of stock

92049A

SEAL-OIL,27X47X7

92049-0802

1

$7.20

In stock

92057

1

$164.81

In stock

92058

JOINT-CHAIN

92058-0044

1

$13.00

In stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1

$43.39

In stock

92152

1

$12.71

In stock

92152A

COLLAR,LH

92152-2736

1

$12.71

In stock

92152B

COLLAR,RH

92152-2737

1

$23.02

In stock

92152C

COLLAR,COUPLING

92152-2738

1
Out of stock

92200

WASHER,19X36X3.2

92200-0296

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

1

$24.49

In stock

601A

1

$30.34

In stock
