2025 Kawasaki KLR650 S Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

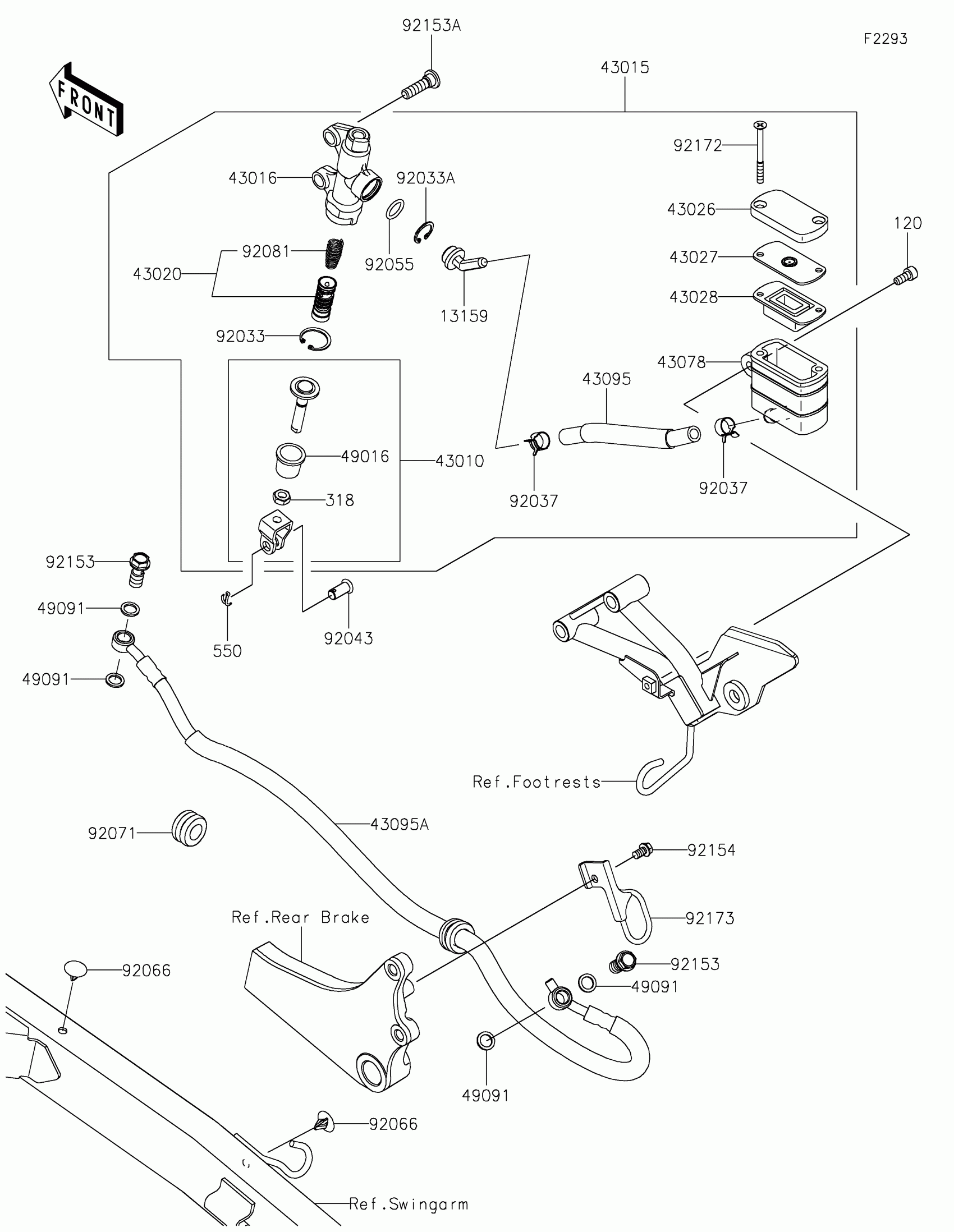

2025 Kawasaki KLR650 S Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-0008

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0031

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0794

1
Out of stock

43016

CYLINDER-MASTER,RR

43016-1208

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-0014

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0006

1
Out of stock

43028

DIAPHRAGM

43028-0009

1
Out of stock

43078

RESERVOIR

43078-0056

1
Out of stock

43095

HOSE-BRAKE

43095-1857

1
Out of stock

43095A

HOSE-BRAKE,RR

43095-1862

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1103

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN,8X17

92043-0104

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92066

PLUG

92066-0980

1
Out of stock

92071

GROMMET,15X20X16

92071-0056

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0950

1
Out of stock

92172

SCREW

92172-0383

1
Out of stock

92173

CLAMP

92173-2454

1
Out of stock

120

BOLT-SOCKET,6X14

120CA0614

1
Out of stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
