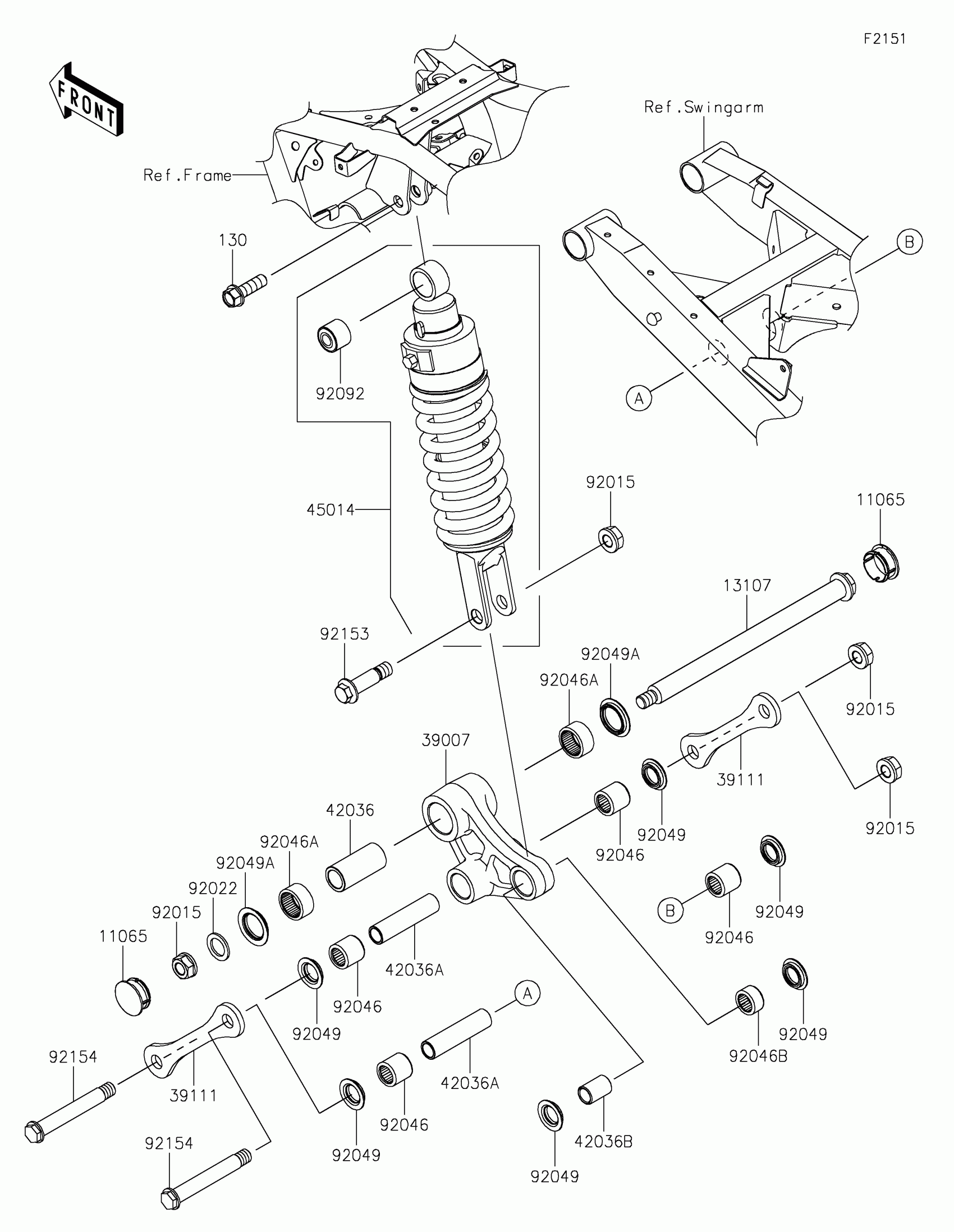

Find the part on the Suspension/shock Absorber diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,32X14

11065-0822

1
Out of stock

13107

SHAFT,SUSPENSION ARM

13107-0928

1
Out of stock

39007

ARM-SUSP,UNI TRAK

39007-0075

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0393

1
Out of stock

42036

SLEEVE,20X28X60

42036-0071

1
Out of stock

42036A

SLEEVE,15X20X82

42036-0072

1
Out of stock

42036B

SLEEVE,15X20X30

42036-0073

1
Out of stock

45014

SHOCKABSORBER

45014-0757

1
Out of stock

92015

NUT,14MM

92015-1459

1
Out of stock

92022

WASHER,20X30X2.3

92022-1568

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046B

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92092

BUSHING-RUBBER

92092-1063

1
Out of stock

92153

BOLT,FLANGED,14X56

92153-1692

1
Out of stock

92154

BOLT,FLANGED,14X108

92154-1427

1
Out of stock

130

BOLT-FLANGED,12X40

130BA1240

1
Out of stock
