1995 Kawasaki KLR650 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

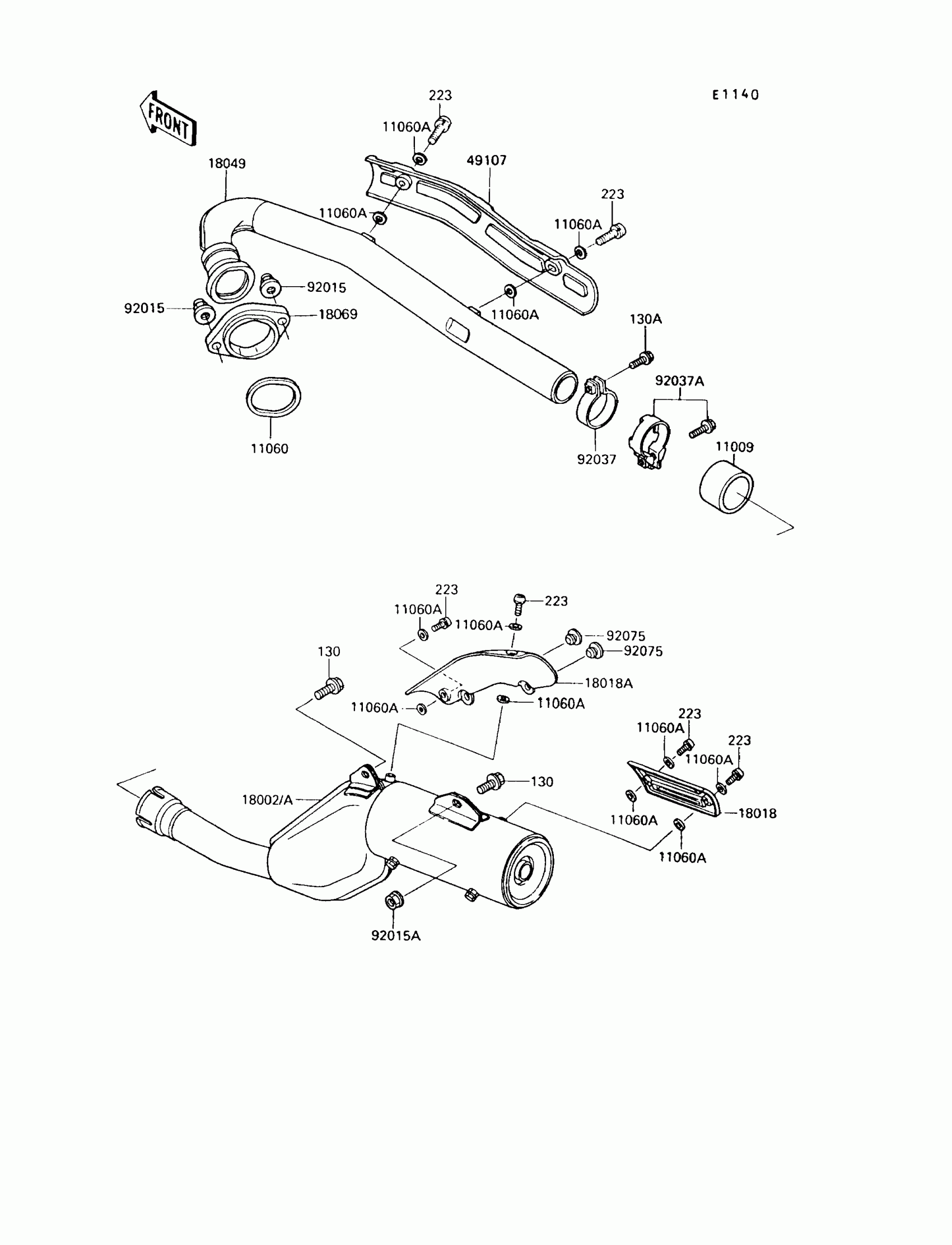

1995 Kawasaki KLR650 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$30.00

In stock

11060

1

$7.31

In stock

11060A

GASKET,6.2X11.5X1.5

11060-1109

1

$3.63

In stock

18002

BODY-COMP-MUFFLER

18002-1886

1
Out of stock

18002A

BODY-COMP-MUFFLER

18002-1887

1

$853.70

In stock

18018

PLATE-HEAT GUARD

18018-1053

1
Out of stock

18018A

PLATE-HEAT GUARD

18018-1072

1

$38.46

In stock

18049

PIPE-EXHAUST

18049-1460

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1063

1

$33.48

In stock

49107

COVER-EXHAUST PIPE,FR

49107-1073

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,8MM

92015-1402

1

$3.72

In stock

92037

CLAMP,43MM

92037-1888

1
Out of stock

92037A

CLAMP

92037-1910

1

$24.93

In stock

92075

1

$3.85

In stock

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

130A

BOLT-FLANGED,8X20

130J0820

1
Out of stock

223

1

$3.28

In stock
