1989 Kawasaki KLR250 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

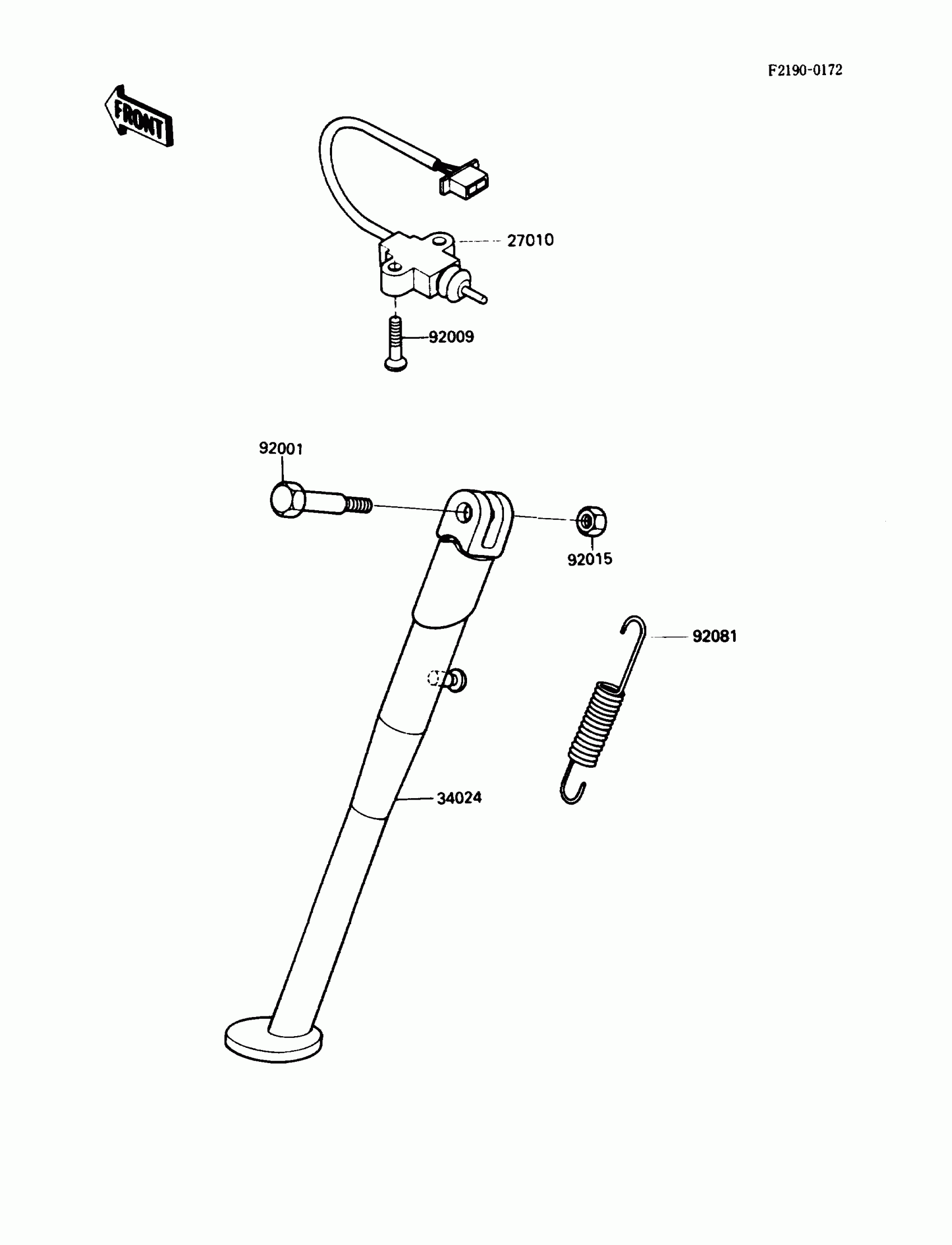

1989 Kawasaki KLR250 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,SIDE STAND

27010-1189

1
Out of stock

34024

STAND-SIDE

34024-1182

1

$81.84

In stock

92001

BOLT,SIDE STAND

92003-157

1
Out of stock

92009

SCREW,5X20

92009-1359

1
Out of stock

92015

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,SIDE STAND

92081-1376

1

$11.18

In stock
