1981 Kawasaki KLR250 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1981 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

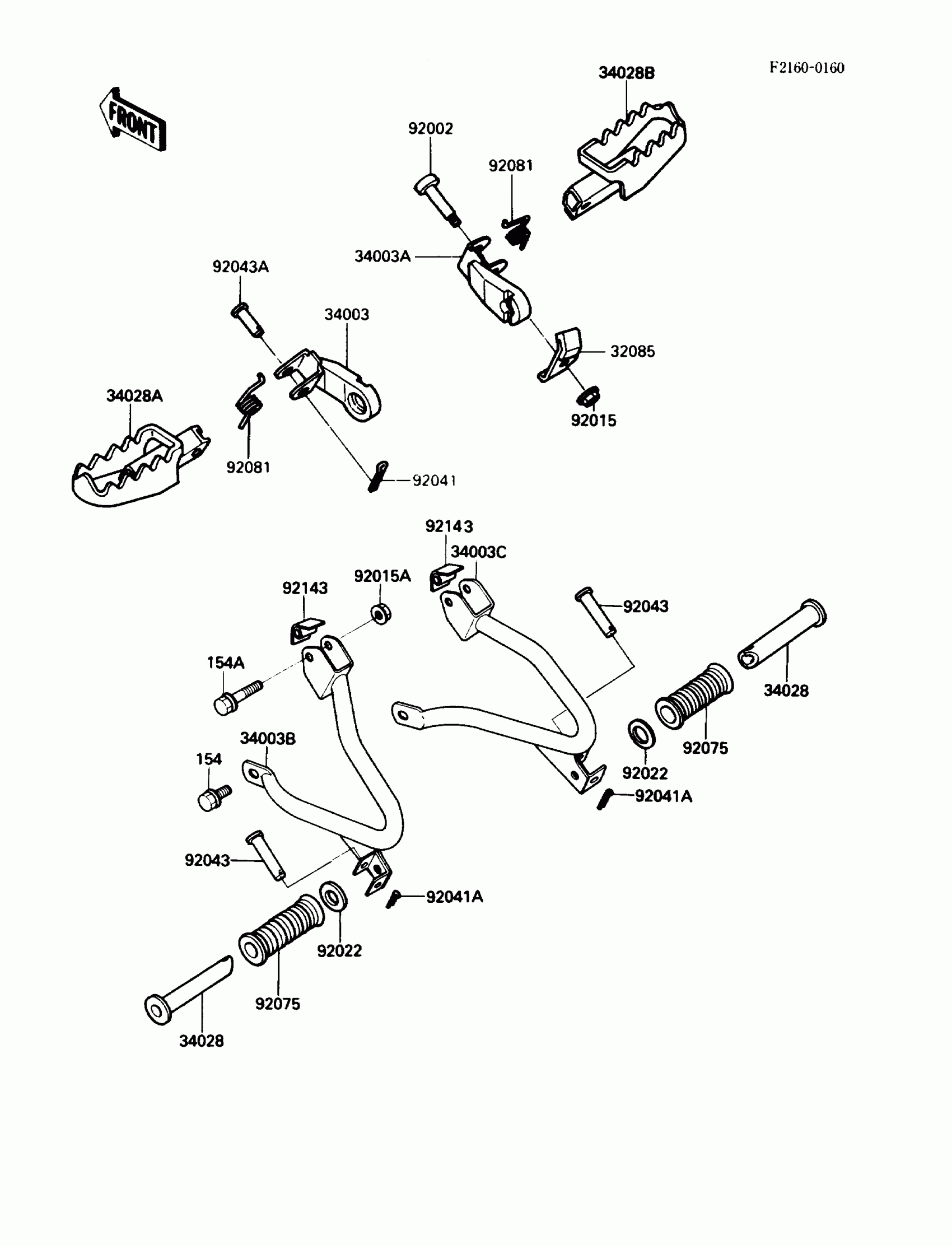

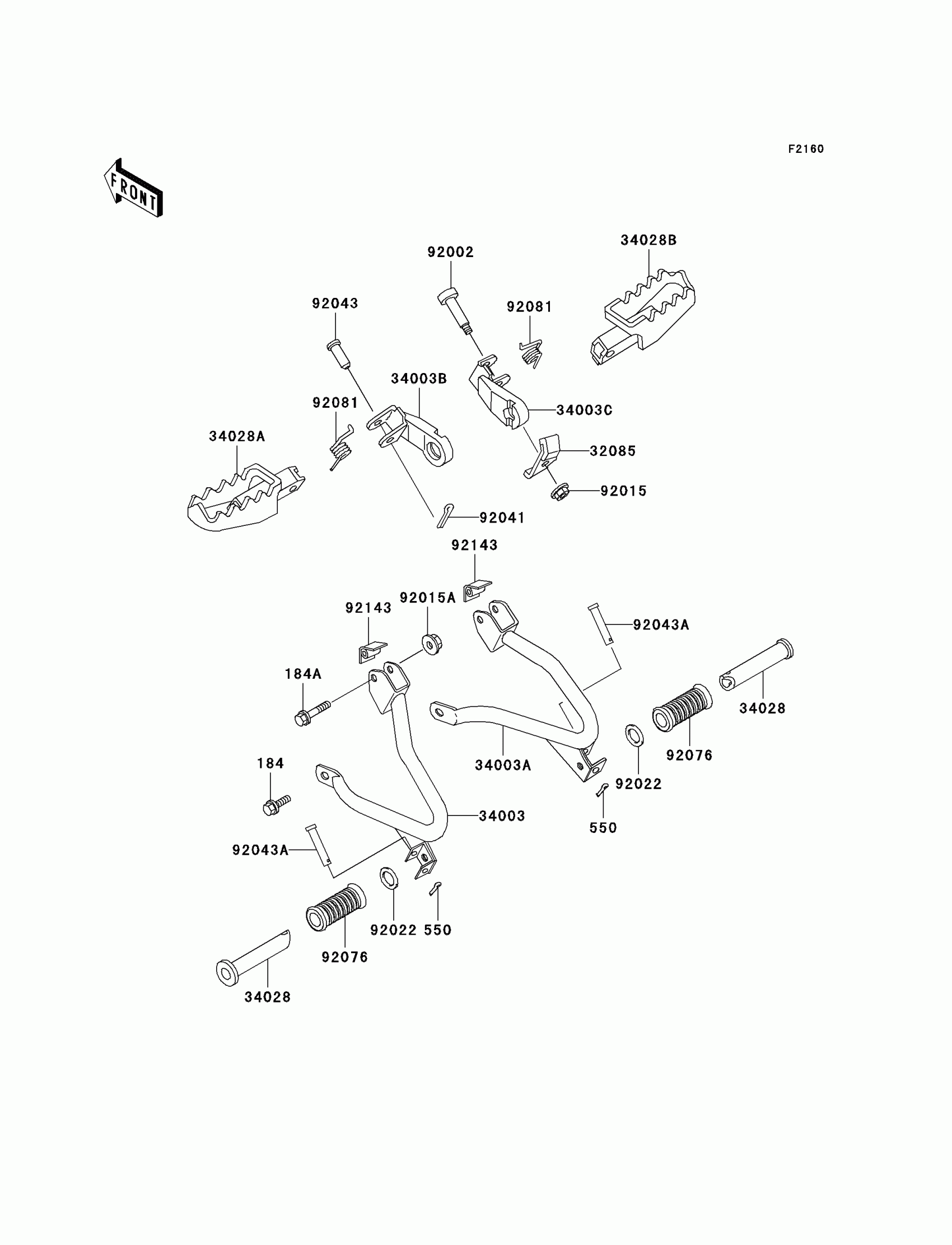

1981 Kawasaki KLR250 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR,FOOTREST

34029-010

1
Out of stock

2

1

$1.03

In stock

3

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

4

PIN,6X28

92043-1464

1

$6.44

In stock

5

RUBBER,FOOTREST

92076-027

1

$37.92

In stock

6

STEP,L.H FR FOOTREST

34028-1013

1
Out of stock

7

1

$53.95

In stock

8

PIN COTTER 2.5X16

550D2516

1
Out of stock

9

PIN,8X31

92043-080

1

$5.03

In stock

10

SPRING,STEP

92081-1133

1

$5.95

In stock
