1982 Kawasaki KLR250 Frame Fittings Diagram

← All diagrams

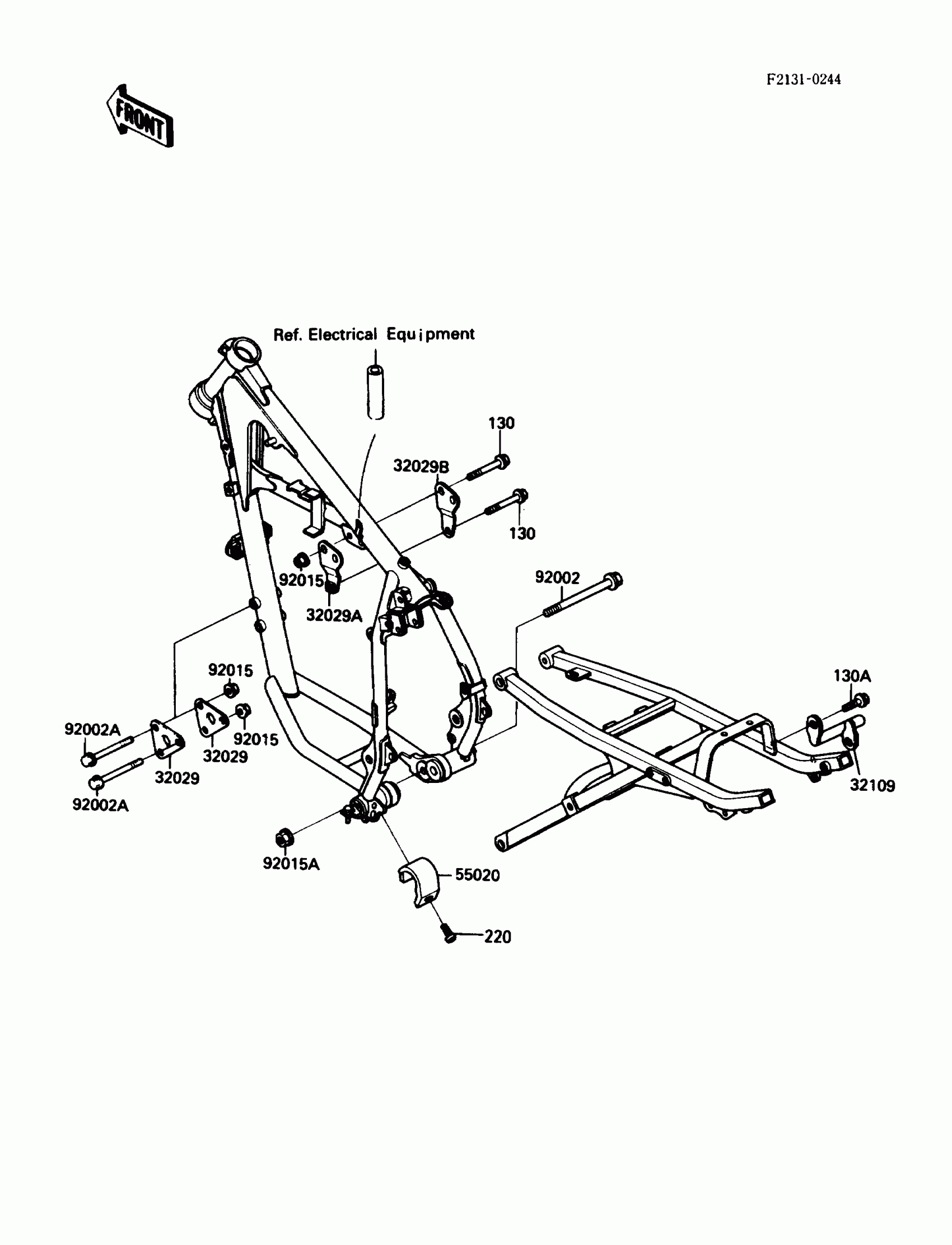

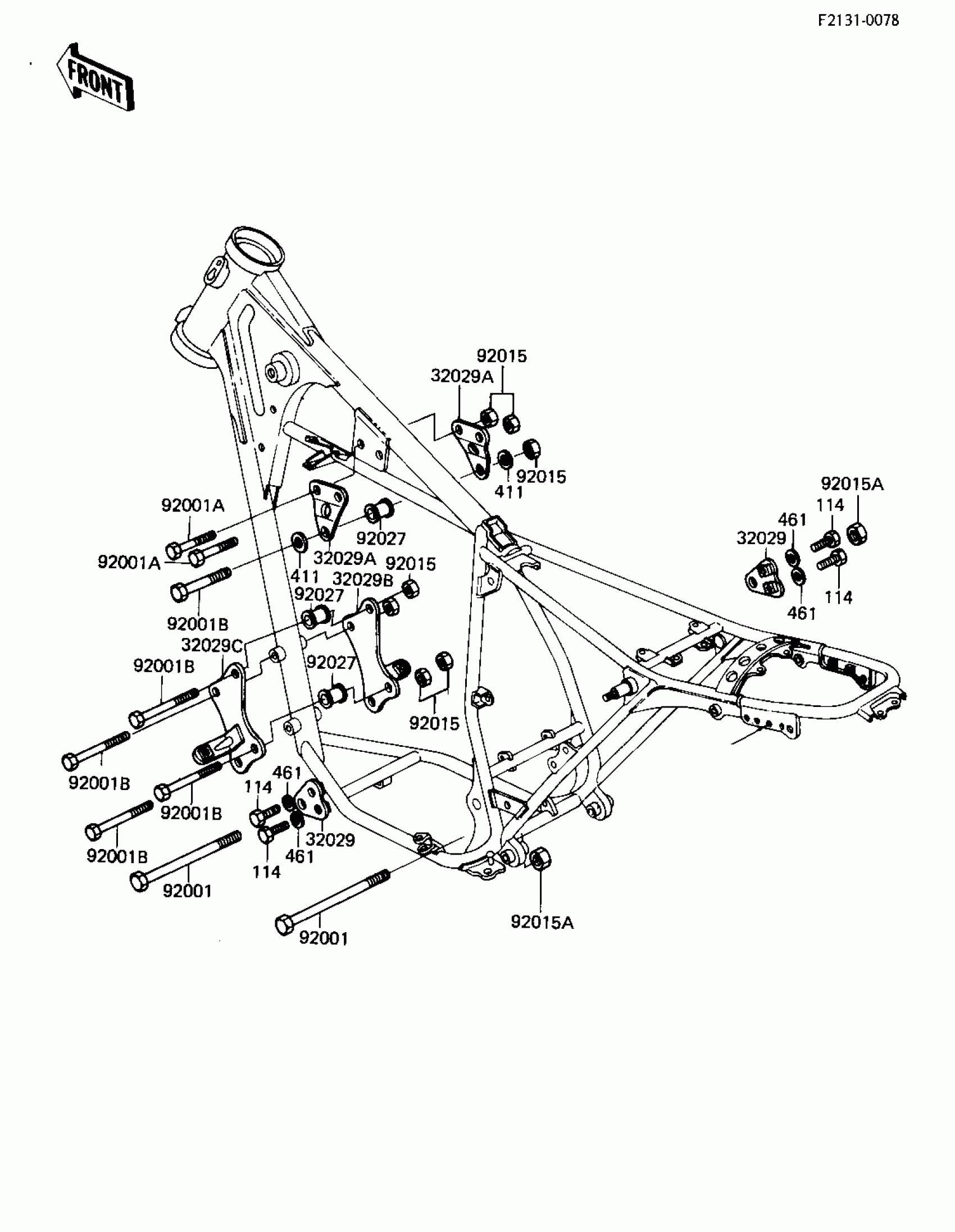

Find the part on the Frame Fittings diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Kawasaki KLR250 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET,ENGINE

32029-1008

1

$8.58

In stock

32029A

BRACKET,ENGINE,HEAD

32029-1083

1
Out of stock

32029B

BRACKET,ENGINE,R.H.

32029-1128

1

$13.42

In stock

32029C

1

$14.75

In stock

92001

BOLT,FLANGED,10X110

92001-1602

1

$10.63

In stock

92001A

BOLT,FLANGED,8X45

92001-1579

1

$4.92

In stock

92001B

BOLT,FLANGED,8X85

92001-1596

1
Out of stock

92015

NUT,LOCK,8MM

92015-1124

1
Out of stock

92015A

NUT,10MM

92015-1429

1

$5.45

In stock

92027

COLLAR,

92027-1180

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
