1986 Kawasaki KLR250 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1986 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

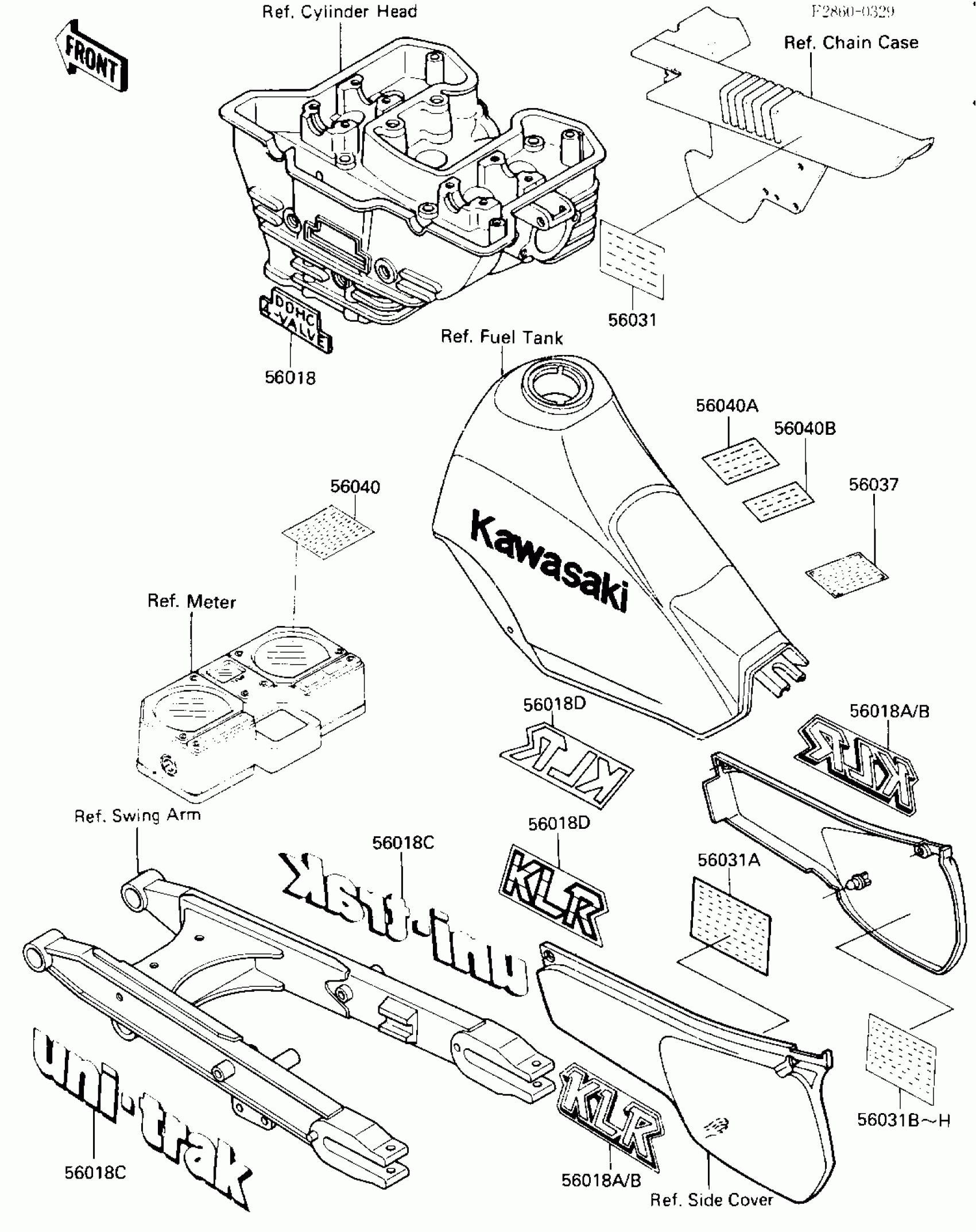

1986 Kawasaki KLR250 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56018

MARK,CYLINDER HEAD

56018-1483

1

$24.97

In stock

56018C

1

$18.37

In stock

56018D

1

$16.80

In stock

56031

LABEL-MANUAL,CHAIN

56031-1369

1
Out of stock

56031A

1

$4.76

In stock

56031B

LABEL-MANUAL

56031-1389

1

$2.68

In stock

56031C

LABEL-MANUAL

56031-1389

1

$2.68

In stock

56031D

LABEL-MANUAL

56031-1389

1

$2.68

In stock

56031E

LABEL-MANUAL

56031-1389

1

$2.68

In stock

56031F

1

$4.97

In stock

56031G

1

$4.97

In stock

56031H

1

$4.97

In stock

56037

LABEL-SPECIFICATION,TIRE&LOAD

56037-1295

1
Out of stock

56040

1

$5.32

In stock

56040A

LABEL-WARNING,BREAK IN CAUTION

56040-1008

1
Out of stock

56040B

LABEL-WARNING,EVAPO

56040-1121

1

$4.83

In stock
