1989 Kawasaki KLR250 Ignition Switch Diagram

← All diagrams

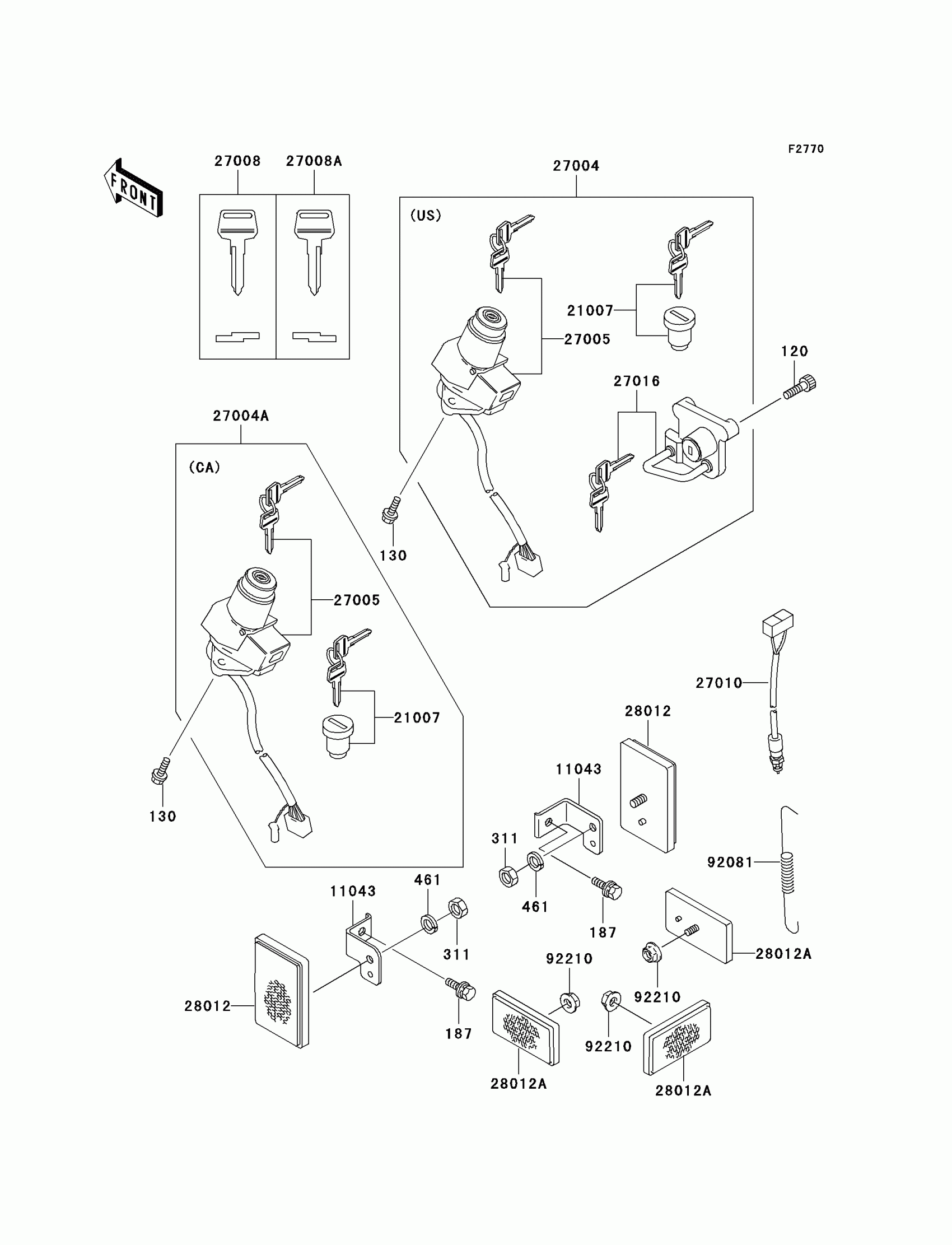

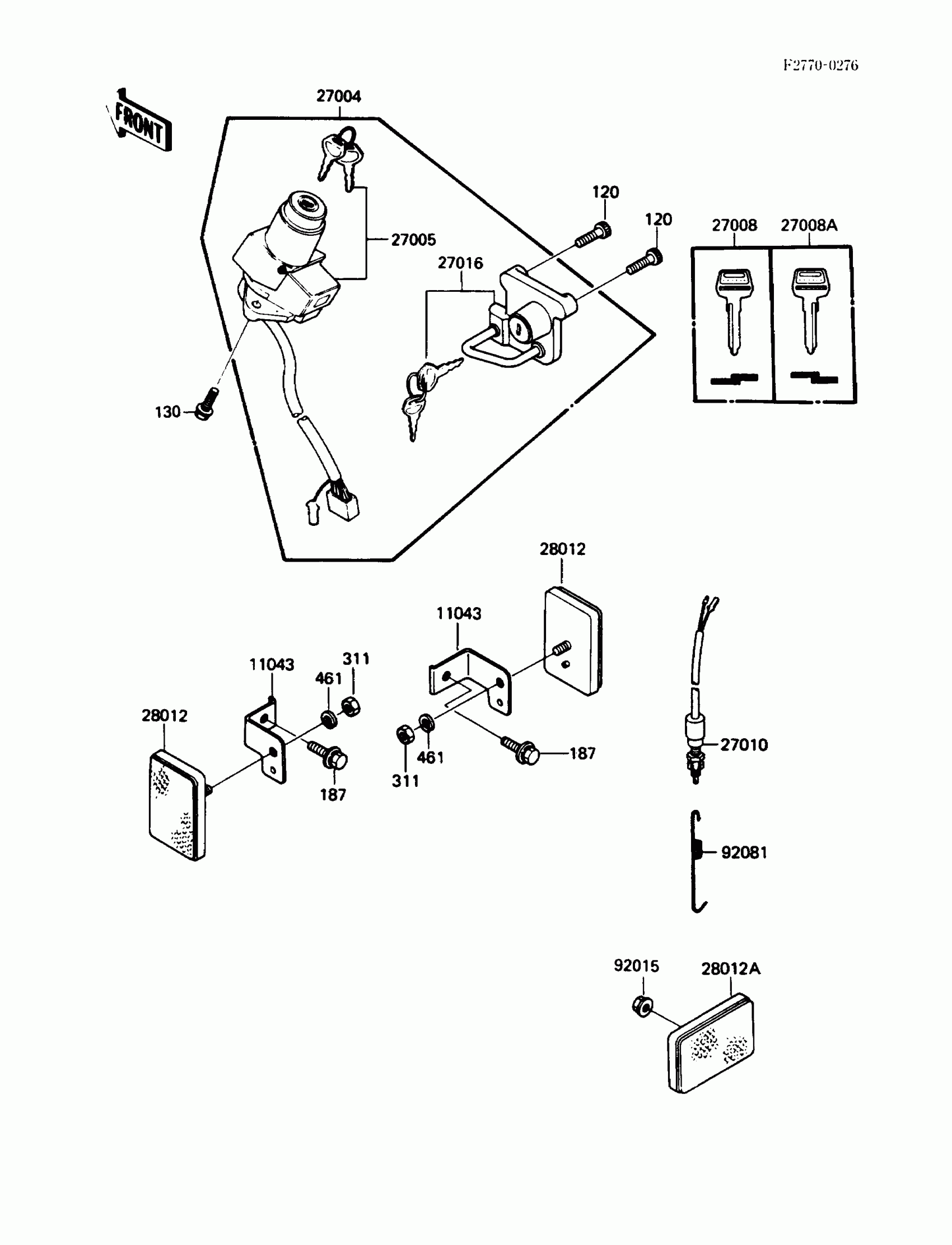

Find the part on the Ignition Switch diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

1

$12.19

In stock

27004

SWITCH-ASSY

27004-5218

1
Out of stock

27005

1

$191.40

In stock

27008

KEY-LOCK,BLANK,#A

27008-1034

1

$17.63

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1035

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1

$37.98

In stock

27016

LOCK-ASSY,HELMET

27016-5075

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1

$20.82

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

120

BOLT-SOCKET,6X12

120S0612

1
Out of stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock

187

BOLT-UPSET-WSP

187C0614

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
