1989 Kawasaki KLR250 Headlight Diagram

← All diagrams

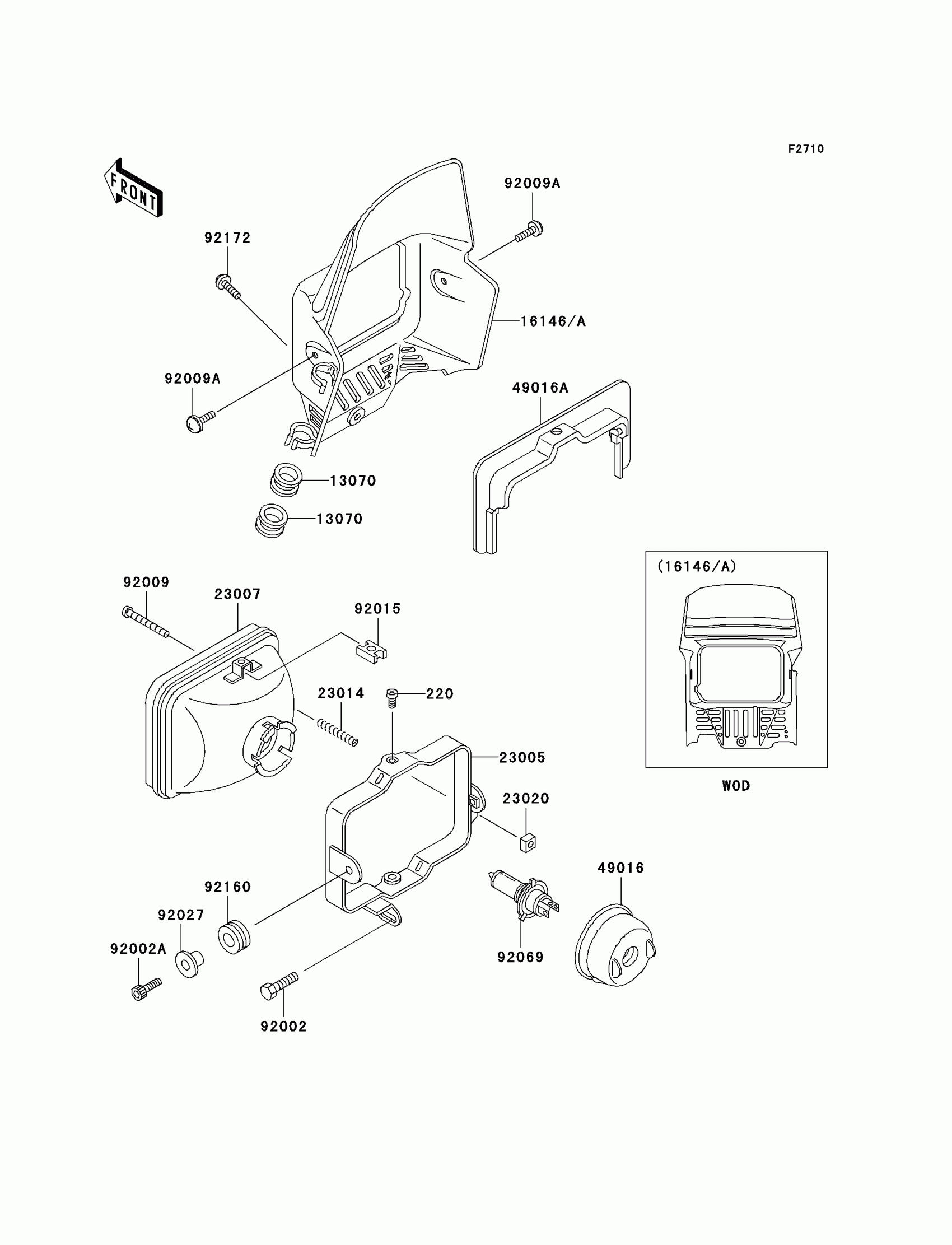

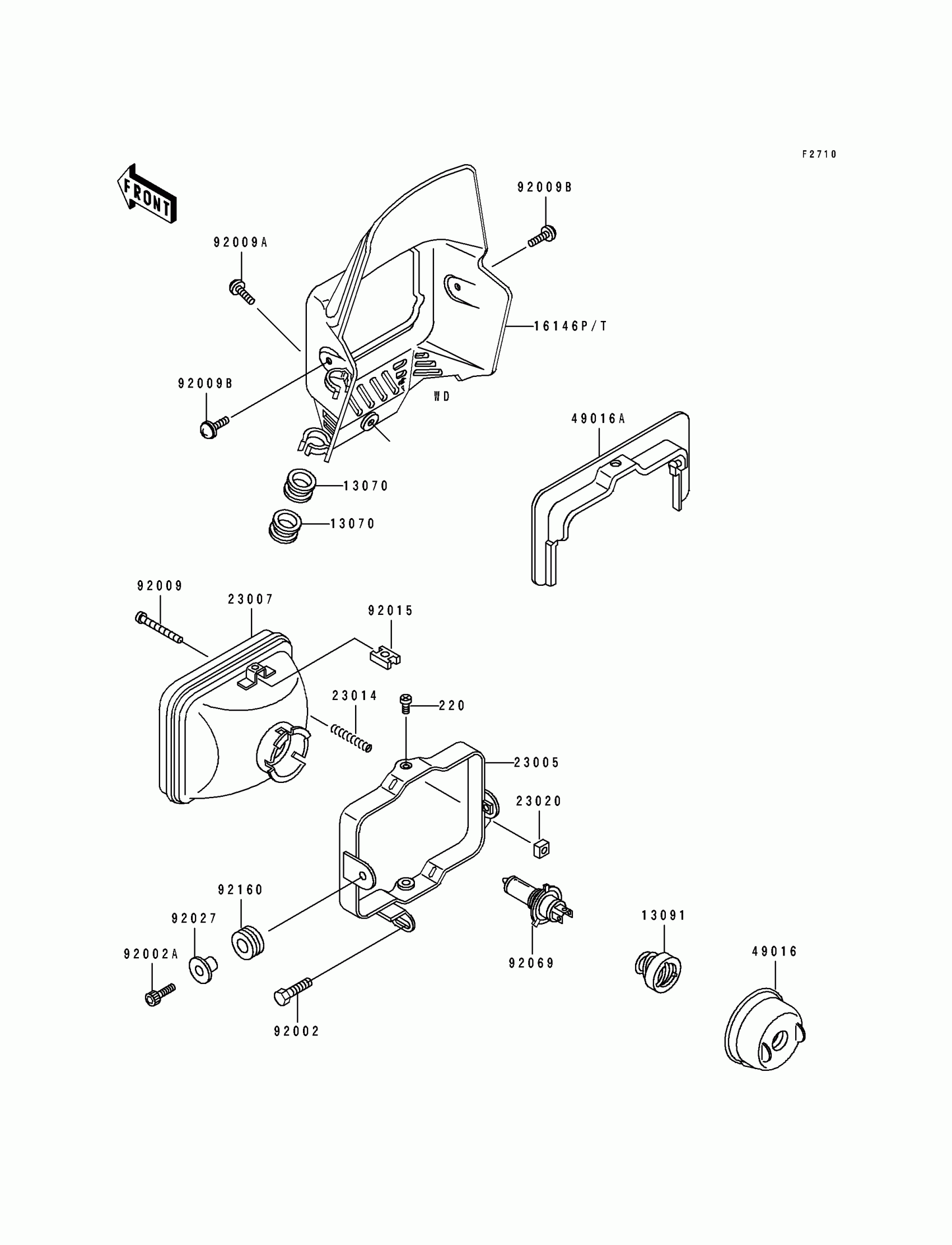

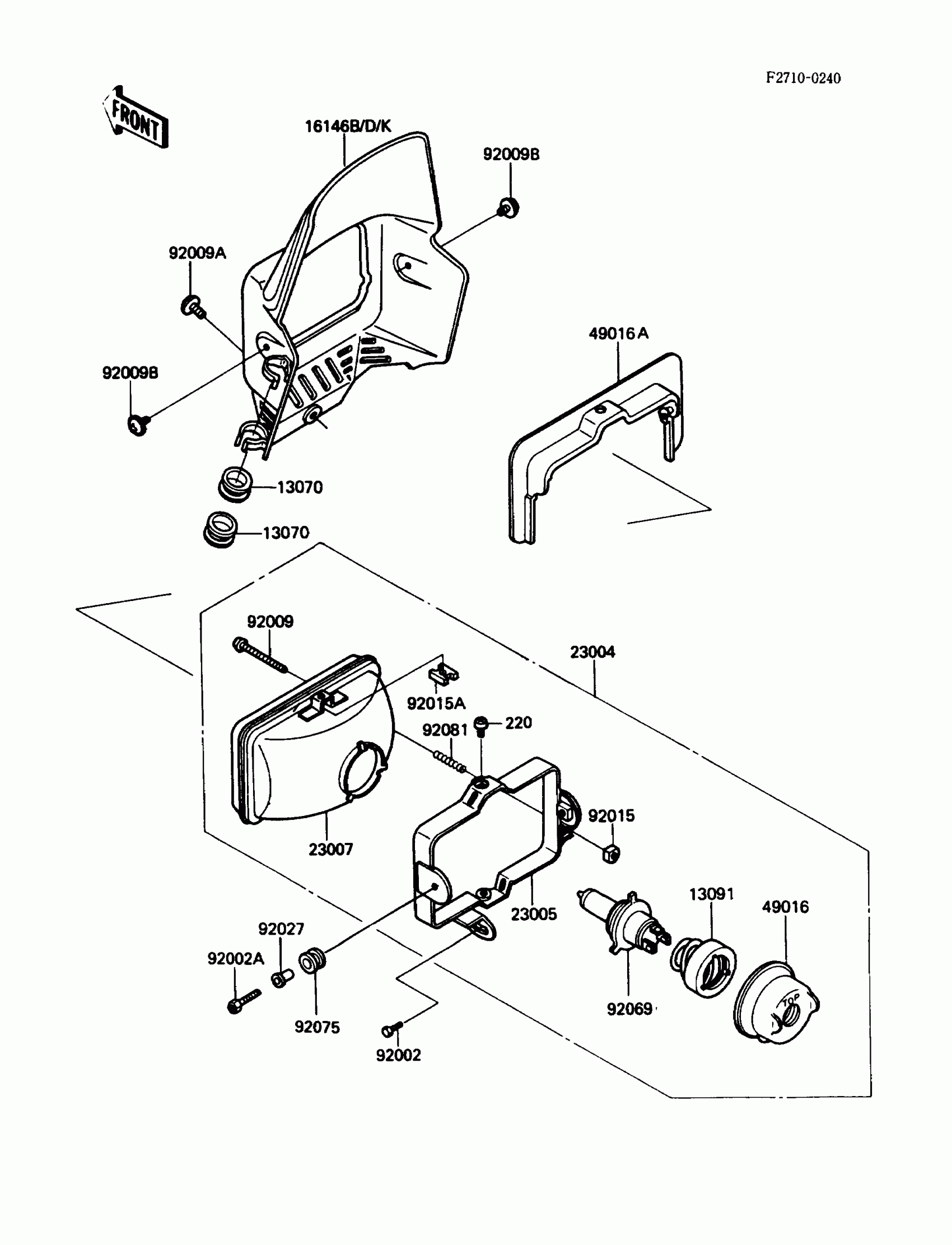

Find the part on the Headlight diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE HOSE

13070-1107

1
Out of stock

13091

HOLDER,SOCKET

13091-1558

1

$11.36

In stock

16146K

1

$156.97

In stock

23004

LAMP-HEAD

23004-1156

1

$212.72

In stock

23005

BODY-COMP-HEAD LAMP

23005-1052

1

$47.15

In stock

23007

LENS-COMP,HEAD LAMP

23007-1102

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1037

1

$11.19

In stock

49016A

1

$33.72

In stock

92002

BOLT,6X14

92002-1260

1

$0.92

In stock

92002A

BOLT

92002-1319

1
Out of stock

92009

SCREW,4X48

92009-1065

1
Out of stock

92009A

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009B

SCREW,6X8

92009-1294

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

92015-1354

1

$3.90

In stock

92027

1

$8.16

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER

92075-1569

1

$4.37

In stock

92081

1

$3.19

In stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock
