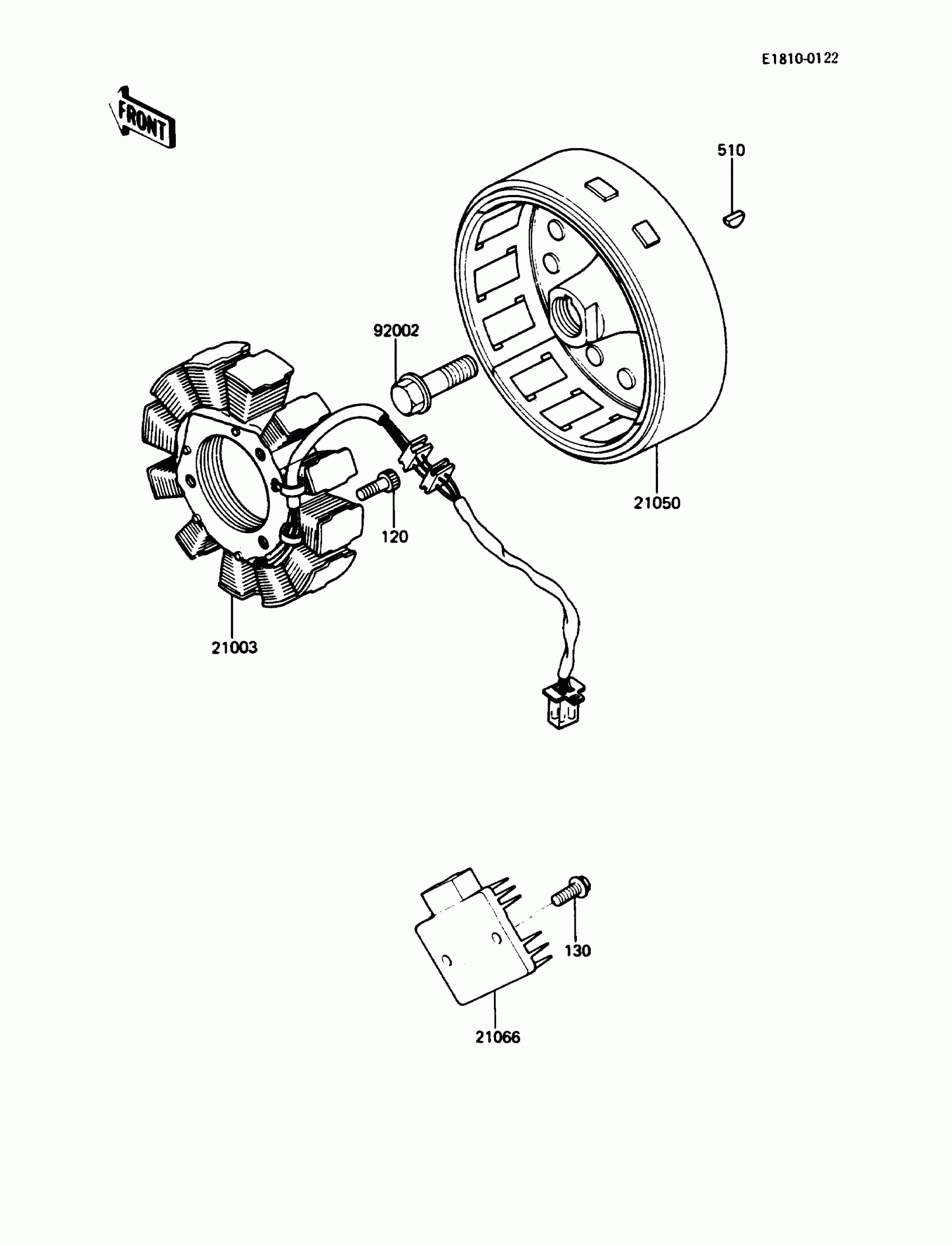

Find the part on the Generator diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

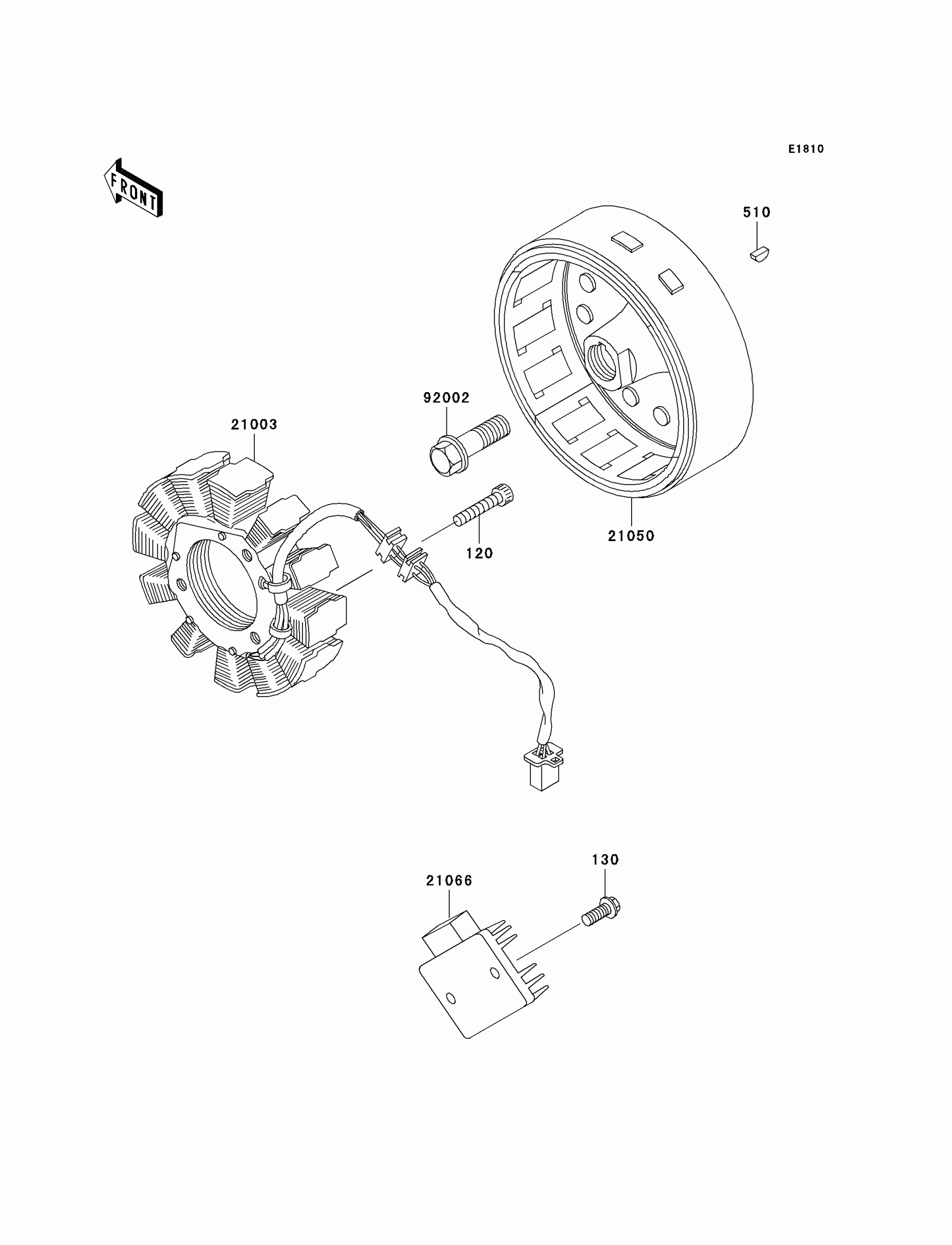

1989 Kawasaki KLR250 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1121

1

$570.91

In stock

21050

FLYWHEEL

21050-1109

1

$579.87

In stock

21066

REGULATOR-VOLTAGE

21066-1052

1

$104.96

In stock

92002

BOLT,FLANGED,12X40

92002-1693

1
Out of stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

130

BOLT-FLANGED,6X16

130G0616

1
Out of stock

510

KEY-WOODRUFF

510A3300

1

$7.15

In stock
