1989 Kawasaki KLR250 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

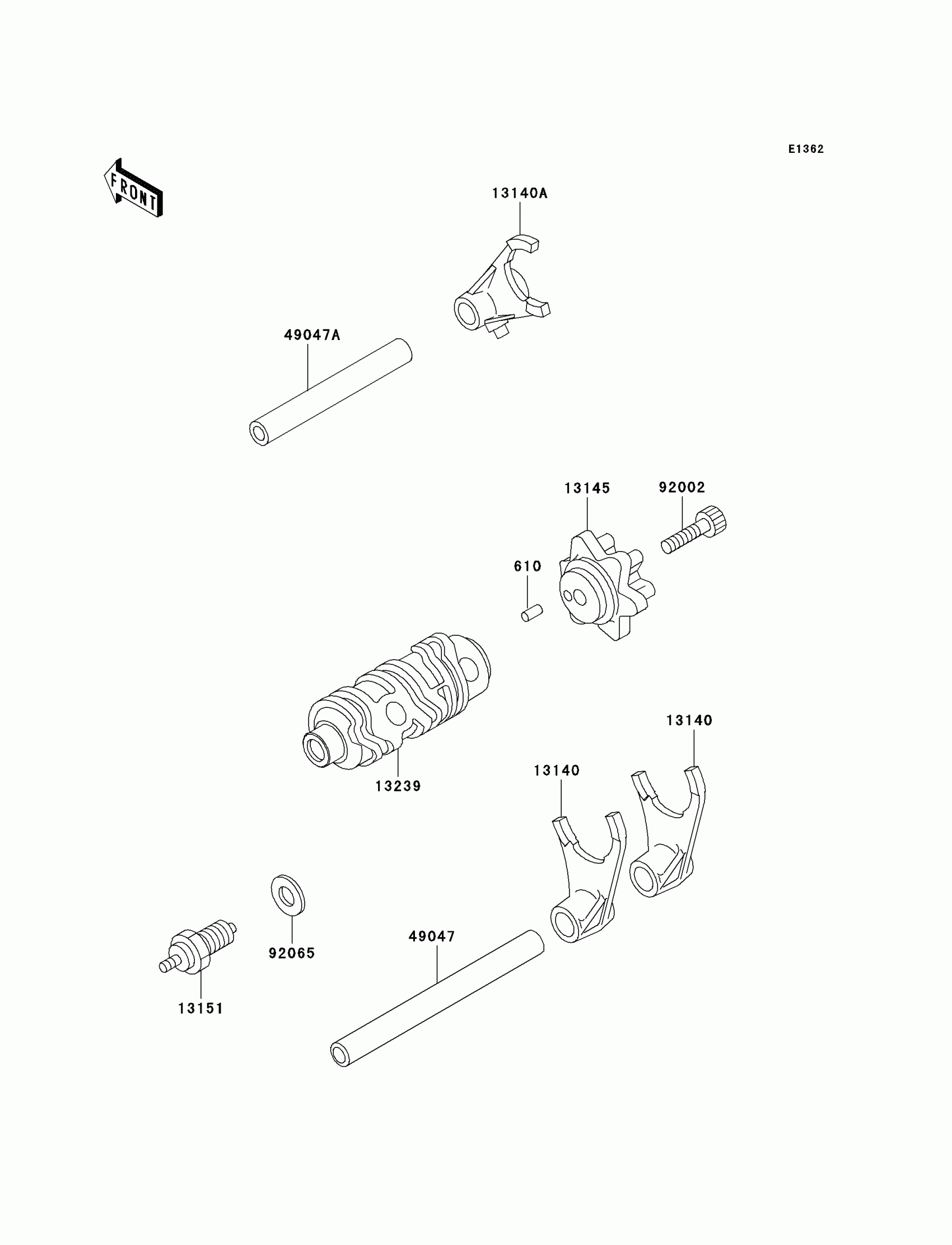

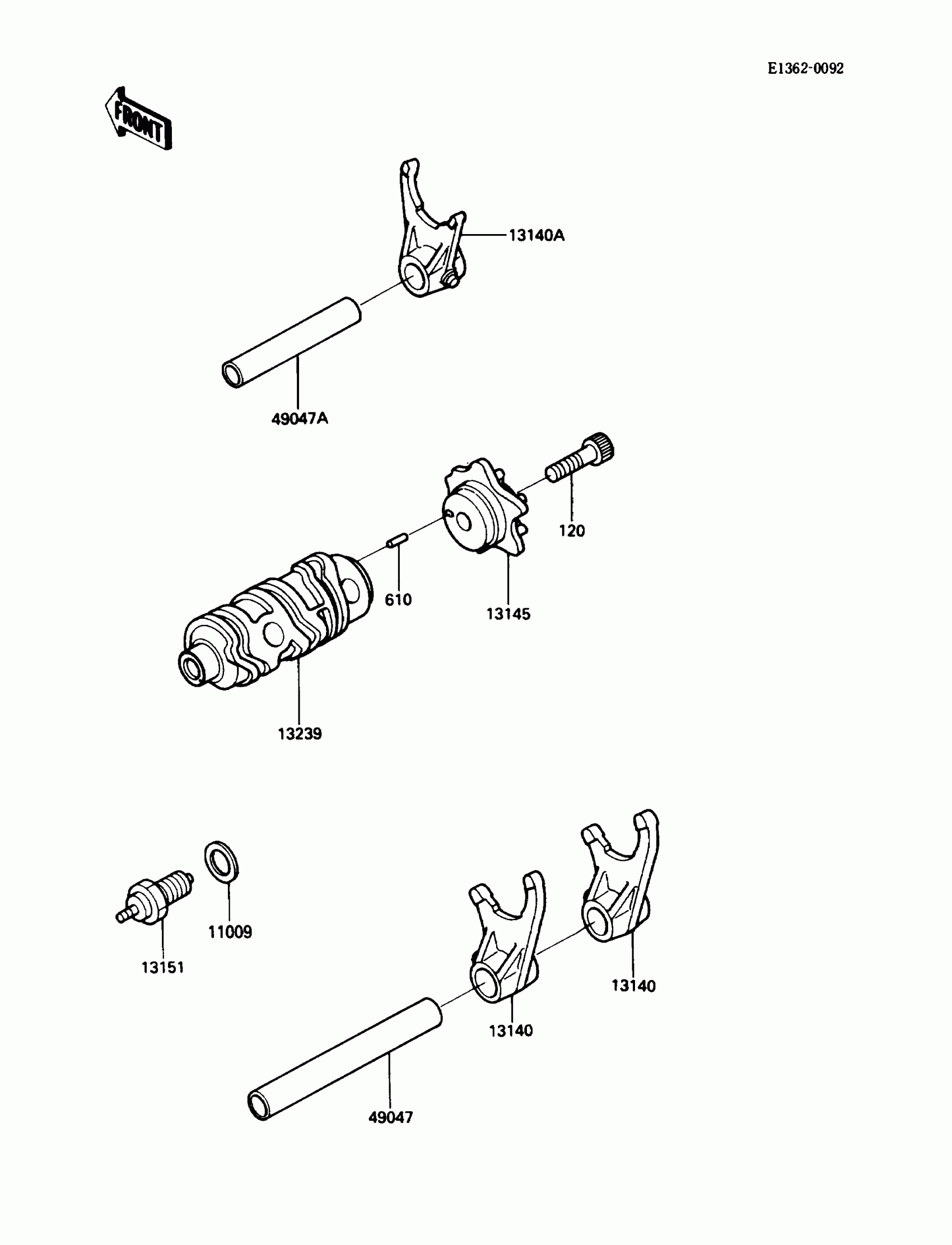

1989 Kawasaki KLR250 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

13140

FORK-SHIFT

13140-1116

1

$112.13

In stock

13140A

FORK-SHIFT

13140-1117

1

$96.53

In stock

13145

CAM-CHANGE DRUM

13145-1054

1

$47.30

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1113

1
Out of stock

49047

ROD-SHIFT,L=106.7

49047-1056

1

$21.76

In stock

49047A

ROD-SHIFT,L=71.7

49047-1057

1

$16.34

In stock

120

BOLT-SOCKET,6X25

120P0625

1
Out of stock

610

ROLLER,4X10

610A0410

1

$3.43

In stock
