1982 Kawasaki KLR250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

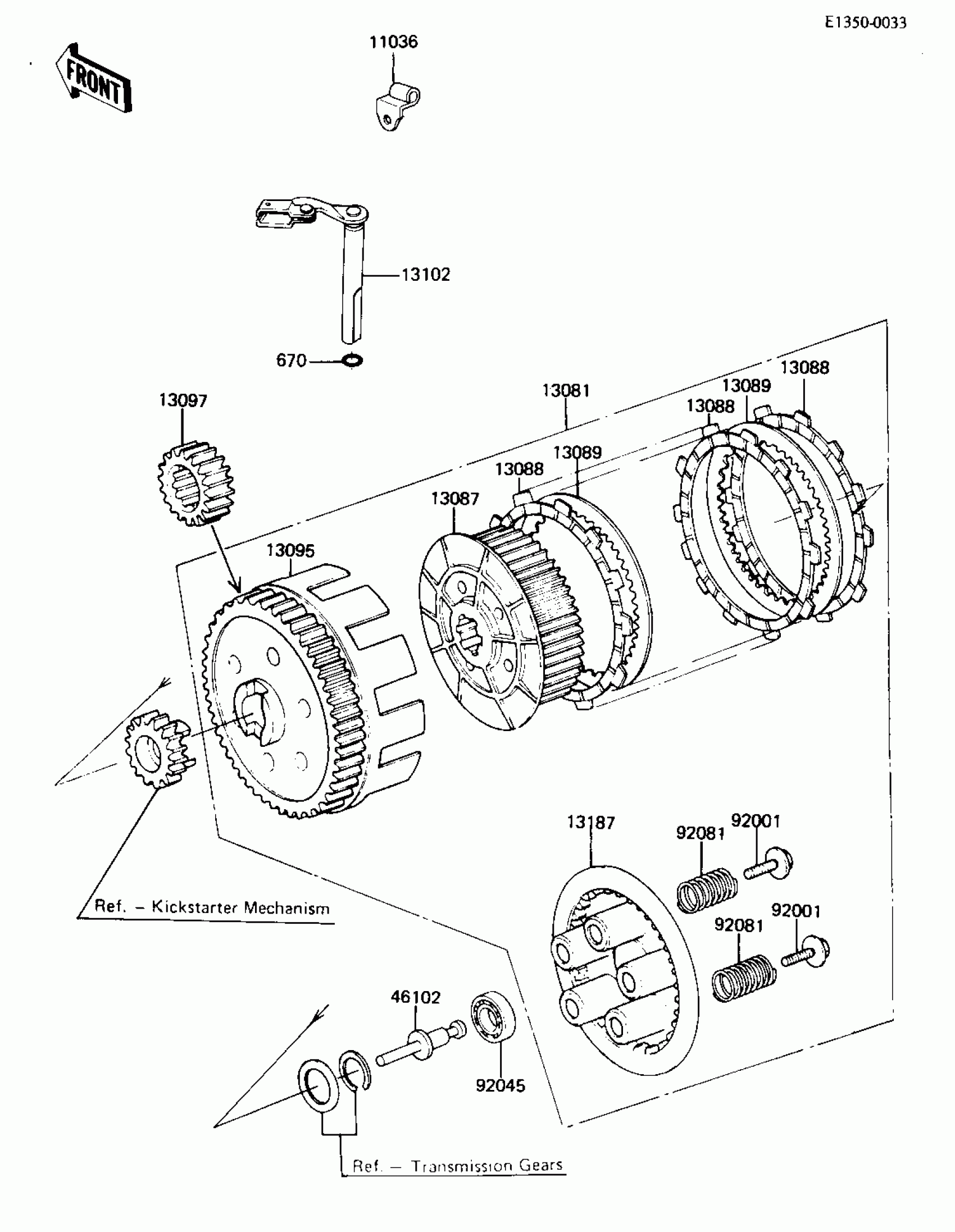

1982 Kawasaki KLR250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET,CLUTCH CABLE

11045-1081

1
Out of stock

13081

CLUTCH-ASSY

13081-1068

1
Out of stock

13087

HUB,CLUTCH

13087-1001

1

$110.74

In stock

13088

PLATE,CLUTCH FRICTION

13088-1008

1
Out of stock

13089

PLATE-CLUTCH,T=1.6

13089-013

1

$10.41

In stock

13095

HOUSING,CLUTCH

13095-1015

1
Out of stock

13097

GEAR,PRIMARY

13121-035

1
Out of stock

13102

RELEASE,CLUTCH

13102-1011

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1008

1
Out of stock

46102

ROD,CLUTCH PUSH

46102-1033

1
Out of stock

92001

BOLT,CLUTCH SPRING,6X18

92001-1576

1
Out of stock

92045

1

$12.85

In stock

92081

SPRING,CLUTCH

92081-083

1

$6.77

In stock

670

O RING,9MM

670B1509

1

$2.92

In stock
