1982 Kawasaki KLR250 Transmission Diagram

← All diagrams

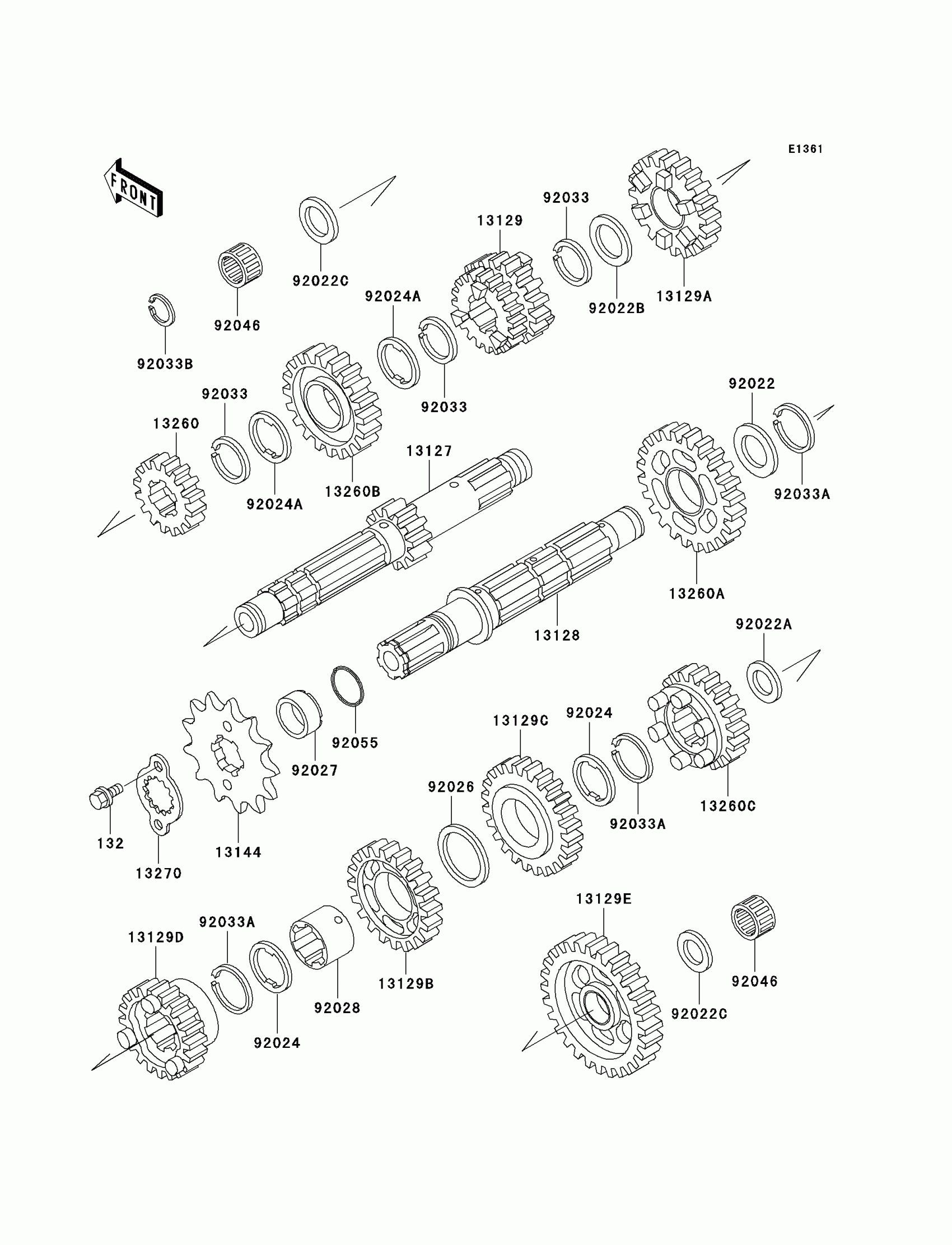

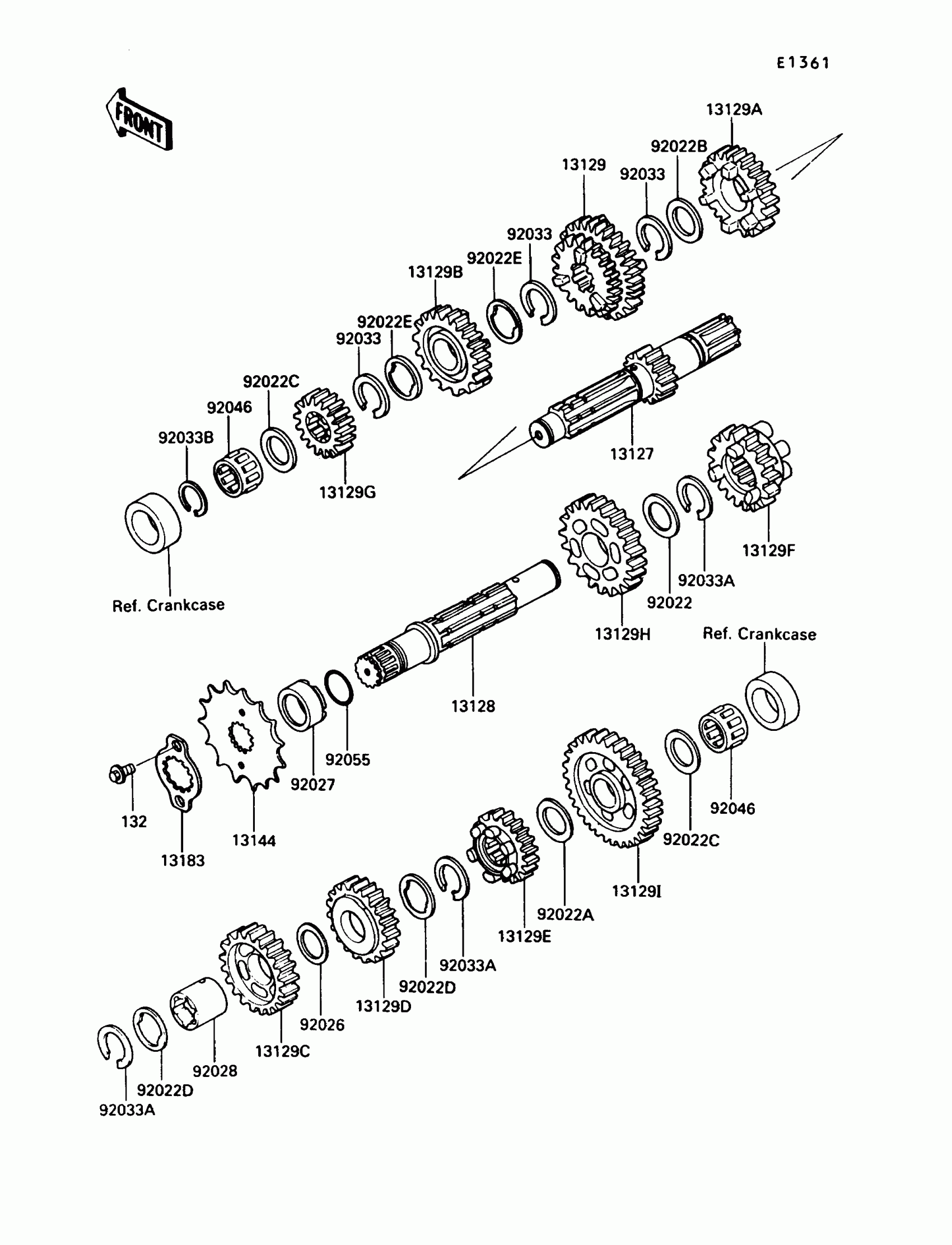

Find the part on the Transmission diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

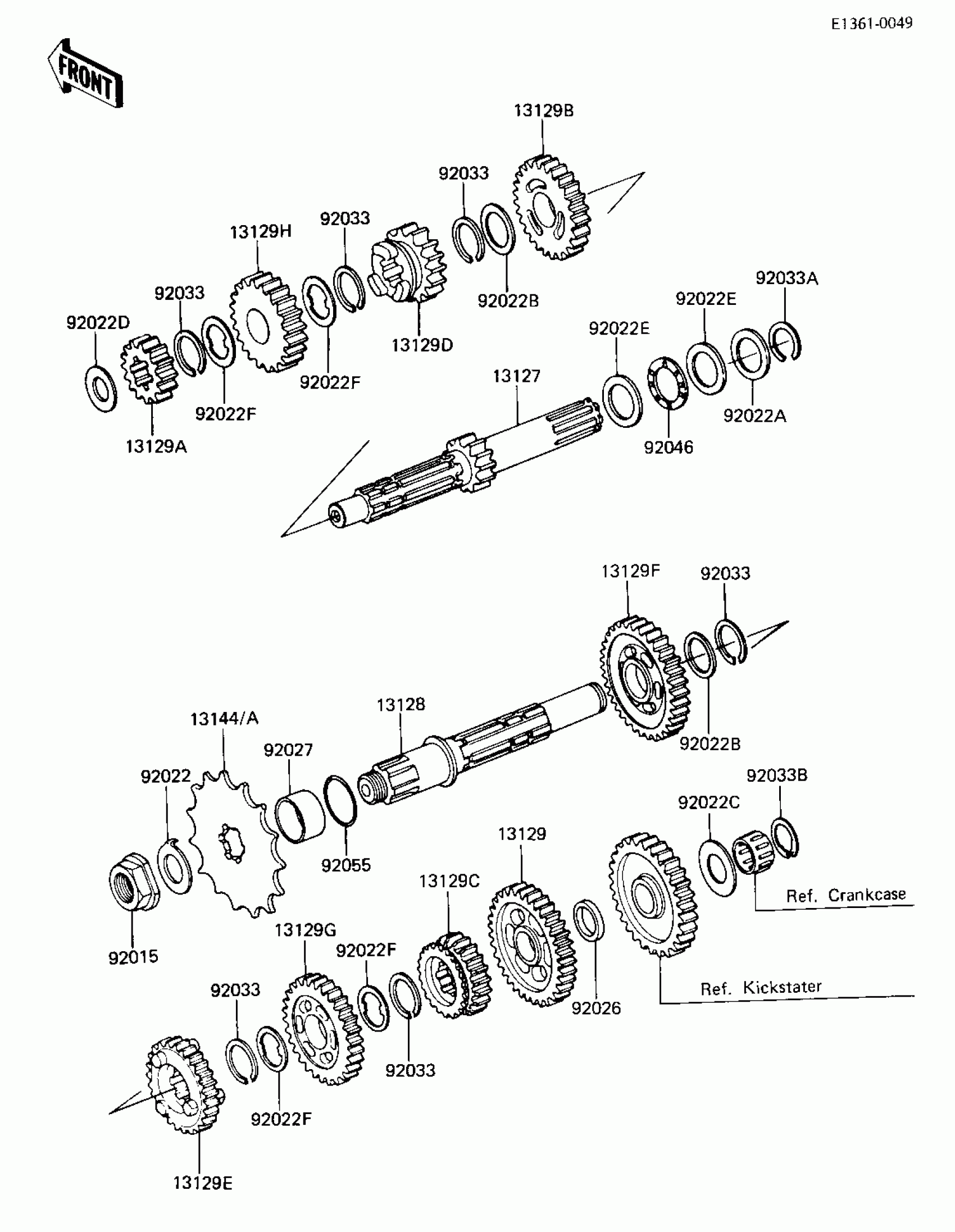

1982 Kawasaki KLR250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION IN

13127-1042

1
Out of stock

13128

SHAFT,OUTPUT

13128-1007

1
Out of stock

13129

LOW GEAR,OUTPUT SHAFT

13129-058

1
Out of stock

13129A

2ND GEAR,DRIVE SHAFT

13129-1022

1
Out of stock

13129B

TOP GEAR,DRV SHFT,24T

13129-1050

1
Out of stock

13129C

TOP GEAR,OUT SHFT,21T

13129-1051

1
Out of stock

13129D

GEAR,INPUT,3RD,20T

13129-1284

1
Out of stock

13129E

GEAR,OUTPUT 4TH,21T

13129-1285

1
Out of stock

13129F

2ND GEAR,OUTPUT 26T

13131-044

1
Out of stock

13129G

3RD GEAR,OUTPUT SHAFT

13133-044

1
Out of stock

13129H

4TH GEAR,DRIVE SHAFT

13134-026

1
Out of stock

13144

SPROCKET-OUTPUT,14T

13144-1005

1
Out of stock

13144A

SPROCKET-OUTPUT,13T

13144-1027

1

$36.53

In stock

92015

NUT,LOCK,16M/M

92015-1013

1
Out of stock

92022

WASHER,LOCK

92022-1017

1
Out of stock

92022A

1

$7.04

In stock

92022B

WASHER,22.3X27X0.5

92022-198

1
Out of stock

92022C

WASHER,17.3X30X1.4

92022-270

1
Out of stock

92022D

WASHER,THRUST,15MM

92022-279

1
Out of stock

92022E

WASHER,PLAIN

92022-314

1
Out of stock

92022F

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

92026

SPACER

92026-114

1

$4.76

In stock

92027

COLLAR,ENGINE SPROCKT

92027-287

1
Out of stock

92033

1

$3.94

In stock

92033A

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92033B

RING-SNAP

92033-032

1

$3.94

In stock

92046

BRG,NEEDLE,AXK1104

92046-052

1

$15.12

In stock

92055

RING-O,17.5X1.5

92055-022

1

$4.93

In stock
