1982 Kawasaki KLR250 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

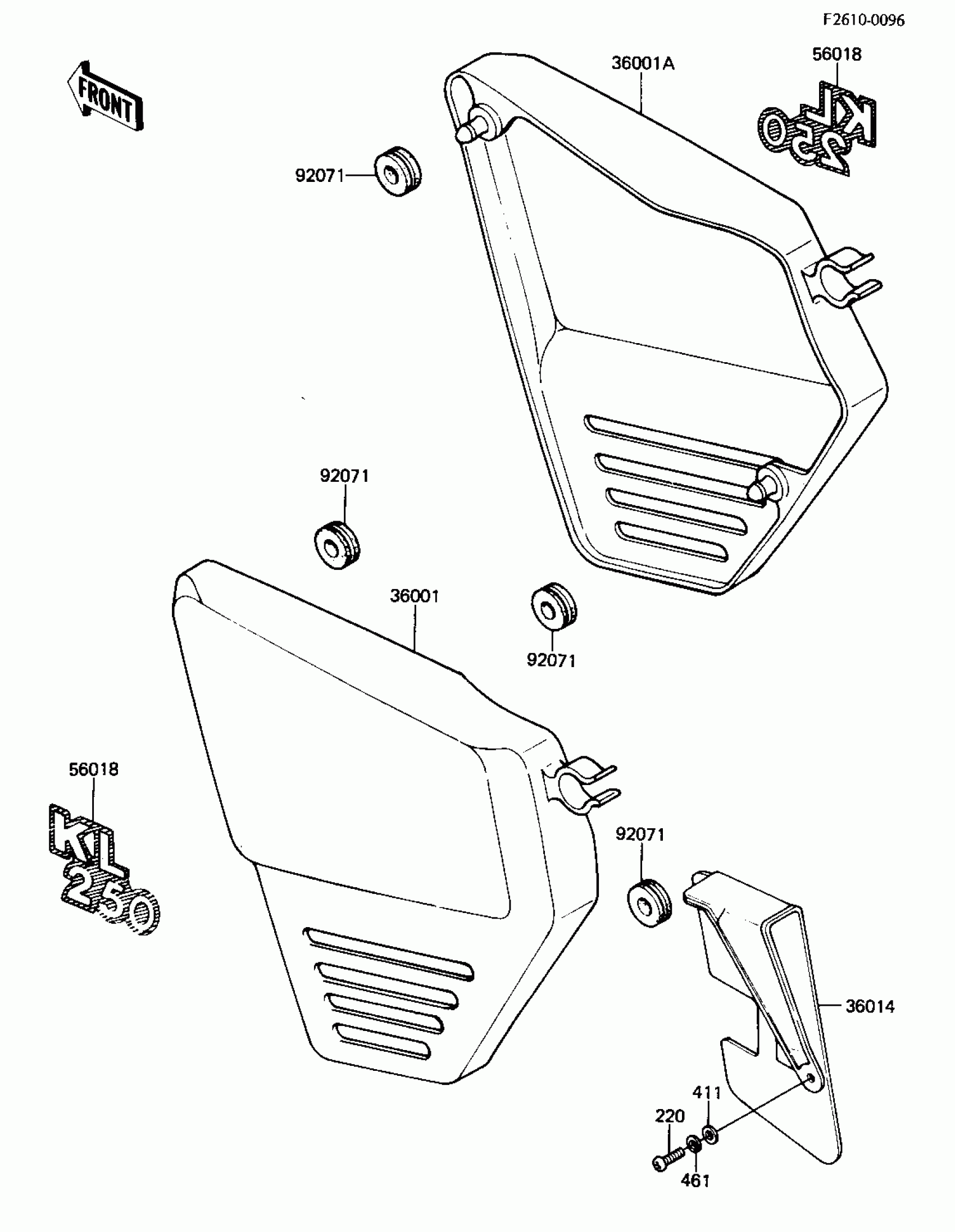

1982 Kawasaki KLR250 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,F.RED

36001-1059-6L

1

$76.08

In stock

36001A

COVER-SIDE,RH,F.RED

36001-1060-6L

1

$88.73

In stock

36014

CASE,CHAIN

36014-1012

1

$75.09

In stock

56018

MARK,SIDE COVER

56018-1033

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
