1982 Kawasaki KLR250 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

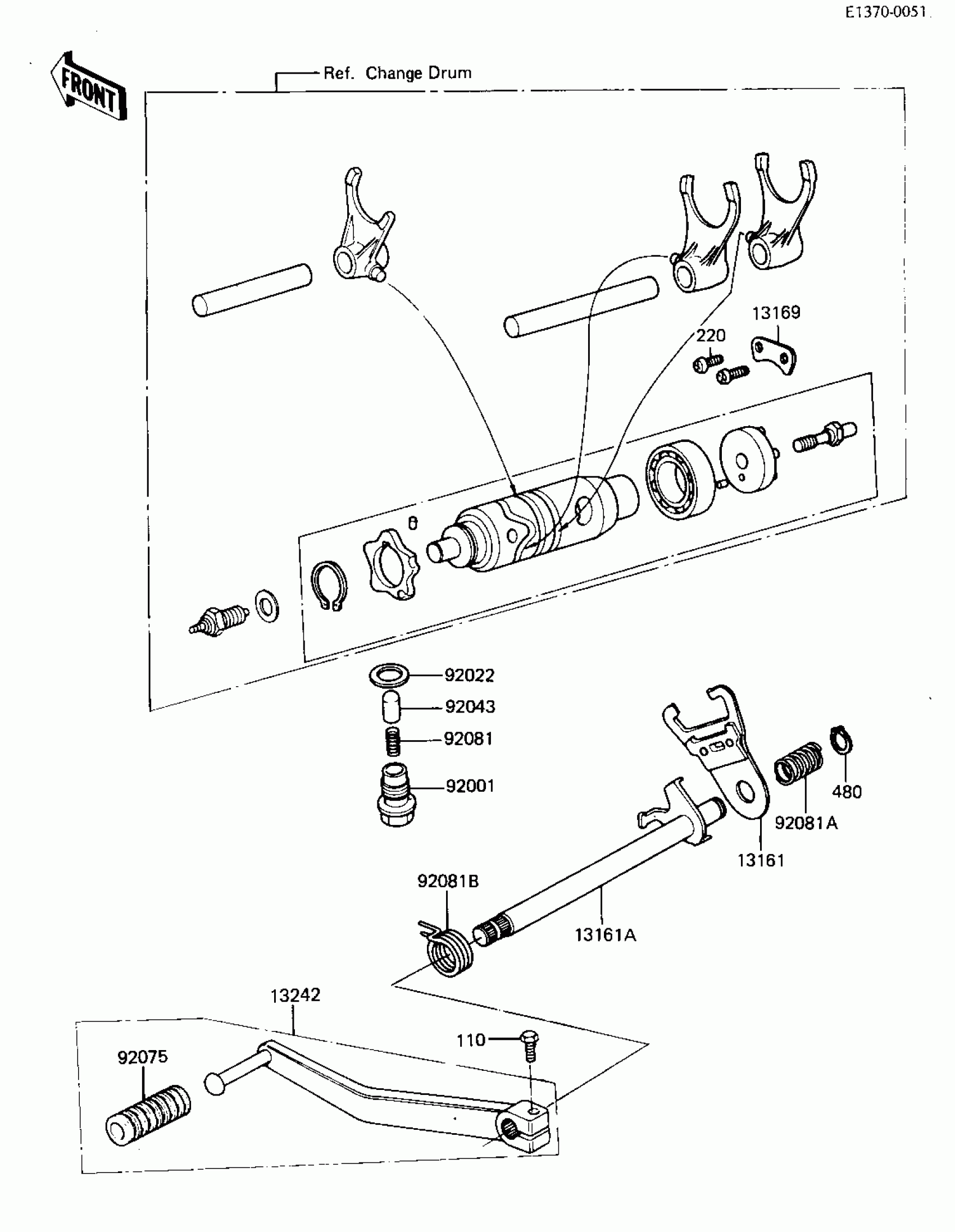

1982 Kawasaki KLR250 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER ASSY,GEAR SHIFT

13161-044

1
Out of stock

13161A

LEVER ASSY,GEAR SHIFT

13161-1013

1
Out of stock

13169

PLATE,GEAR CHANGE DRUM

13169-014

1
Out of stock

13242

PEDAL GEAR CHANGE

13242-1066

1
Out of stock

92001

BOLT,NEUTRAL POSITION

92001-182

1
Out of stock

92022

WASHER,16.5X23X2

92022-324

1
Out of stock

92043

PIN,NEUTRAL POSITIONG

92043-131

1
Out of stock

92075

DAMPER,CHANGE PEDAL

92160-1036

1
Out of stock

92081

SPRING

92081-112

1
Out of stock

92081A

SPRING,COIL

92081-149

1
Out of stock

92081B

SPRING,CHG PEDL RTRN

92083-028

1
Out of stock

110

BOLT-UPSET,6X20

112G0620

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock
