1981 Kawasaki KLR250 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1981 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

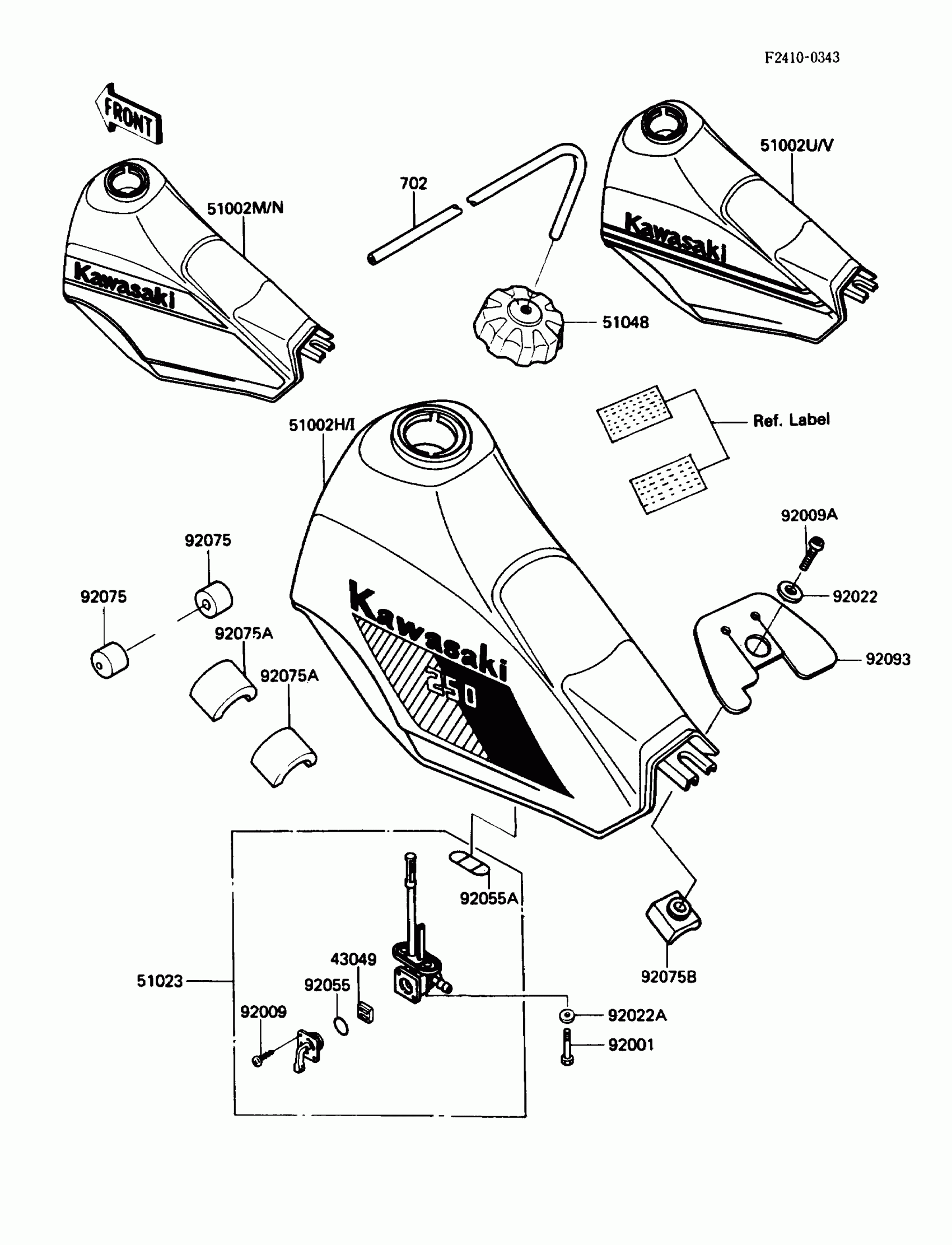

1981 Kawasaki KLR250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK-FUEL,C.ORANGE

51001-1021-D1

1
Out of stock

1

TANK-FUEL,F.RED

51001-5084-B1

1
Out of stock

2

TAP ASSY,FUEL

51023-1001

1
Out of stock

3

RING,TAP FLANGED

51039-003

1

$4.97

In stock

4

O RING,10MM

670B2010

1

$1.31

In stock

5

FILTER,FUEL TAP

14043-1002

1

$4.03

In stock

6

GASKET,FUEL TAP CUP

11009-1013

1

$3.86

In stock

7

BOLT,6X20

92001-1091

1

$3.12

In stock

8

WASHER-PLAIN

92022-183

1
Out of stock

9

BRACKET,

11034-1713

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

WASHER PLAIN 6MM

411B0600

1
Out of stock

12

BAND,FUEL TANK

92072-1013

1
Out of stock

13

DAMPER,FUEL TANK

92075-101

1

$4.93

In stock

14

DAMPER,FUEL TANK

92075-1151

1

$18.36

In stock

15

DAMPER,FUEL TANK

92075-1152

1
Out of stock

16

CAP-ASSY-TANK,FUEL

51048-1004

1
Out of stock

17

GASKET,FUEL TANK CAP

51059-006

1
Out of stock

18

TUBE-RUBBER 5X400

702A05400

1
Out of stock

19

DAMPER

92075-167

1

$5.10

In stock
