1989 Kawasaki KLR250 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

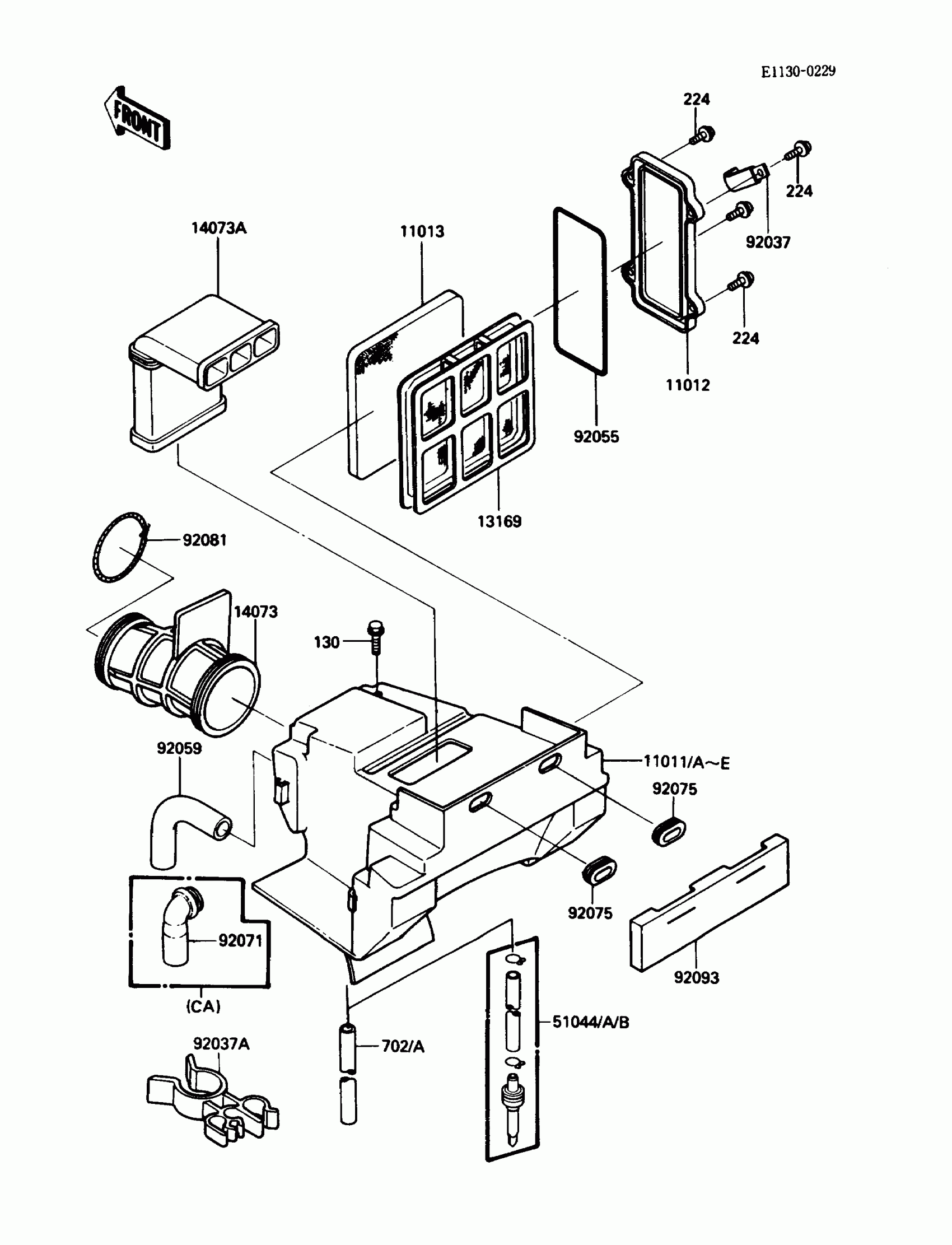

1989 Kawasaki KLR250 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011B

CASE-AIR FILTER

11011-1275

1

$194.54

In stock

11011D

CASE-AIR FILTER

11011-1276

1

$173.46

In stock

11012

CAP,ELEMENT

11012-1661

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1117

1

$15.10

In stock

13169

PLATE,ELEMENT

13169-1851

1
Out of stock

14073

DUCT,CARBURETOR

14073-1184

1

$32.02

In stock

14073A

DUCT,INTAKE

14073-1185

1
Out of stock

51044

TUBE-ASSY

51044-1087

1

$68.69

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP

92037-1886

1
Out of stock

92055

RING-O,AIR FILTER

92055-1254

1

$9.20

In stock

92059

TUBE,BREATHER

92059-1482

1

$17.08

In stock

92071

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92075

DAMPER,AIR FILTER

92075-1513

1
Out of stock

92081

SPRING,COIL

92081-1177

1

$7.89

In stock

92093

SEAL

92093-1187

1

$26.03

In stock

130

BOLT-FLANGED

130Y0612

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0614

1
Out of stock
