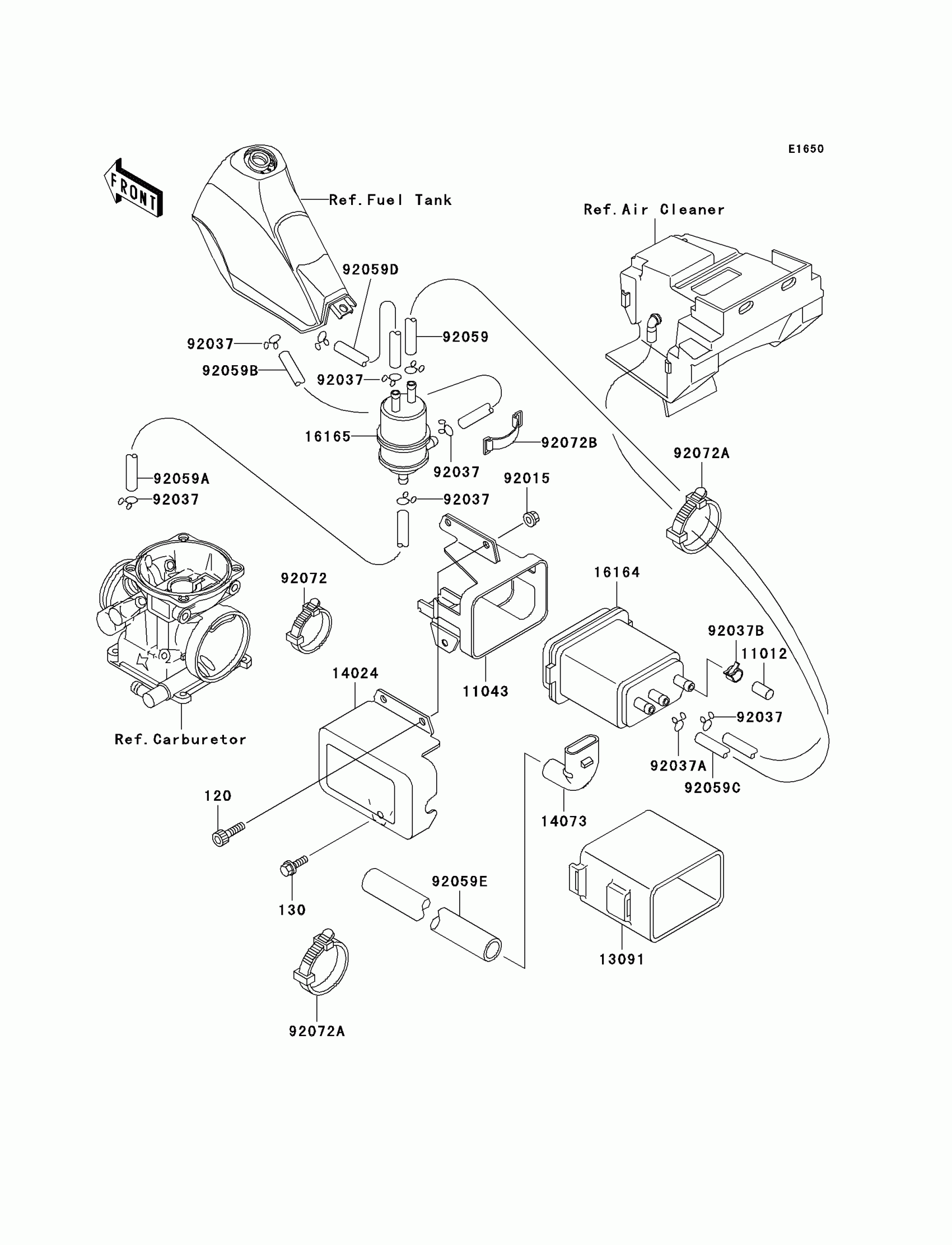

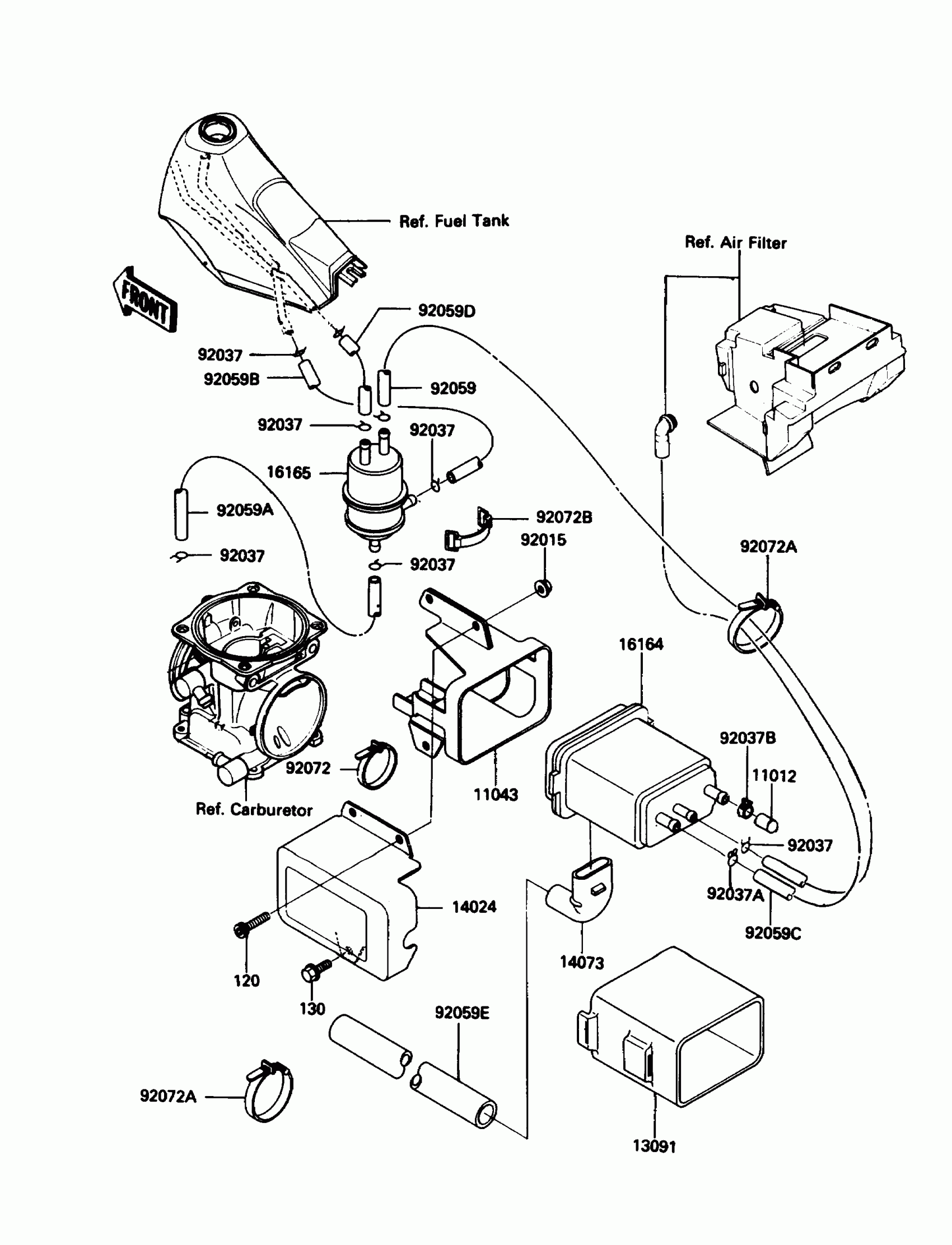

1989 Kawasaki KLR250 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

11043

BRACKET,CANISTER

11043-1180

1

$53.39

In stock

13091

HOLDER,CANISTER

13091-1176

1

$76.38

In stock

14024

COVER,CANISTER

14024-1063

1
Out of stock

14073

DUCT,CANISTER

14073-1219

1

$19.29

In stock

16164

CANISTER

16164-1001

1

$148.49

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92059

TUBE,5X9X860,BLUE

92059-1531

1

$21.24

In stock

92059A

TUBE,4X9X500,WHITE

92059-1533

1

$15.01

In stock

92059B

TUBE,5X9X430,RED

92059-1534

1

$32.75

In stock

92059C

TUBE,7X12X660,GREEN

92059-1535

1

$23.81

In stock

92059D

TUBE,5X9X255,BLUE

92059-1536

1

$21.24

In stock

92059E

TUBE,14X20X470

92059-1571

1

$37.37

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=186

92072-056

1

$3.97

In stock

92072B

BAND,L=50

92072-066

1

$12.72

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED

130C0608

1
Out of stock
