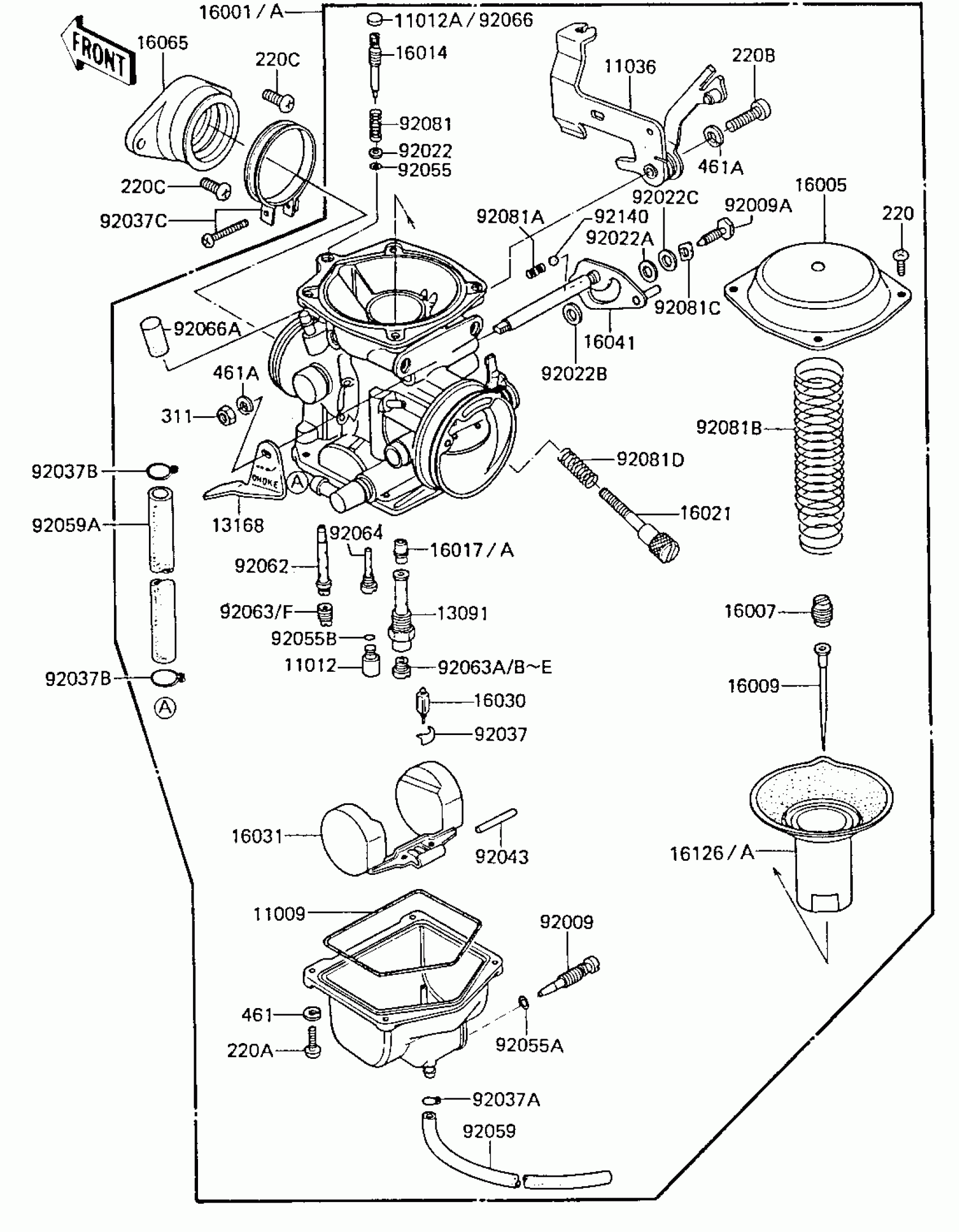

Find the part on the Carburetor diagram for your 1984 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

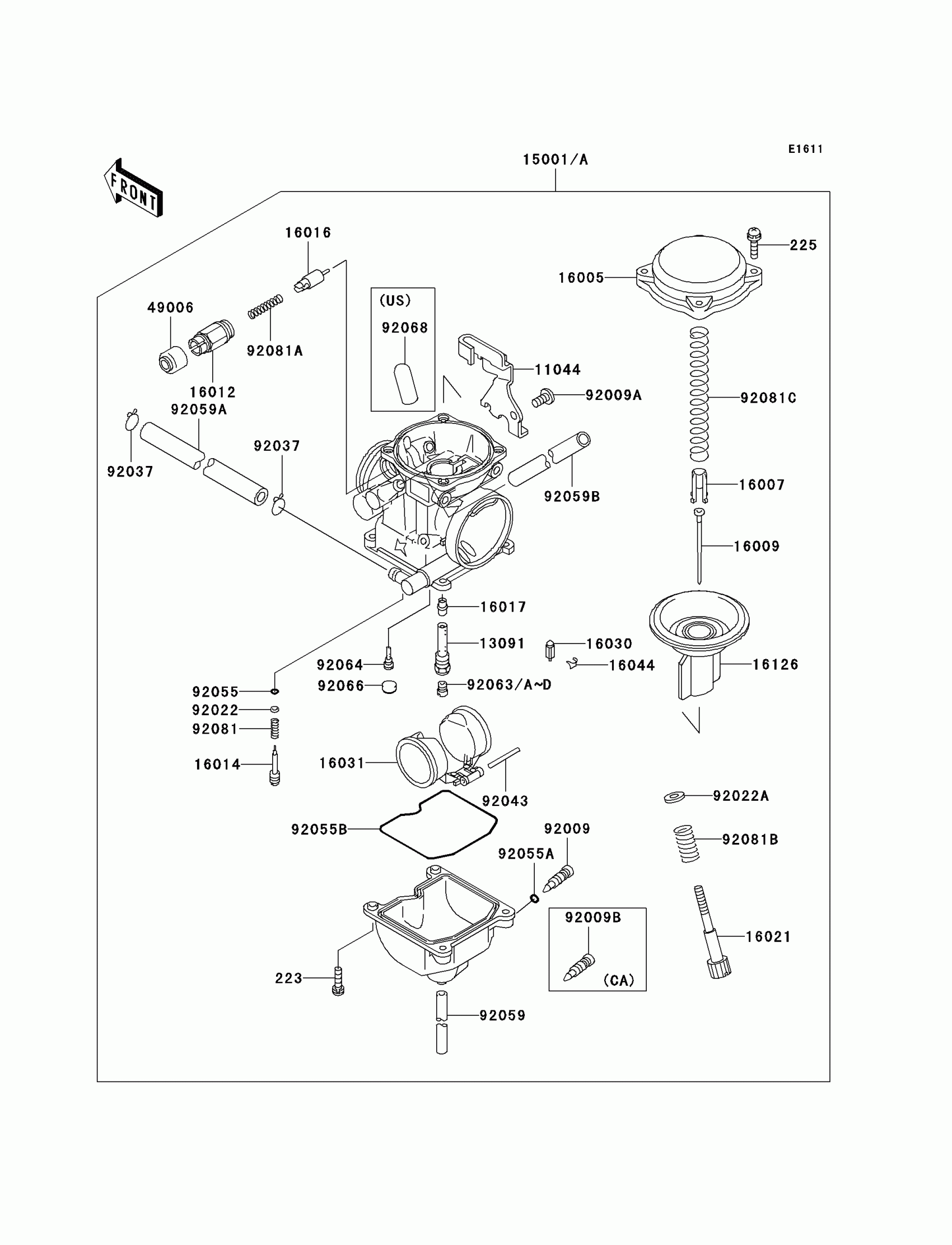

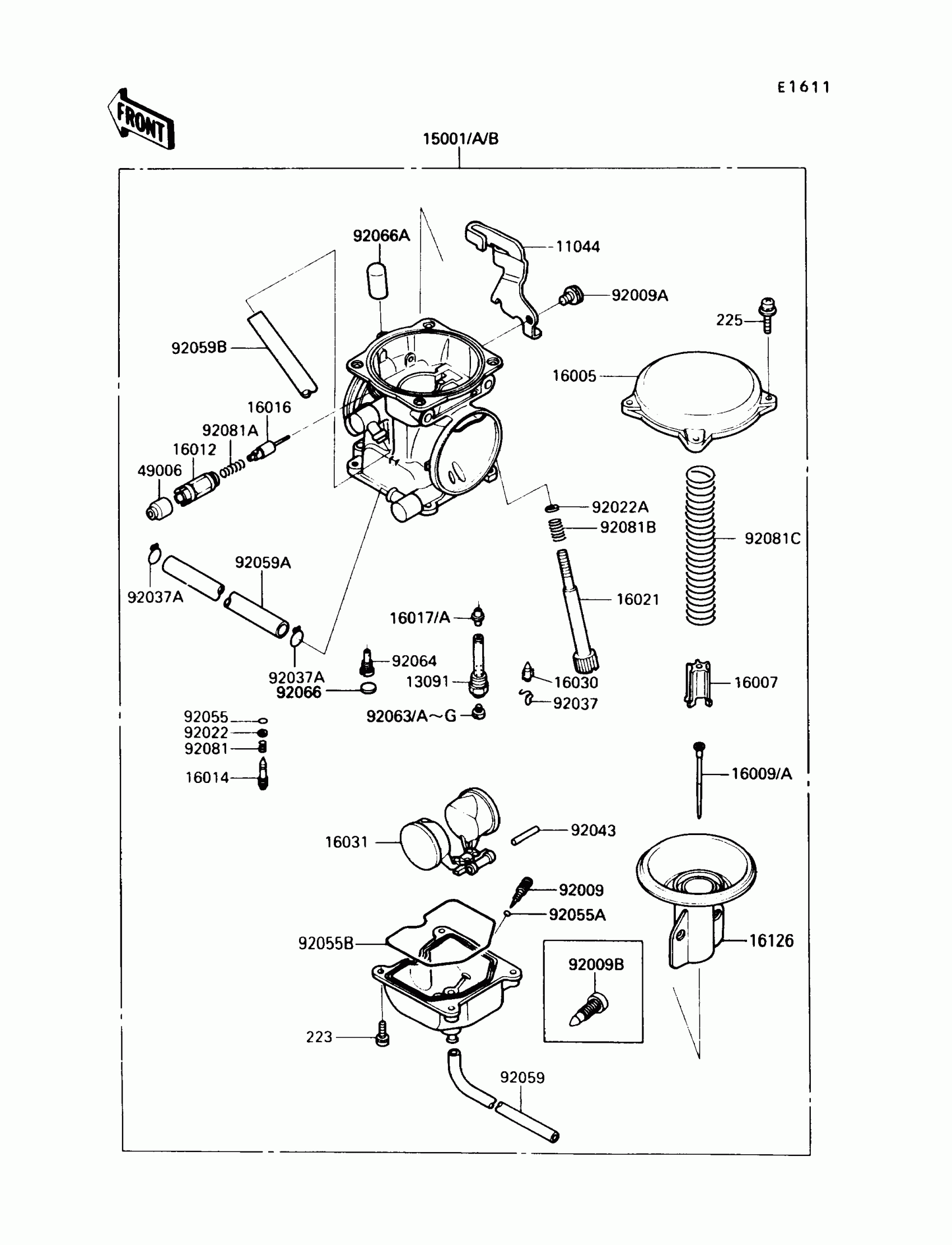

1984 Kawasaki KLR250 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

O RING,FLOAT CHAMBER

16019-024

1
Out of stock

11012

CAP,POLYESTER

11012-1128

1
Out of stock

11012A

CAP,PILOT AIR SCREW (Canada)

11012-1289

1
Out of stock

11036

BRACKET-A,THROTTLE CA

11036-1933

1
Out of stock

13091

HOLDER,NEEDLE JET,N413-02E00

13091-1050

1
Out of stock

13168

LEVER,CHOKE

13168-1065

1
Out of stock

16001

CARBURETOR (Canada)

16001-1779

1
Out of stock

16005

TOP,MIXING CHAMBER

16005-1012

1
Out of stock

16007

SCREW,NEEDLE SET

16007-1022

1
Out of stock

16009

NEEDLE-JET,NO1B

16009-1138

1
Out of stock

16014

SCREW,PILOT ADJUST

16014-1011

1
Out of stock

16017A

UNAVAILABLE IN PRICE BOOK

16017-1061

1
Out of stock

16021

SCREW,THROTTLE STOP

16021-1031

1

$10.68

In stock

16030

VALVE-FLOAT

16030-1007

1

$43.50

In stock

16031

FLOAT

16031-1001

1
Out of stock

16041

1

$52.52

In stock

16065

HOLDER-CARBURETOR

16065-1063

1
Out of stock

16126A

VALVE

16126-1057

1
Out of stock

92009

SCREW,DRAIN,M6X1.0

92009-1095

1
Out of stock

92009A

SCREW,LINK SHAFT

92009-1183

1
Out of stock

92022

WASHER,PLAIN

92022-1003

1

$3.43

In stock

92022A

1

$3.82

In stock

92022B

WASHER,6.4X9.4X0.8,PL

92022-1200

1
Out of stock

92022C

WASHER,6.5X11X1.2,STL

92022-1207

1
Out of stock

92037

CLAMP,FLOAT VALVE

16044-007

1

$6.30

In stock

92037A

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1682

1

$4.87

In stock

92037C

CLAMP,53M/M

92037-201

1
Out of stock

92043

PIN,FLOAT

92043-1002

1
Out of stock

92055

RING-O,PILOT ADJUST

92055-1002

1

$3.43

In stock

92055A

RING-O

92055-1053

1

$3.38

In stock

92055B

"O" RING

92055-1088

1

$20.07

In stock

92059

HOSE,FUEL OVERFLOW

92059-1046

1
Out of stock

92059A

TUBE,5.3X10.5X140

92059-1267

1
Out of stock

92062

NOZZLE,MAIN

92062-1001

1
Out of stock

92063A

JET-MAIN,#118

92063-1071

1

$14.02

In stock

92063B

JET-MAIN,#110

92063-1114

1

$14.02

In stock

92063C

JET-MAIN,#108

92063-1116

1

$14.02

In stock

92063D

JET-MAIN,#112

92063-1117

1

$14.02

In stock

92063E

JET-MAIN,#115

92063-1118

1

$14.02

In stock

92063F

JET-MAIN,PRI,#72

92063-1193

1
Out of stock

92064

JET-PILOT,#35

92064-1001

1

$21.39

In stock

92066A

PLUG,12X25

92068-006

1

$3.39

In stock

92081

1

$4.34

In stock

92081A

SPRING

92081-1249

1
Out of stock

92081B

SPRING

92081-1257

1

$24.56

In stock

92081C

SPRING,WAVED WASHER

92081-1262

1

$3.32

In stock

92081D

SPRING,STOP SCREW

92081-1545

1

$4.83

In stock

92140

BALL,STEEL,3/16"

92140-1004

1

$1.32

In stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

220A

1

$0.26

In stock

220B

SCREW-PAN-CROS

220B0520

1

$0.71

In stock

220C

1

$1.32

In stock

311

NUT-HEX

311B0500

1

$0.51

In stock

461

WASHER SPRING 4MM

461F0400

1
Out of stock

164A

WASHER SPRING 5MM

461F0500

1
Out of stock
