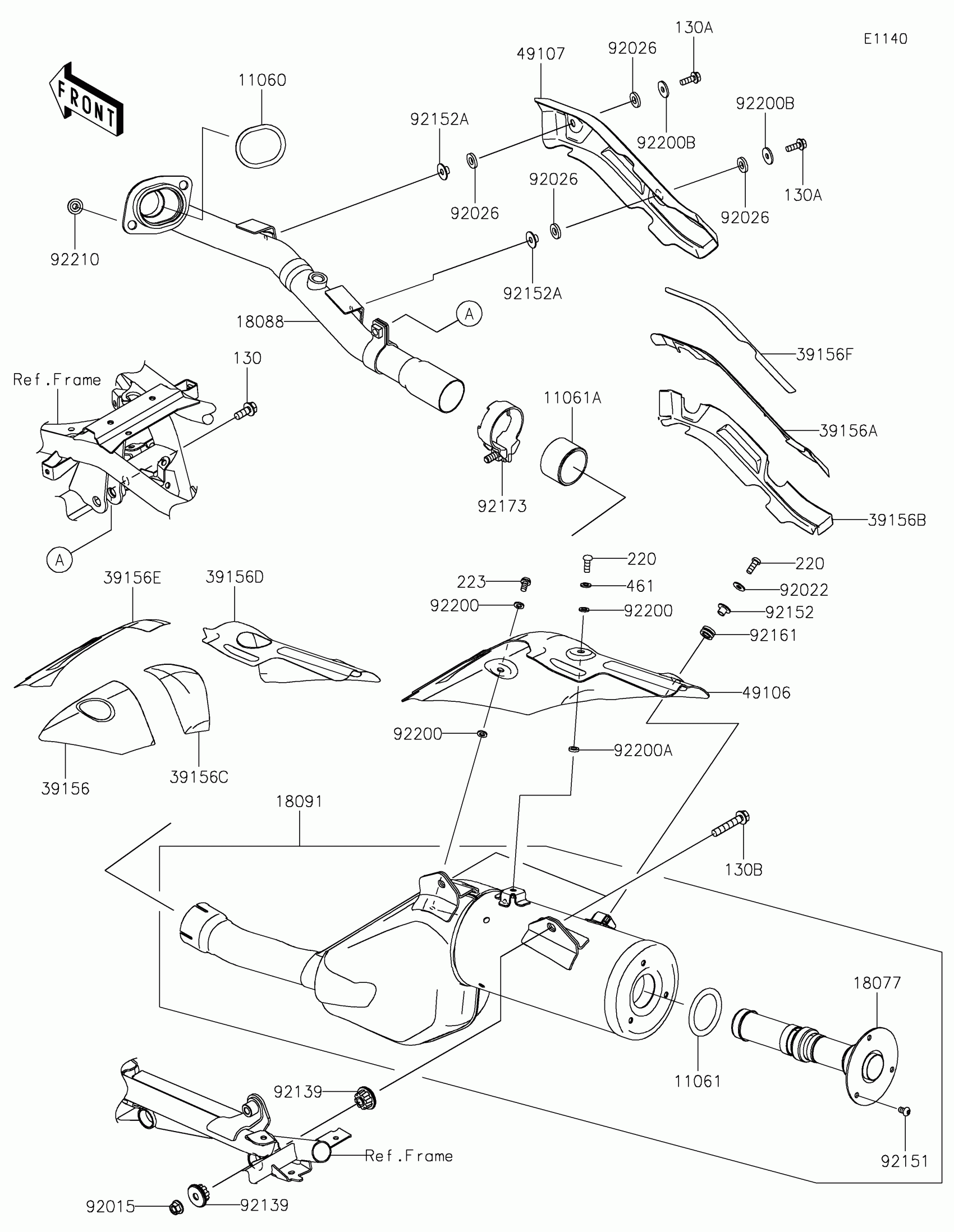

Kawasaki KLR®650 Traveler ABS Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

$7.01

11061

GASKET

11061-1345

$24.68

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1411

$30.67

18077

ARRESTER-SPARK

18077-0050

$128.61

18088

PIPE-EXHAUST

18088-1665

$367.40

18091

BODY-COMP-MUFFLER

18091-1207

$1,302.86

39156

PAD,MUFFLER COVER,FR

39156-2693

$9.92

39156A

PAD,EXHAUST PIPE COVER,CNT

39156-2698

$9.42

39156B

PAD,EXHAUST PIPE COVER,LWR

39156-2699

$10.39

39156C

PAD,MUFFLER COVER,CNT

39156-2738

$7.75

39156D

PAD,MUFFLER COVER,RR

39156-2773

$14.00

39156E

PAD,MUFFLER COVER,UPP

39156-2774

$10.63

39156F

PAD,EXHAUST PIPE COVER,UPP

39156-2798

$5.27

49106

COVER-MUFFLER

49106-0857

$236.23

49107

COVER-EXHAUST PIPE

49107-0849

$162.25

92015

NUT,8MM

92015-1402

$3.57

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92026

SPACER,8.7X18X3

92026-0919

$1.82

92139

BUSHING

92139-1116

$61.46

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92152

COLLAR

92152-2837

$0.69

92152A

COLLAR

92152-2862

Unavailable

92161

DAMPER

92161-2434

$3.68

92173

CLAMP

92173-2463

$19.15

92200

WASHER,6.2X11.5X1.5

92200-2496

$0.69

92200A

WASHER,6.2X11.5X2.5

92200-2511

$1.22

92200B

WASHER,6.5X20X2

92200-2529

$1.36

92210

NUT,8MM

92210-1114

$1.76

130

BOLT-FLANGED,8X20

130BD0820

$2.29

130A

BOLT-FLANGED,6X18

130CB0618

Unavailable

130B

BOLT-FLANGED

130CC0845

$3.15

220

SCREW-PAN-CROS,6X16

220AB0616

$3.97

223

SCREW-PAN-WS-CROS,6X12

223AB0612

$3.69

461

WASHER-SPRING,6MM

461DB0600

$0.57
