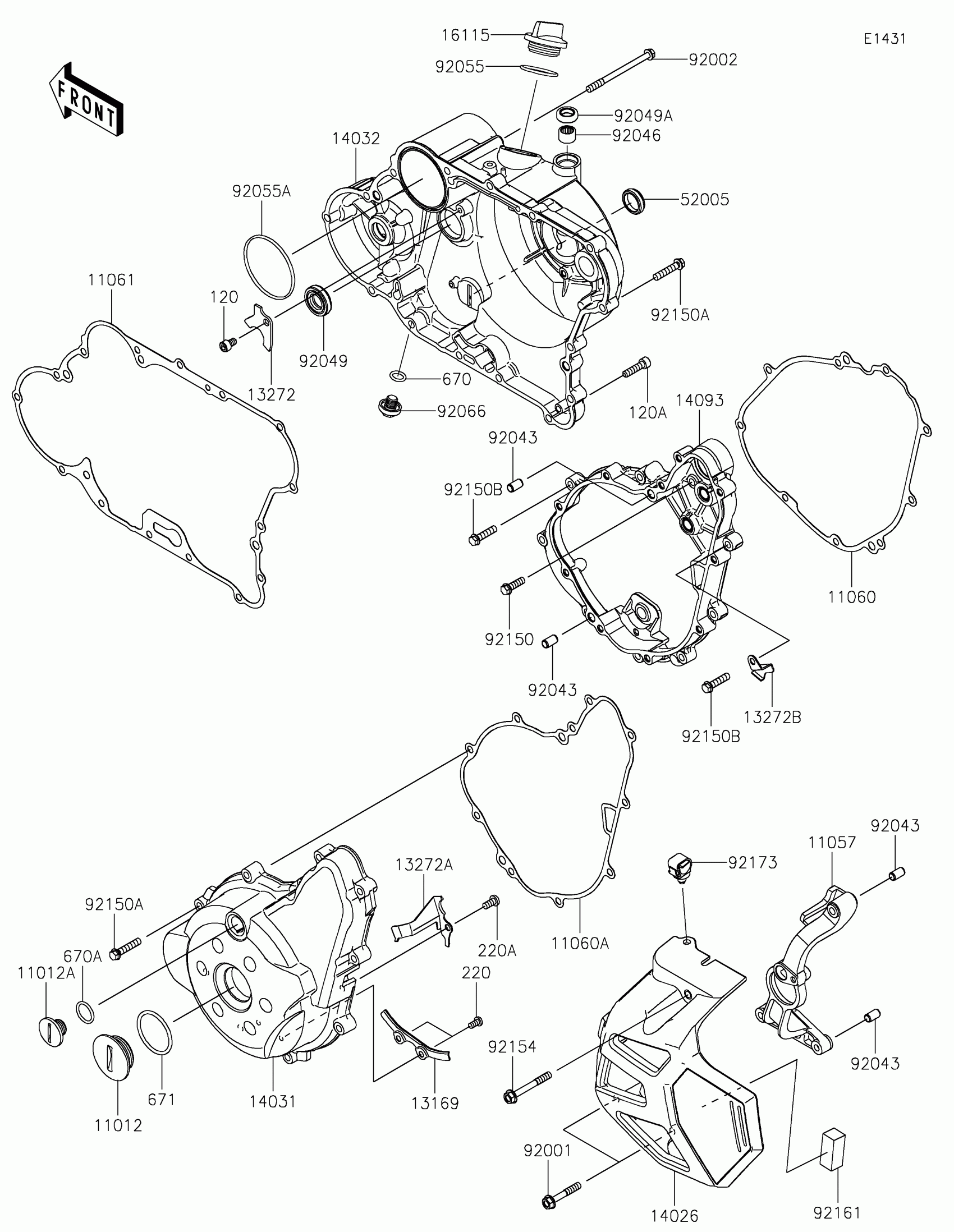

Kawasaki KLR®650 Traveler ABS Engine Cover(s) Diagram

#

Description
Price

11012

CAP

11012-1362

$6.70

11012A

CAP,TOP MARK

11012-1363

$4.88

11057

BRACKET,SPEED SENSOR

11057-4312

$69.26

11060

GASKET,GENERATOR CASE COVER

11060-1692

$21.83

11060A

GASKET,GENERATOR COVER

11060-1693

$21.83

11061

GASKET,CLUTCH COVER

11061-0429

$12.06

13169

PLATE,PULSING COIL LEAD

13169-1882

$8.63

13272

PLATE,OIL SEAL

13272-0863

$7.81

13272A

PLATE,GENERATOR

13272-0869

$10.22

13272B

PLATE,GENERATOR

13272-3871

$2.12

14026

COVER-CHAIN

14026-0153

$64.79

14031

COVER-GENERATOR

14031-0126

$330.94

14032

COVER-CLUTCH

14032-0674

$361.31

14093

COVER,GENERATOR CASE

14093-1080

$277.17

16115

CAP-OIL FILLER

16115-1068

$4.33

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92001

BOLT,6X38

92001-1899

$3.92

92002

BOLT,FLANGED,6X80

92002-1568

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$20.47

92049A

SEAL-OIL

92049-1560

$7.08

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,62.6X66X3.1

92055-1221

$6.75

92066

PLUG,DRAIN

92066-1156

$8.93

92150

BOLT,6X20

92150-1010

Unavailable

92150A

BOLT,6X30

92150-1021

Unavailable

92150B

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92154

BOLT,FLANGED,6X50

92154-4222

$2.12

92161

DAMPER,15X35X15

92161-2359

$1.39

92173

CLAMP,12MM DIA.

92173-0736

$3.85

120

BOLT-SOCKET,6X10

120CA0610

$1.27

120A

BOLT-SOCKET,6X25

120CB0625

$1.81

220

SCREW-PAN-CROS,5X10

220AA0510

$0.65

220A

SCREW-PAN-CROS,6X12

220AA0612

$0.95

670

O RING,11MM

670B2011

$0.98

670A

O RING,18MM

670B2018

$1.08

671

O RING,40MM

671B2540

$4.67
