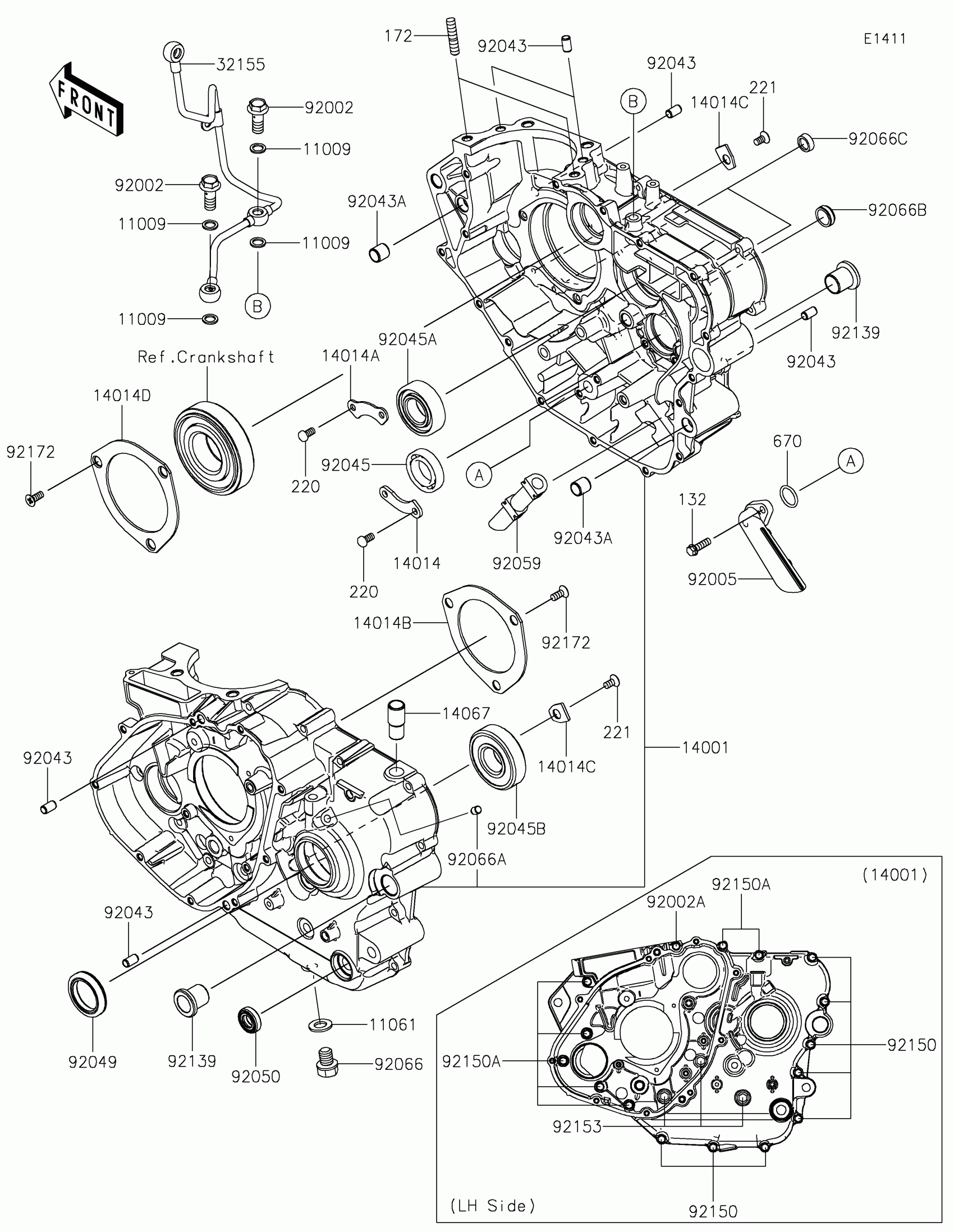

Kawasaki KLR®650 Traveler ABS Crankcase Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11061

GASKET,12X22X2

11061-0417

$2.20

14001

SET-CRANKCASE

14001-0730

$1,020.09

14014

PLATE-POSITION

14014-0045

$8.12

14014A

PLATE-POSITION

14014-0562

$5.25

14014B

PLATE-POSITION

14014-1051

$36.42

14014C

PLATE-POSITION

14014-1057

$4.17

14014D

PLATE-POSITION

14014-1083

$36.42

14067

FITTING,BREATHER

14067-006

$19.78

32155

PIPE,CRANKCASE-HEAD

32155-4450

$103.26

92002

BOLT,BANJO,10X25

92002-1170

$9.22

92002A

BOLT,FLANGED,6X60

92002-1567

Unavailable

92005

FITTING

92005-1152

$29.14

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,11.5X14X14

92043-1279

$3.81

92045

BEARING-BALL,#6905

92045-036

$22.57

92045A

BEARING-BALL,TMB205

92045-1105

$24.68

92045B

BEARING-BALL,TM-SX0597LU

92045-1127

$44.18

92049

SEAL-OIL,32X45X7.5

92049-0825

$17.85

92050

SEAL-OIL

92050-082

$6.55

92059

TUBE,BREATHER

92059-1833

$13.54

92066

PLUG,OIL DRAIN,12X15

92066-0767

$5.15

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066B

PLUG,RCA207

92066-1264

$7.88

92066C

PLUG

92066-1282

$5.66

92139

BUSHING

92139-1117

$16.97

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X50

92150-1968

$3.71

92153

BOLT,FLANGED-SMALL,8X80

92153-1323

$3.51

92172

SCREW,6X15

92172-0144

$1.69

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

172

BOLT-STUD,8X22

172BA0822

$1.58

220

SCREW-PAN-CROS,6X12

220AA0612

$0.95

221

SCREW-CSK-CROS,6X12

221AA0612

$1.49

670

O RING,18MM

670D2018

$1.39
