Description

Price

11012

CAP

11012-1369

$4.14

12046

SPROCKET,BALANCER,18T

12046-1165

$96.20

12053

GUIDE-CHAIN,RR

12053-1111

$35.47

12053A

GUIDE-CHAIN,FR

12053-1175

$52.02

13041

BALANCER,RR

13041-0032

$143.23

13041A

BALANCER,FR,RH

13041-0034

$107.42

13107

SHAFT,BALANCER,RR

13107-1104

$80.08

13164

BALANCER-COMP,FR,LH

13164-0002

$161.22

13168

LEVER,IDLER SHAFT

13168-0184

$42.82

13168A

LEVER

13168-0911

$4.08

13234

SHAFT-COMP,BALANCER,FR

13234-0035

$138.98

39115

SHAFT-IDLER

39115-0022

$66.05

39133

SPROCKET-IDLER,IDLER

39133-1060

$97.00

92015

NUT,16MM

92015-1477

$7.93

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022A

WASHER,20.3X36X1.5

92022-1489

$5.42

92022B

WASHER,20.2X36X2

92022-1880

$7.25

92026

SPACER,12.2X27X2.3

92026-0151

$10.73

92026A

SPACER,20.2X36X3

92026-0155

$11.76

92026B

SPACER,20.2X30X5

92026-1245

$14.36

92045

BEARING-BALL,20X47X14

92045-0070

$25.86

92045A

BEARING-BALL

92045-0071

$25.86

92045B

BEARING-BALL,20X42X12

92045-0072

$11.19

92046

BEARING-NEEDLE

92046-0640

$16.68

92057

CHAIN,BALANCER,BF06HX70L

92057-1158

$339.85

92145

SPRING

92145-0529

$5.80

92154

BOLT,FLANGED,6X16

92154-1428

$1.32

92154A

BOLT,IDLER LEVER

92154-4358

$59.81

92200

WASHER

92200-0558

$5.46

92200A

WASHER,6.5X12X2.0

92200-1263

$2.66

130

BOLT-FLANGED,8X20

130CA0820

$1.27

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.12

670

O RING,7MM

670B1507

$0.98

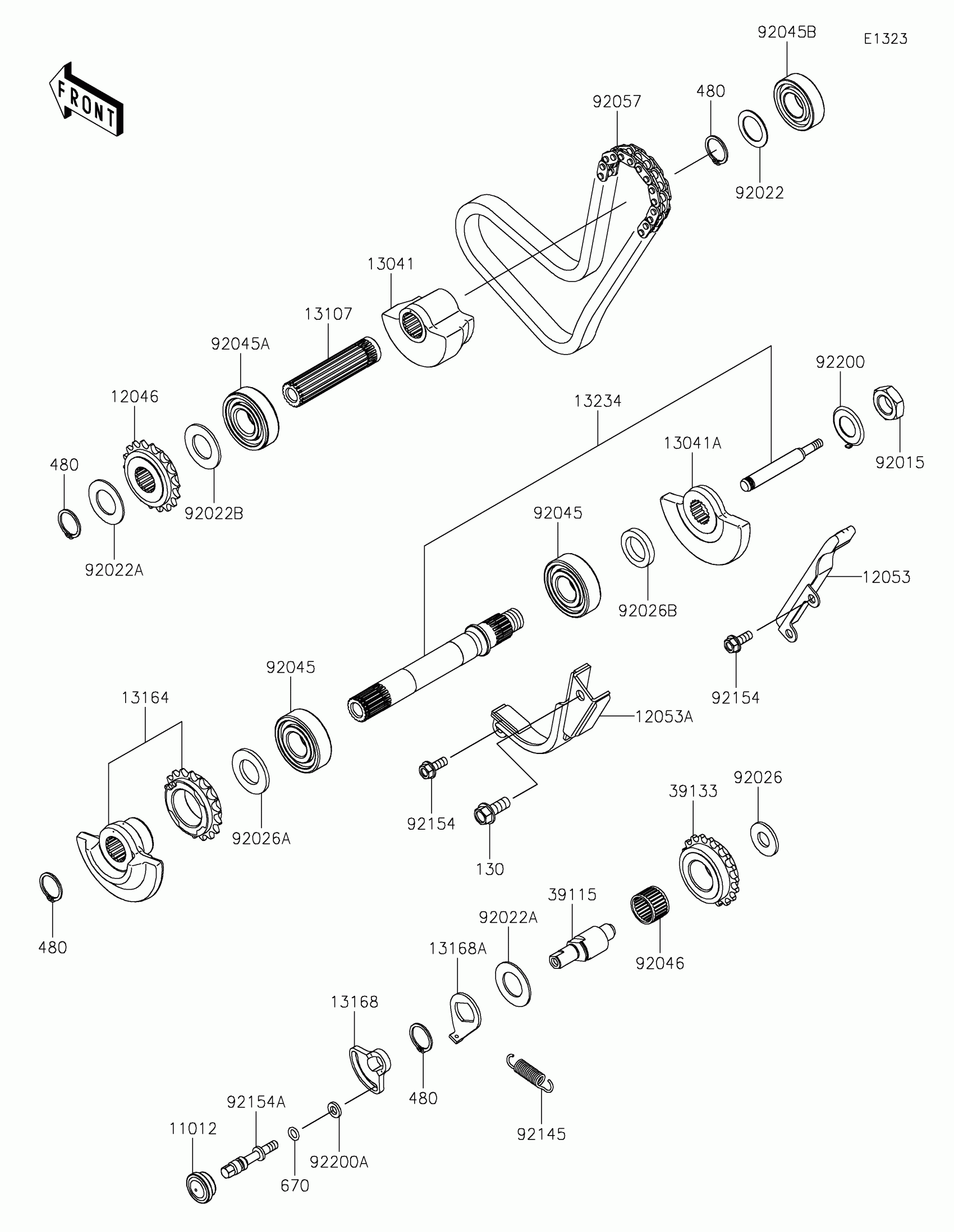

Kawasaki KLR®650 Traveler ABS Balancer Diagram

CAP
